Mini Soldering Iron Deluxe Kit

  • үнэ: 380,000 төг

          Mini Soldering Iron is a small, lightweight and rapid-heating (cold to 300℃ in 10 second) soldering iron with an OLED screen, which is perfect for kit building and other soldering applications.

This Mini Soldering Iron is programmable and the temperature can be controlled accurately from 100℃ to 400℃. Benefiting from the dual temperature and accelerator sensors, the soldering iron is equipped with the following two features to ensure users’ safety: sleeping mode and over-heating notification.

The iron tip is replaceable and we include 2 types of iron tips in this package.


Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron
Programmable system with free firmware upgrade, you could either programme the temperate range or create you very own boot logo.
(The gesture temperature adjust mode will be coming soon)
Easy temperature control from 100℃ to 400℃.
Press Button A and B to heat up or cool the temperature down
We provide two types of iron tips “BC2” and “B2” to let you have more choices building your projects
Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron
Dual temperature and accelerator sensors enable your to have a better safety and smart control Small and lightweight enough allows users to easily bring it with them One package includes all the add-ons needed to use the Mini Soldering Iron for developing your projects


Screen OLED
USB Port Micro USB
Power Port DC5525
Operating Part Dimensions Length: 96mm, Diameter: 16.5mm
Heating Part Dimensions Length: 33mm, Diameter: 5.5mm
Weight 33g (power adaptor not included)
Power 65W
Adjustable Temperature Range 100℃ – 400℃
Temperature Stability ±2%
Voltage Input 100V-240V

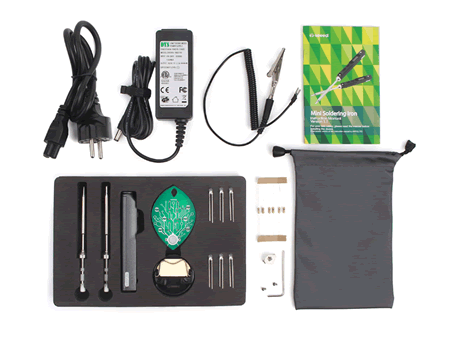

Part list

Mini Soldering Iron Deluxe Kit (US Standard)

  • – Mini Soldering Iron Operating Part x 1
  • – PCB soldering kit
  • – Soldering Iron Tip Type-BC2 x 1
  • – Earth Clamps x 1
  • – Soldering Tron Tip Type-B2 x 1
  • – User Manual x1
  • – Soldering Iron Stand x 1
  • – Small Carrying Bag x1
  • – DC5525 Power Adapter x 1

Technical Details

Dimensions 200mm x 130mm x 70mm
Weight G.W 507g
Battery Exclude

Part List

Mini Soldering Iron Operating Part 1
PCB soldering kit 1
Soldering Iron Tip Type-BC2 1
Earth Clamps 1
Soldering Tron Tip Type-B2 1
User Manual 1
Soldering Iron Stand 1
Small Carrying Bag 1
DC5525 Power Adapter 1
