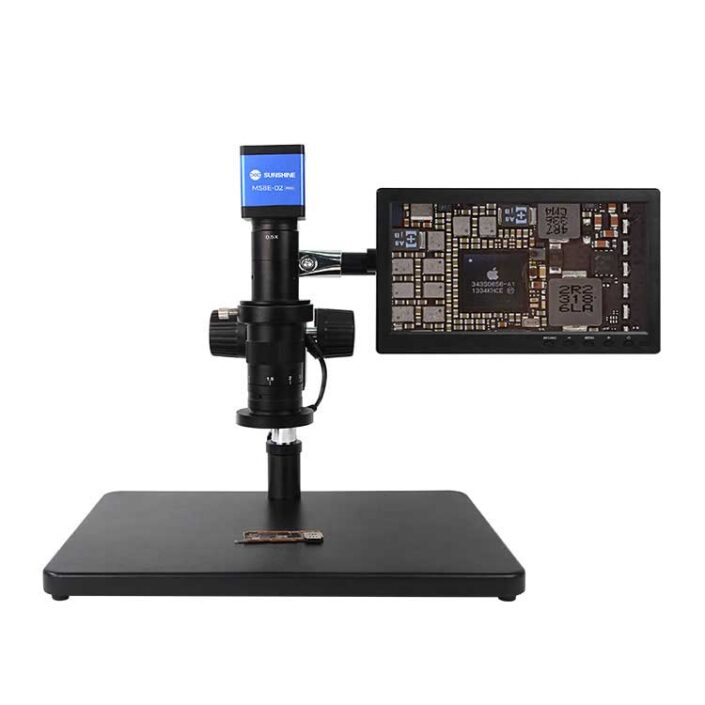

Электрон микроскоп MS8E-01

ELECTRON MICROSCOPE MS8E-01

- 8-inch digital screen

- Display images with true colors and quality

- 2 megapixel camera with 8 to 100x magnification

- Display the image without delay

- Manual zoom It has a continuous zoom and displays the smallest mobile parts

- Working distance 5.5 to 13.5 cm

- Output with BNC port

- No HDMI and VGA output

Model	MS8E-01
Image Sensor	1/3″1000 color camera(which corresponds to 100 pixels)
Digital	magnification 8-100x
Zoom ratio	0.12-2x
Working distance	55-135mm
Field object side	2.4mm-3mm(relative to camera chip size)
Hand wheel focusing range	40mm
Port size of mirror bracket	φ41.5mm to φ20mm
Pillar center distance	130mm
Up and down adjustment range	250mm(φ25mm pillar)
