Хэт улаан гэрлийн термометр UT305C+ (-50~+2200C)

үнэ: 1,200,000 төг

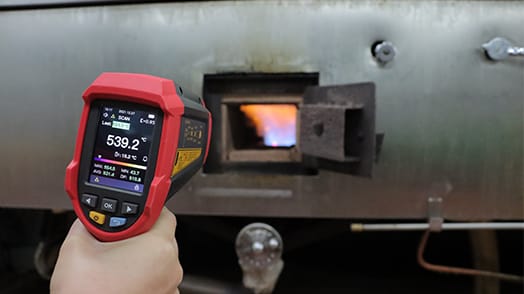

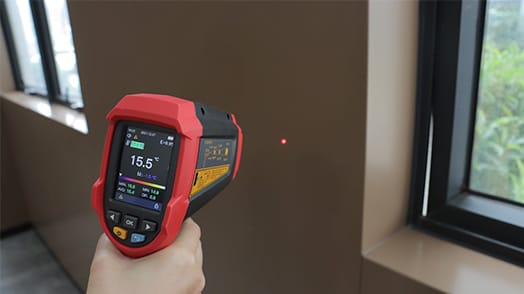

The UT305+ series is a high-precision, high-distance ratio (55:1), wide temperature range (-50°C~ 2200°C) non-contact infrared thermometer. It can detect the thermal insulation performance of various types of equipment, and is suitable for furnace kilns, heat transfer pipes, building thermal bridge effect, cold storage, greenhouses, floor heating and other fields.

Features of UT305+ Series Infrared Thermometers

Certificates: CE, UKCA

● Infrared professional mode

● Surface heat conduction detection mode

● Surface dew point detection mode

● Surface temperature comparison mode

● High resolution TFT color LCD

● Trigger lock function，Reservation measurement

● 999 groups of data storage, data output support PDF, CSV format

● High precision display of ambient temperature, relative humidity, dew point temperature and wet bulb temperature

● Type K thermocouple temperature measurement

Specifications		UT305C+
Measurement range	Infrared temperature measurement	-50°C~2200°C (-58.0℉～3992℉)
	The environment temperature measurement	-10°C~50°C (14℉～122℉)
	Relative humidity	10%RH~90%RH
	Type K thermocouple	-50°C~1370°C (-58.0℉～2498℉)
Accuracy	Infrared temperature measurement	-50°C~0°C, ±(1.0℃+0.1℃/℃) -58℉~32℉, ±(2.0℉+0.1℉/℉) 0°C~2200°C, ±1.0℃ or ±0.01×t℃ (Which is greater) 32℉~3992℉, ±2.0℉ or ±0.01×t℉ (Which is greater)
	The environment temperature measurement	-10°C~0°C (14℉~32℉), ±1.0°C (±2.0℉) 0°C~40°C (32℉~104℉), ±0.5℃ (±1.0℉) 40°C~50°C (104℉~122℉), ±1.0℃ (±2.0℉ )
	Relative humidity	±5%RH
	Type K thermocouple	±(0.005×t+1.5)℃, ±(0.005×t+3.0)℉
Certification	CE UKCA
Diastance ratio（D:S)	55:1
Emissivity	0.1~1.0 (adjustable)
Spectral response	8µm~14µm
Repeatability of infrared temperature measurement	±0.005×t℃（℉）or 1℃（2℉）（Which is greater）
Display resolution	0.1℃（0.1℉）
Unit conversion	℃ / ℉
Laser point	Single laser, output < 1 mW, class II
Data storage	999 groups
Data output format	PDF、CSV
Data communication or charging interface	Type-C USB
Battery	Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
Charging time	No more than 3 hours
Continuous working time	Work continuously for no less than 20 hours on full charge
Buzzer alarm	√
Trigger lock function and reservation measurement	√
Real time, date	√
LCD type	2.4 inch TFT LCD 320 * 240 pixels
temperature coefficient	±0.1℃/℃ or ±0.1%℃/℃, ±0.1℉/℉ or ±0.1%℉/℉（Which is greater）
Work at an altitude of	No more than 2000 meters
Drop test	1m
Standard k-type thermocouple probe (bead type)

Measurement range	-40°C to 260°C (-40°F to 500°F)
Accuracy	0.075× T (t is measured temperature)
Lenth	1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector and bead probe
General Characteristics
Power	Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
LCD screen size	37mm x 49mm
Product color	red and gray
Net weight	375 g
Product size	205 x 65 x 124 mm
Standard accessories	Type-C data cable, Type K thermocouple probe (bead Type)
