Багаж хэрэгсэл > Хэмжих хэрэгсэл > Амперклещ > AC амперклещ FLUKE 301A

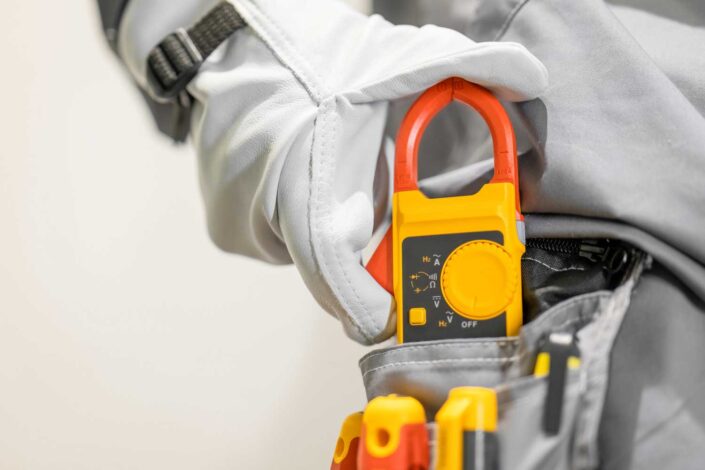

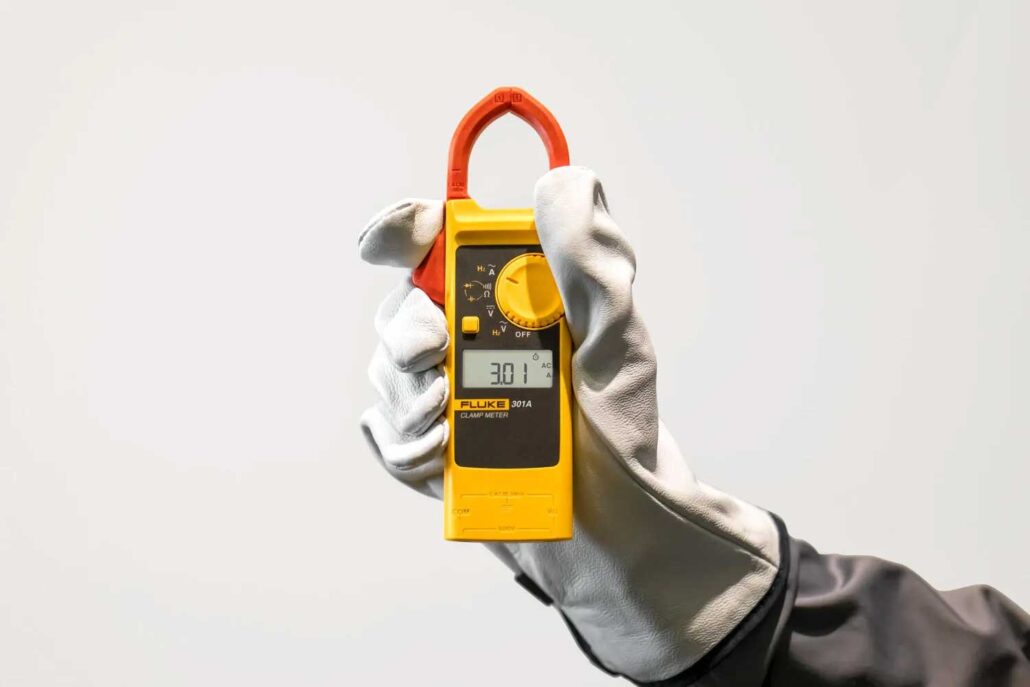

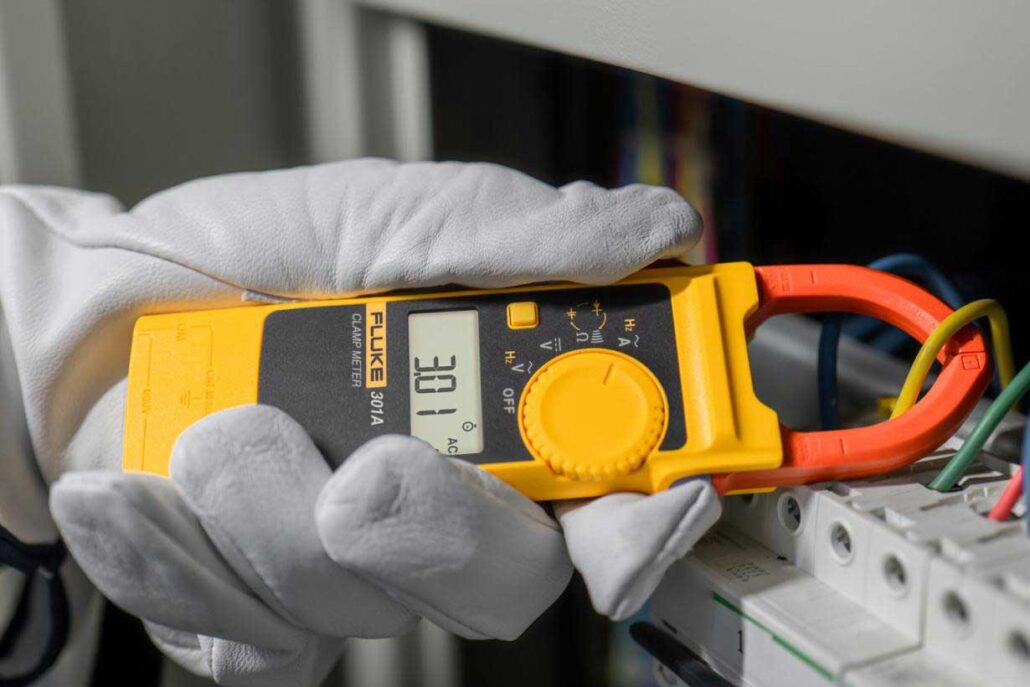

AC амперклещ FLUKE 301A

үнэ: 320,000 төг

Key features

- The body weighs only 132g and is 16mm thick, which is light and portable and can be fitted into a pocket
- The slim and thin jaw of only 10mm can easily clamp onto tightly packed wires
- 400A AC range, 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes

Specifications
Accuracy is specified for 1 year after calibration, with operating temperatures from 18 °C to 28 °C and relative humidity from 0 % to 75 %. Accuracy specifications take the form of:±([% of Reading] + [Number of Least Significant Digits]).

Models		301A/301A+
AC Current (45 to 400 Hz)	Range	40.00 A	400.0 A
	Resolution	0.01 A	0.1 A
	Accuracy	2 % + 10	2 % + 5
AC Voltage (45 to 400 Hz)	Range	600.0 V
	Resolution	0.1 V
	Accuracy	1.5% + 5
DC Voltage	Range	600.0 V
	Resolution	0.1 V
	Accuracy	1% + 5
Resistance	Range	600.0 Ω 6.000 kΩ 60.00 kΩ
	Accuracy	1% + 5
Voltage Frequency	Range	9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz
	Accuracy	0.1% + 3
Current Frequency	Range	45.0 to 400.0 Hz
	Accuracy	0.1% + 3
Capacitance	Range	9.999 uF	99.99 uF 999.9 uF
	Accuracy	2 % + 5	5% + 5
Diode	Range	3.000 V
	Accuracy	10%
T-rms Value		–
Continuity		●
Hold		●
Backlight		–
Safety rating		CAT III 300V
Weight		132 g
Size		190 mm x 52 mm x 16 mm
Jaw Opening		34 mm
Clamp Arm Size		10 mm X 10 mm
Battery		(2) AAA Batteries
Warranty		1 year

General Specifications
Maximum Voltage between any Terminal and Earth Ground	300 V
Maximum Differential Voltage between V/Ω and COM Terminals	600 V
Display (LCD)	6000 counts, updates 3 times per second
Battery Type	2 AAA, IEC LR03
Battery Life	500 hours minimum
Auto Power Off Time	20 minutes
Temperature	Operating: -10 °C to 50 °C；
Temperature	Storage: -30 °C to 60 °C
Relative Humidity	Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C;
Altitude	Operating: 2000 m; Storage: 12000 m
Temperature Coefficient	0.1 x (specified accuracy) /°C (<18 °C or>28 °C)
Dimensions (H x W x L)	190 mm x 52 mm x 16 mm
Weight	132 g
Jaw Opening	34 mm
Ingress Protection Rating	IP30
Safety	IEC 61010–1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2
Electromagnetic Environment	IEC 61326–1: Portable
