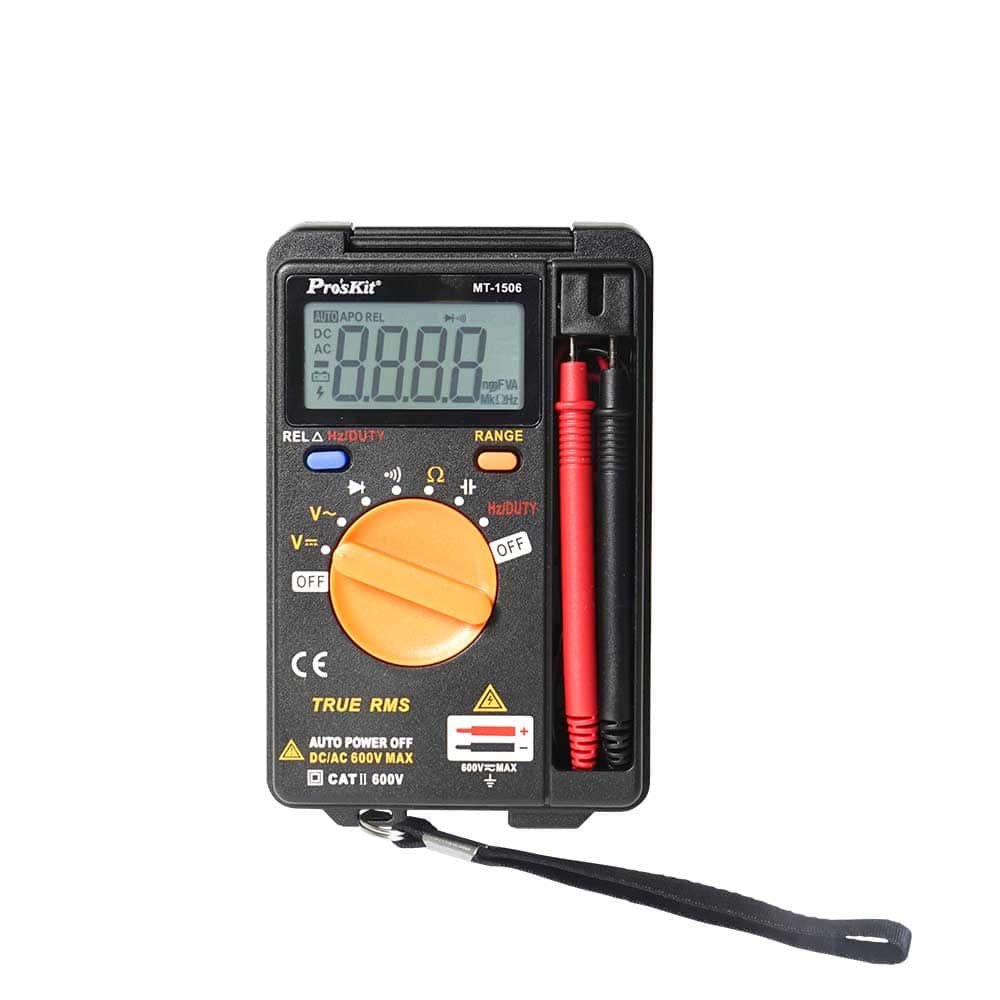

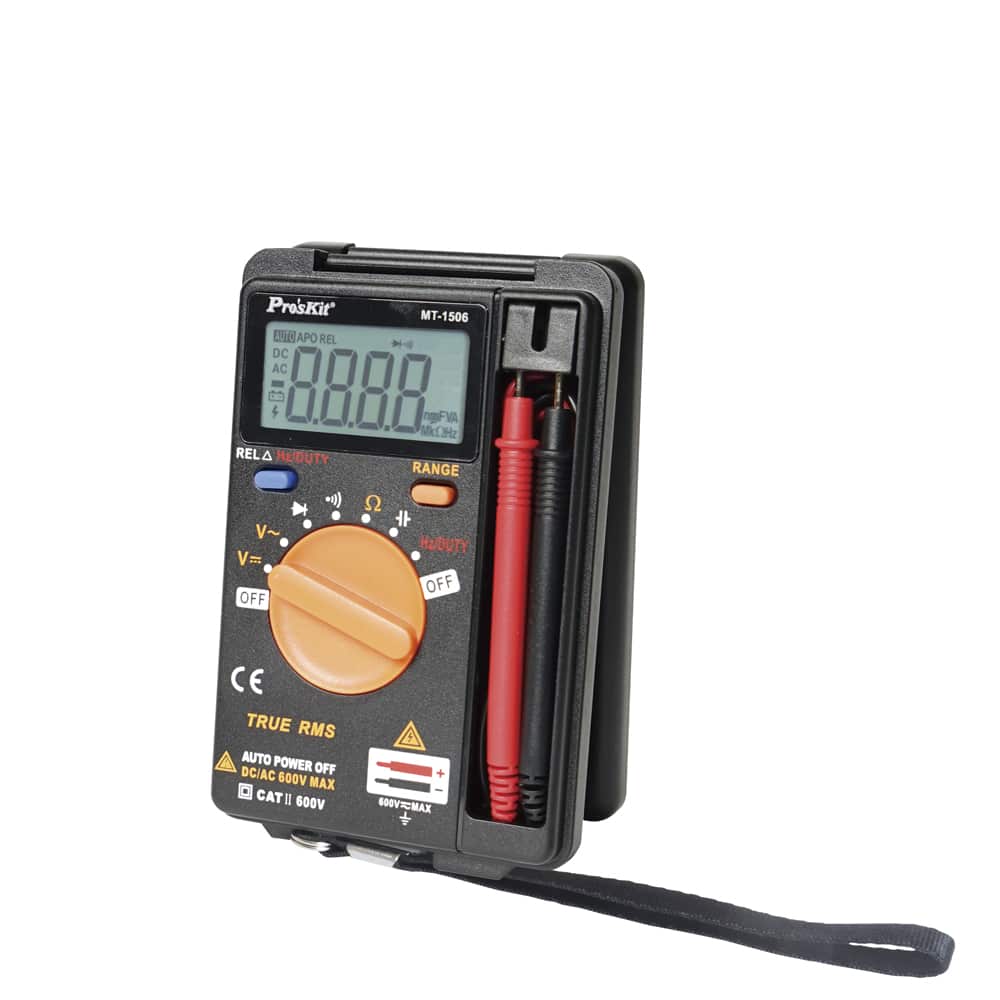

MT-1506 халаасны мультиметр

  • үнэ: 52,000 төг

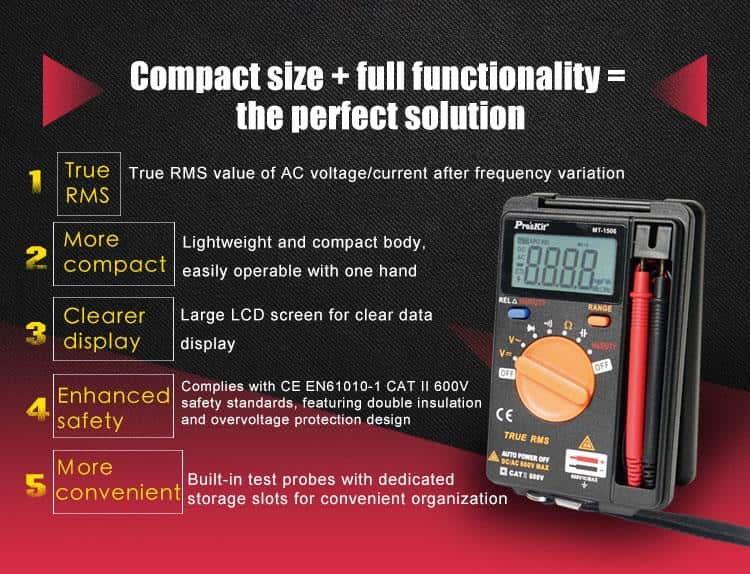

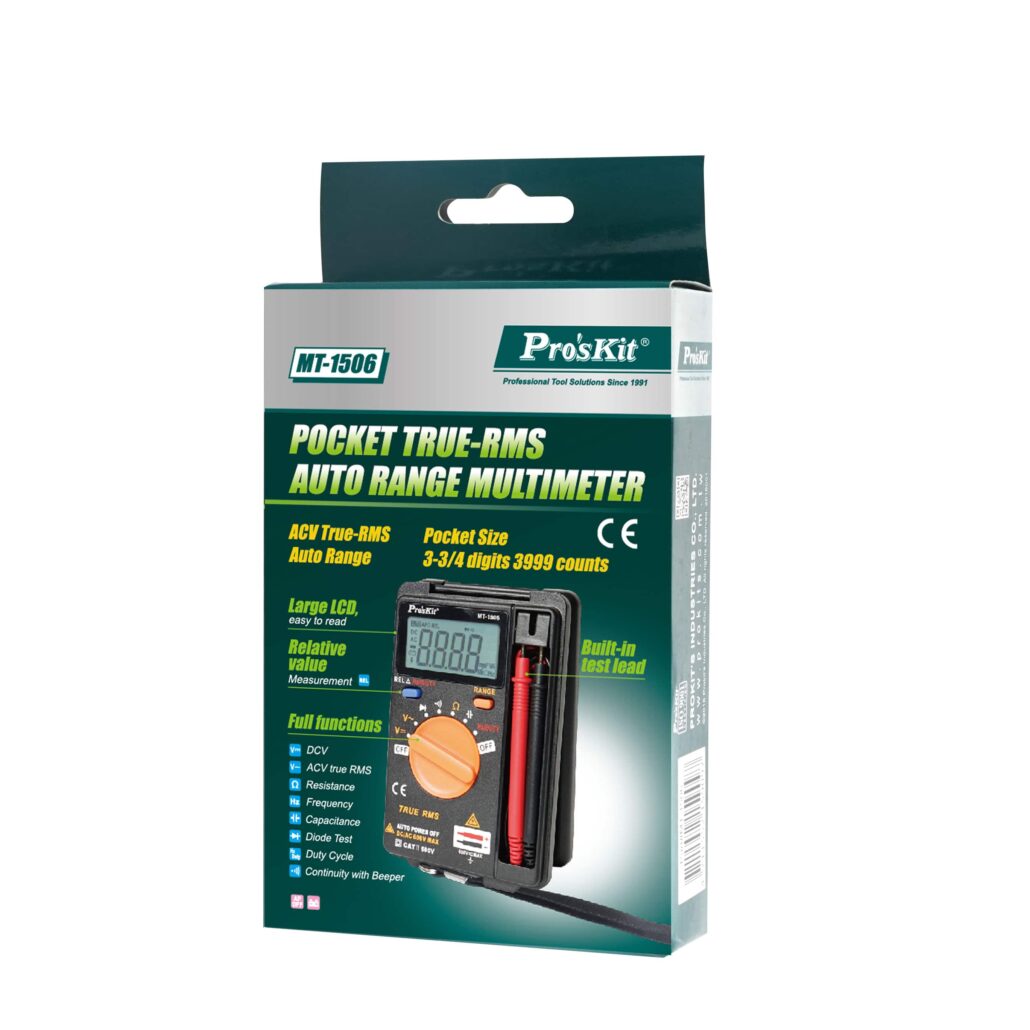

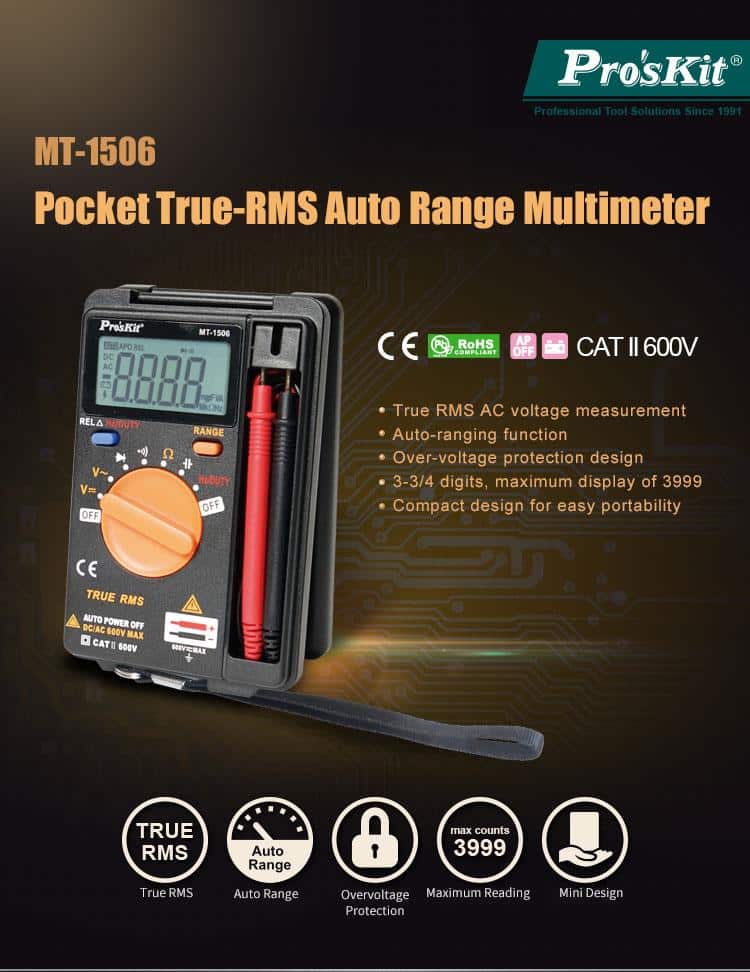

MT-1506 POCKET TRUE-RMS AUTO RANGE MULTIMETER

  • - Comply with CE EN61010-1 CATII 600V Safety rated.
  • - 3-3/4 digits 3999 counts.
  • - 0.5% best accuracy.
  • - Both auto and manual range provide accurate measurement.

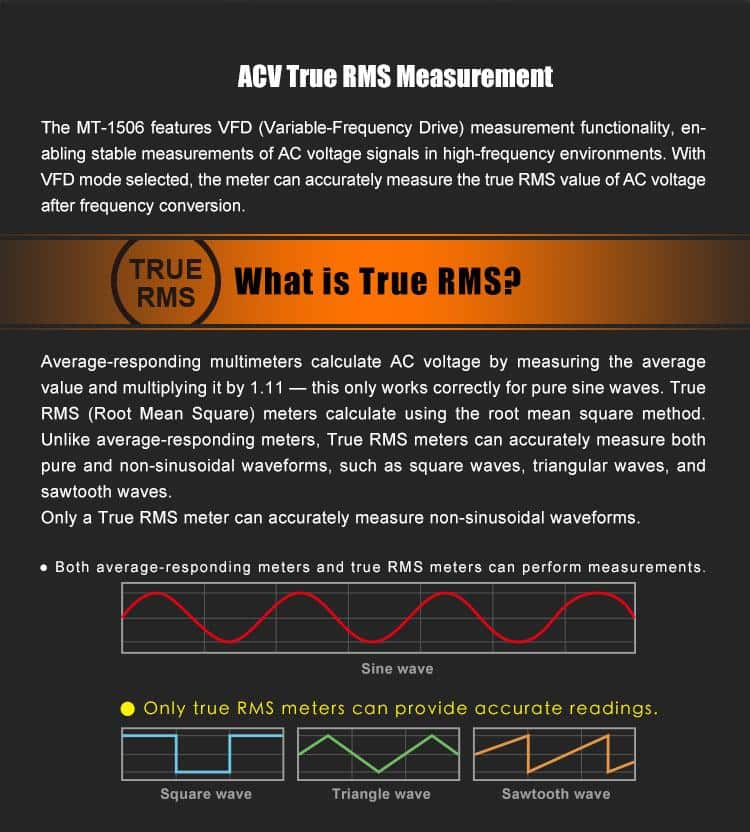

  • - ACV True RMS measurement
  • - Overload protection circuit design
  • - Auto power off for energy saving

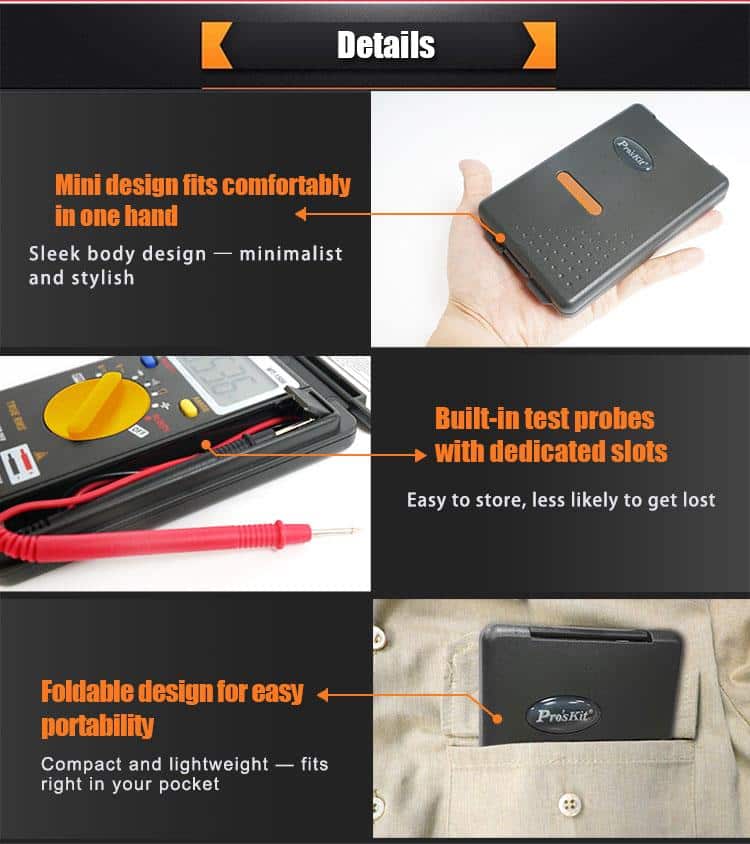

  • - Pocket size design for easy carrying.
  • - Now Built-in test lead

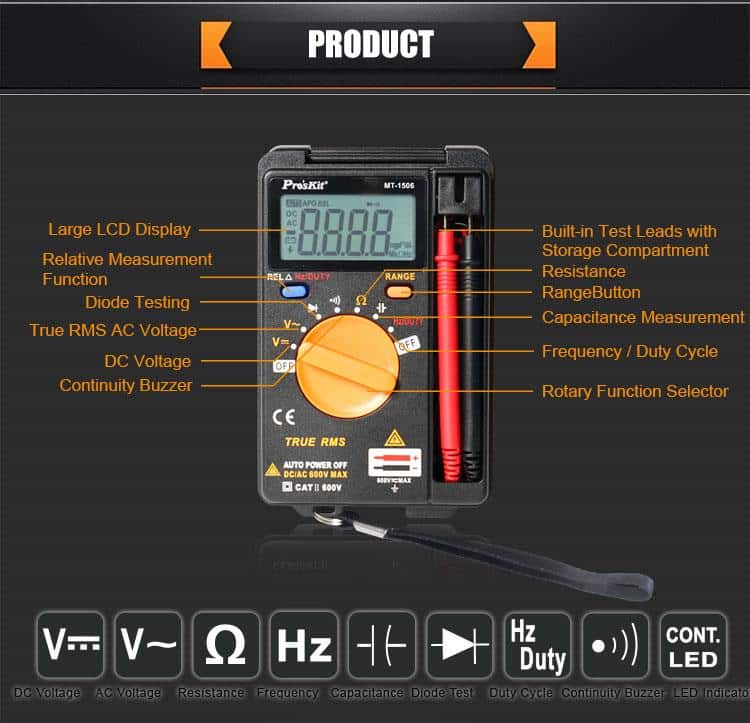

  • - Extra function: Continuity with beeper, Hz/Duty
  • - Auto power off, low batter indication.



Specifications MT-1506
DCV 400mV,4/40/400V ±(0.5%+4d), 600V ±(1%+4d)
ACV 400mV±(1.5%+6d),
4/40/400V ±(0.8%+6d), 600V ±(1.0%+6d)
Resistance 400Ω ±(0.8%+5d)
4k/40k/400k/4MΩ ±(0.8%+4d), 40MΩ ±(1.2%+5d)
Frequency 100/1000Hz/10k/100k/1MHz/10MHz ±(0.5%+4d)
Capacitance 4nF ±(5%+40d),
40n/400n/4μ/40μ ±(3.5%+8d),
2000μF ±(5%+8d)
Duty cycle 0.1~99.9% ±(0.5%+4d)
Continuity with beeper 50 ±30Ω
Diode test Range: 0 ~ 1.5V Resolution: 1mV
Power source 2 x 1.5V AAA battery (Not included)
Size 124 × 80 × 20 mm

Гарын авлага үзэх
