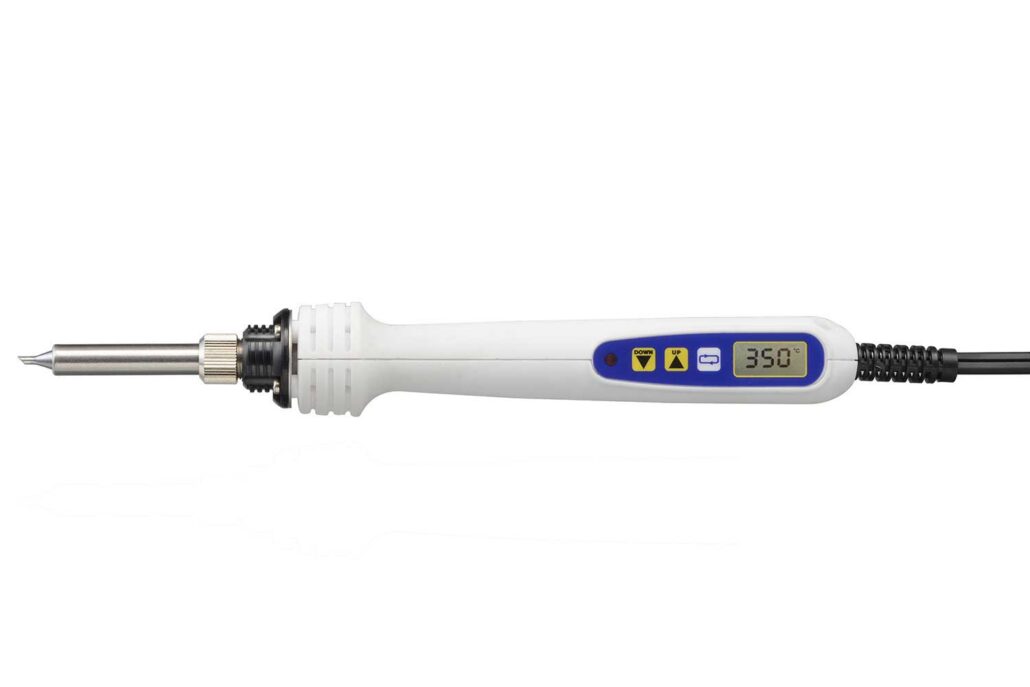

PX-280E(SB) GP тохируулгатай гагнуурын алх

үнэ: 280,000 төг

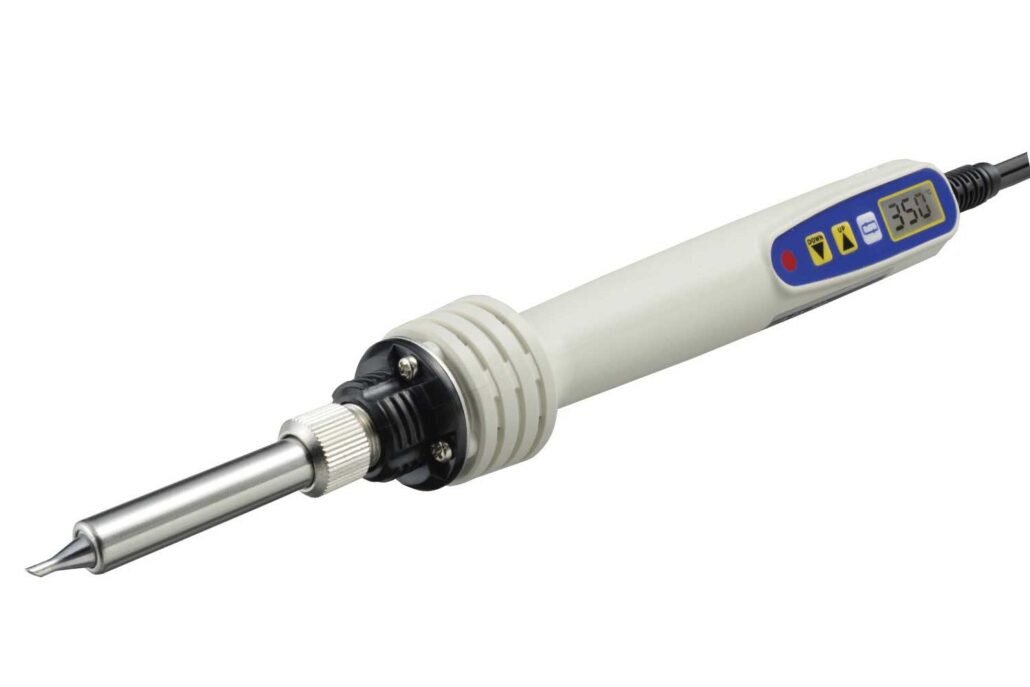

LEAD-FREE TEMPERATURE-CONTROLLED SOLDERING IRON PX-280

We put your station functions in your grip! Smart soldering iron with digital display. (Smart Iron)

Package Contents	Tip (PX-28RT-SB)

Heat-resistant Cap (PX-28CAP) is sold separately.

We Put Your Station Functions in Your Grip.

[New] TEMP. Display on Soldering Iron

You can confirm the set temperature at a glance by digital display.
Temperature can be set in 1°C increments from 200°C to 500°C with the UP key and DOWN key.

LED HEAT lamp.

Smart Functions for Safe, Secure Soldering

KEY LOCK

Lock with password. No tools or cards necessary.

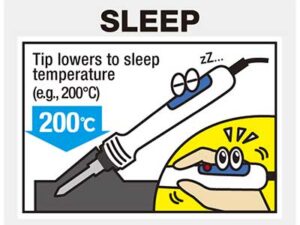

SLEEP

SLEEP and SHUTDOWN can be set by vibration sensor.
When iron is not used during preset time, it automatically lowers tip temperature to avoid tip-burn.
Sleeping frequently will greatly increase the life of the soldering tip.

SLEEP FUNCTION RELEASE

You can exit SLEEP mode by moving the grip.
Nudge the soldering iron lightly. It wakes up and returns to the set working temperature.

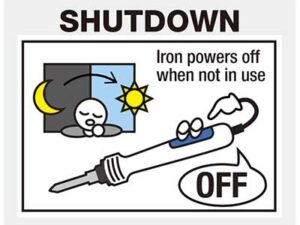

SHUTDOWN

When the iron is not used during the preset time, it automatically shuts down.
Temperature is displayed as temperature drops.
Saves electricity, and prevents accidents.
*Iron remains off until a button is pressed, or cord is unplugged and plugged in again.

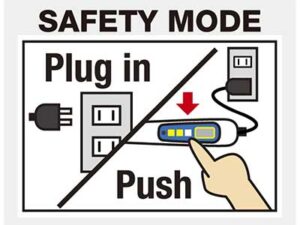

SAFETY MODE

Gives you an optional start-up method.
ON: Iron heats only when a button is pressed.
OFF: Iron heats as soon as it is plugged in.
*Safety Mode saves electricity and prevents accidents.

Quick Heat

– Reaches temperature in time comparable to that of middle-class soldering stations. Gets to 350°C in just 30 seconds with a standard tip.
– With a high-power heater and sensor, there is almost no temperature fluctuation during heavy-duty continuous operation.
Excellent heat recovery. Can be used for continuous soldering work at the manufacturing site.

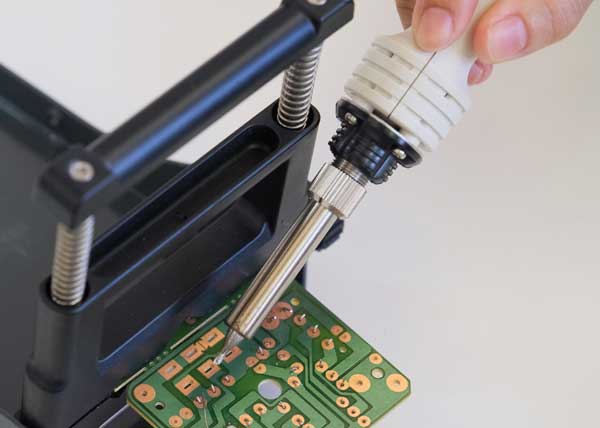

Comfortable Grip with Excellent Workability

Comfortable, ergonomic grip.
The distance between the grip and the tip is short, making it easy to work with.

You can use any of our iron stands for ceramic-heater soldering iron.
– Soldering iron stands for ceramic-heater soldering irons: ST-27, ST-76, ST-77
– Soldering iron stands with solder reel holder: ST-53

Variety of Replacement Tips

Precision-manufactured in our own Hiroshima factory.

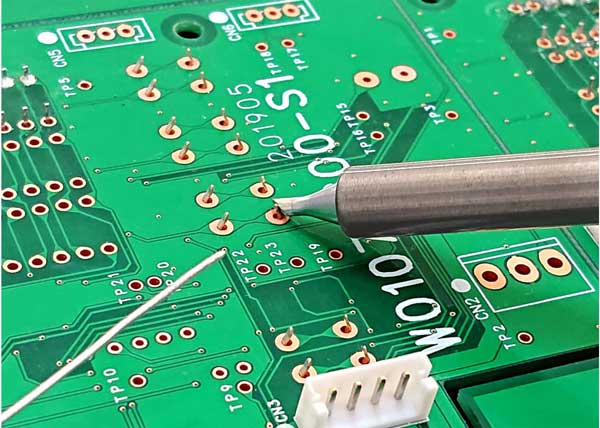

Standard SB-type, 0.2 mm dia. tip (PX-28RT-SB).

Insert Nuts for Molded Resin Products * NEW TIPS

We have added four new tips!
Please set your temperature for your specific resin and insert nut.
The recommended temperature is +100°C from the melting point of the resin.

Model: PX-28T-NS, PX-28T-NL, PX-28T-NM3 (for insert nut M3), PX-28T-NM4 (for insert nut M4)

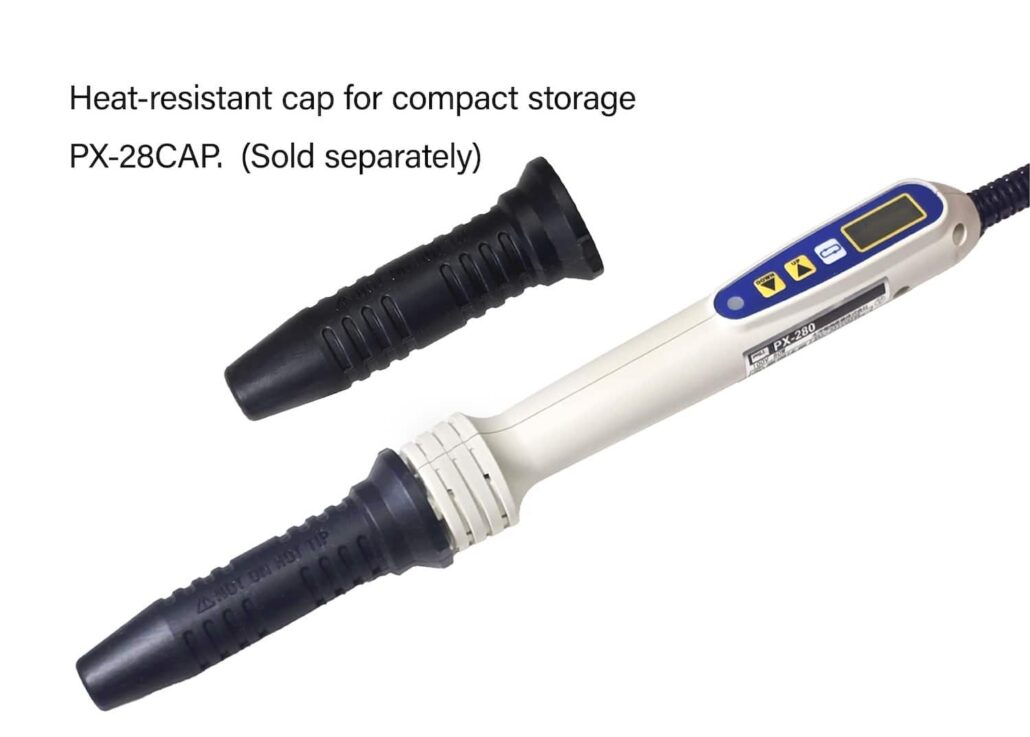

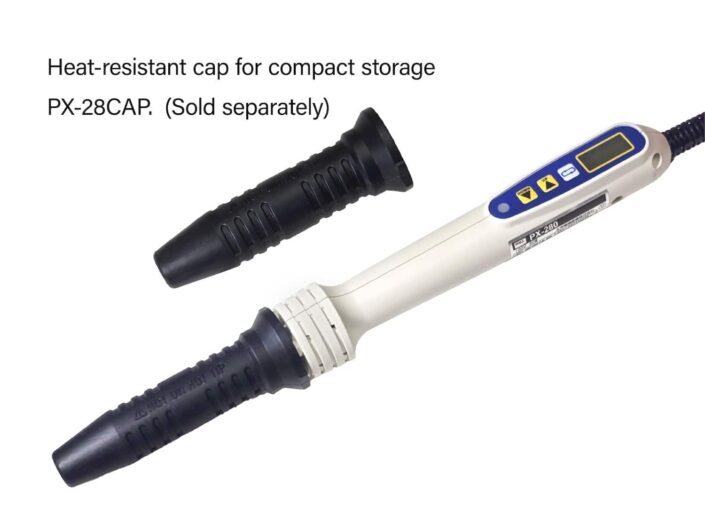

New! Improved PX-28CAP (sold separately)

Heat Resistant Protective Cap for PX-280 Smart Iron

– Silicone rubber completely covers and protects.
– More compact than previous cap TQ-CAP.
– Easy to push on, pull off. No twisting required.

Material: Heat-resistant silicone rubber
Heat-resistant Temp.: 200°C

Calibration

Digitally calibrates the difference between the set temperature and the tip temperature as measured by tip thermometer.

Product Specifications

		PX-280 (3-prong plug)
Voltage	220-240V AC 50/60Hz
Power Consumption	110-130W (220-240V)
Temperature Setting Range	200 – 500°C
Ripple Temperature	±5°C (unloaded)
Ground Resistance		2Ω or less
Leak Voltage		Less than 2 mV
Insulation Resistance	100 MΩ or more (500 V DC)
Heater	Ceramic heater
Power Cord Length/Plug	1.5 m	1.5 m (3 core cord with ground pin)
Length / Weight	226mm / 70g
Accessories	Soldering Iron Tip (PX-28RT-SB)

IEC 60884 / EN50075 стандартад нийцсэн 1,2м урт тэжээлийн залгуур:*The length does not include the cord bushing. The weight does not include the cord.
