UT197PV нарны хавтангийн мультиметр

үнэ: 980,000 төг

UT197PV professional multimeter-solar pro

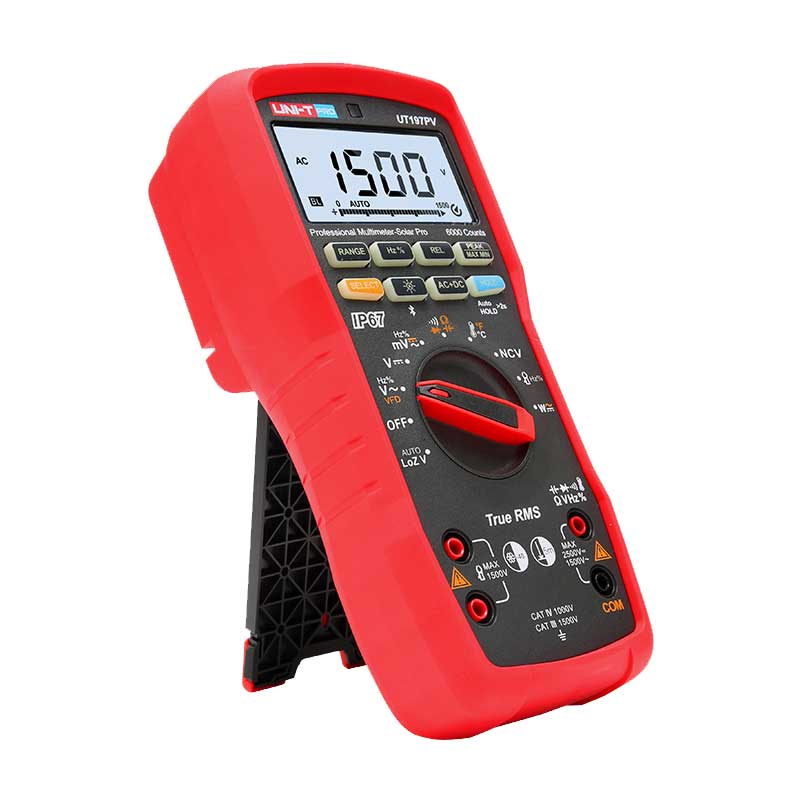

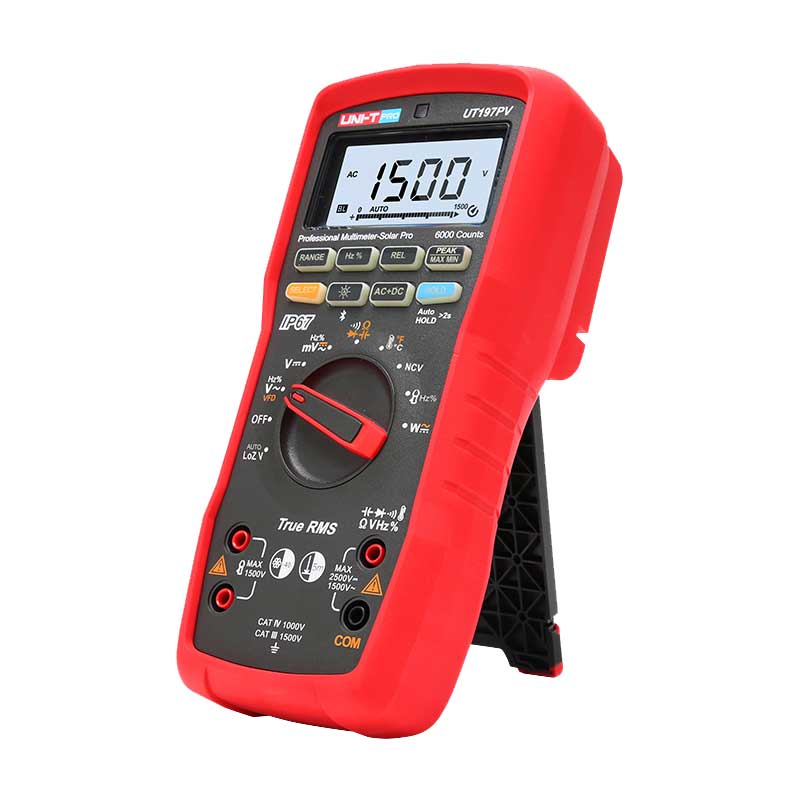

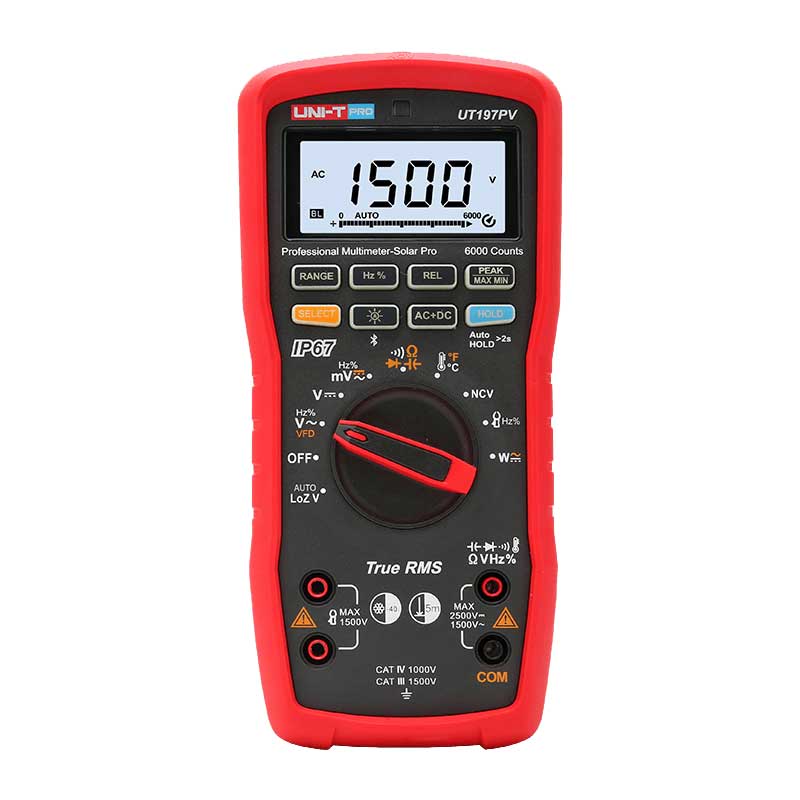

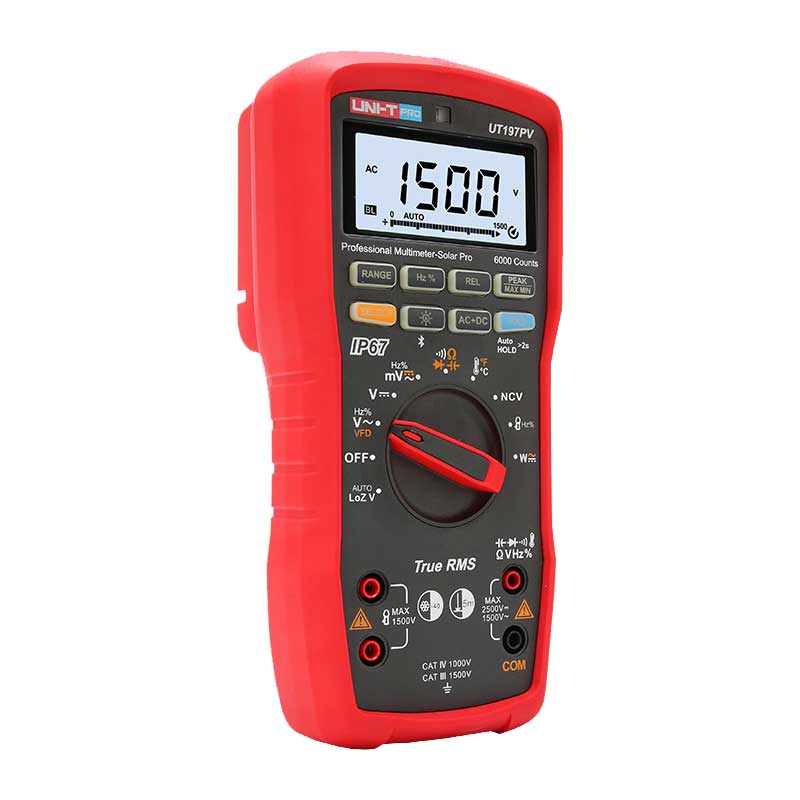

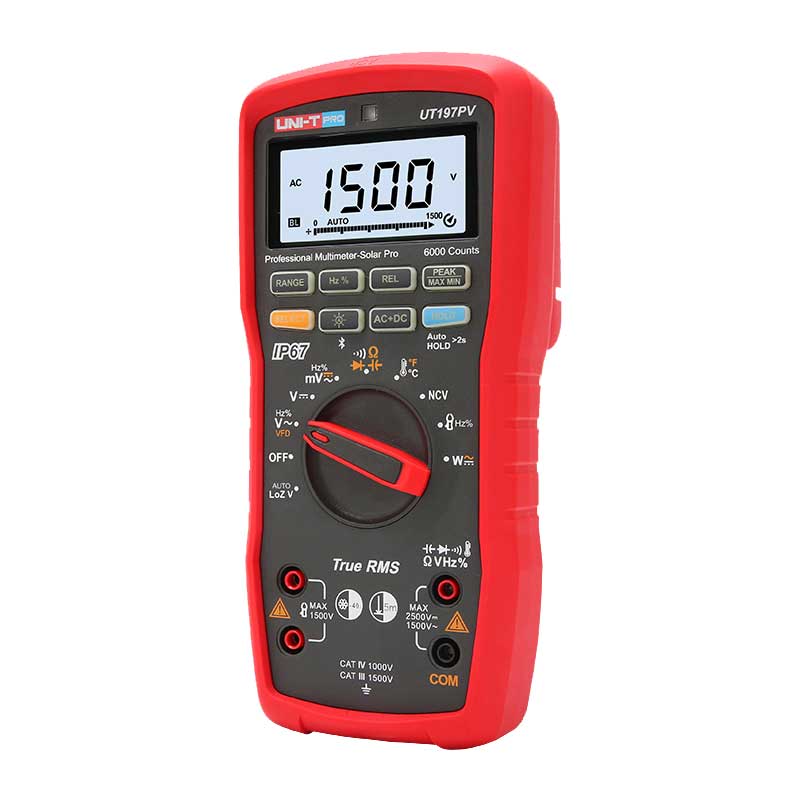

The UT197PV is a rugged, high-precision true RMS handheld multimeter designed for industrial use. Key features include an IP67 rating for dust and water resistance, and the ability to withstand drops from up to 5 meters. This multimeter is ideal for harsh outdoor environments, such as damp or sandy conditions and extreme cold. It is widely used in power engineering, HVAC, new energy and environmental protection etc.

Certifications: CE, cETLus, RoHS

1. True RMS measurement with 6,000 counts

2. AC/DC voltage: AC 1500V & DC 2500V

3. Power measurement: 1500KVA(AC) & 2500KVA (DC)

4. VFD output measurement

5. External clamp: AC/DC 1000A (Optional: UT-CS07)

6. IP67 & 5m Drop Protection

7. Overvoltage category: CAT IV 1000V & CAT III 1500V

8. Working environment: -40 °C ~ 55 °C

9. Bluetooth APP supported

Specifications

Specification
Voltage(DCV)		600.0mV	±(0.3%+5)
		6.000V/60.00V/600.0V	±(0.2%+5)
		2500V	±(1.0%+5)
Voltage(ACV)	45～1kHz	600.00mV/6.000V/60.00V/600.0V/1500V	≥45Hz, <500Hz: ±(0.8%+3);
Voltage(ACV)	45～1kHz	600.00mV/6.000V/60.00V/600.0V/1500V	≥500Hz, <1KHz: ±(1.8%+3);
VFD (ACV)	45～200Hz	600.0V/1500V	±(2.0%+5)
Auto Loz	45～400Hz	600.0V	±(1.5%+5)
Auto Loz	45～400Hz	1500V	±(1.8%+5)
ACV+DCV		600.00mV/6.000V/60.00V/600.0V/1500V	≥45Hz, <500Hz: ±(1.5%+5); ≥500Hz, <1KHz: ±(2.5%+5);
Resistance		600.0Ω	±(0.8%+5)
		6.000kΩ/60.00kΩ/600.0kΩ/ 6.000MΩ	±(0.5%+5)
		60.00MΩ	±(2.5%+5)
Capacitance		60.00nF	±3.0%
		600.0nF/6.000μF/60.00μF/ 600.0μF	±(3.0%+5)
		6.000mF/60.00mF	±(10.0%+5)
Continuity		600.0Ω	±(1.0%+5)
Diode		3.2V	±(1.0%+5)
Fequency		99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz	±(0.02%+5)
Duty cycle		10Hz~10KHz (10%~90%)	±(2.0%+30)
Temperature		-40℃~1000℃	±(1.0%+30)
Temperature		-40℉~1832℉	±(1.0%+60)
External clamp (DCA)	UT-CS07(optional)	100A(10mV/A) & 1000A(1mV/A)	±(0.8%+5)
External clamp (ACA)	UT-CS07(optional)	45～400Hz: 100A(10mV/A) & 1000A(1mV/A)	±(1.0%+5)
AC Power 100A(10mV/A)	Active power	60.00kW/150.0kW	±(3.0%+5)
	Apparent power	60.00kVA/150.0kVA	±(2.0%+5)
	Reactive power	60.00kVAr/150.0kVAr	±(5.0%+5)
	Factor	-1~1	*
AC Power 1000A(1mV/A)	Active power	600.0kW/1500kW	±(3.0%+5)
	Apparent power	600.0kVA/1500kVA	±(2.0%+5)
	Reactive power	600.0kVAr/1500kVAr	±(5.0%+5)
	Factor	-1~1	*
DC Power 100A (10mV/A)		60.00kVA/250.0kVA	±(3.0%+5)
DC Power 1000A (10mV/A)		60.00kVA/2500kVA	±(3.0%+5)
Display count		6000
Analog bar		33 segment
True RMS		✔
NCV		✔
Auto range		✔
REL.		✔
PEAK		✔
MAX/MIN		✔
Data hold		✔
High voltage alarm		✔
High voltage OL alarm		✔
Low battery indication		✔
Auto power off		✔
Multifunctional protection		✔
Bluetooth app		✔
Backlight		Auto backlight
Drop protection		5m
IP rating		IP67
Working temperature		-40~55℃
Overvoltage category		CATⅣ1000V & CATⅢ1500V
General Characteristics
Product dimension		22010467mm
Power supply		AA 1.5V *3
