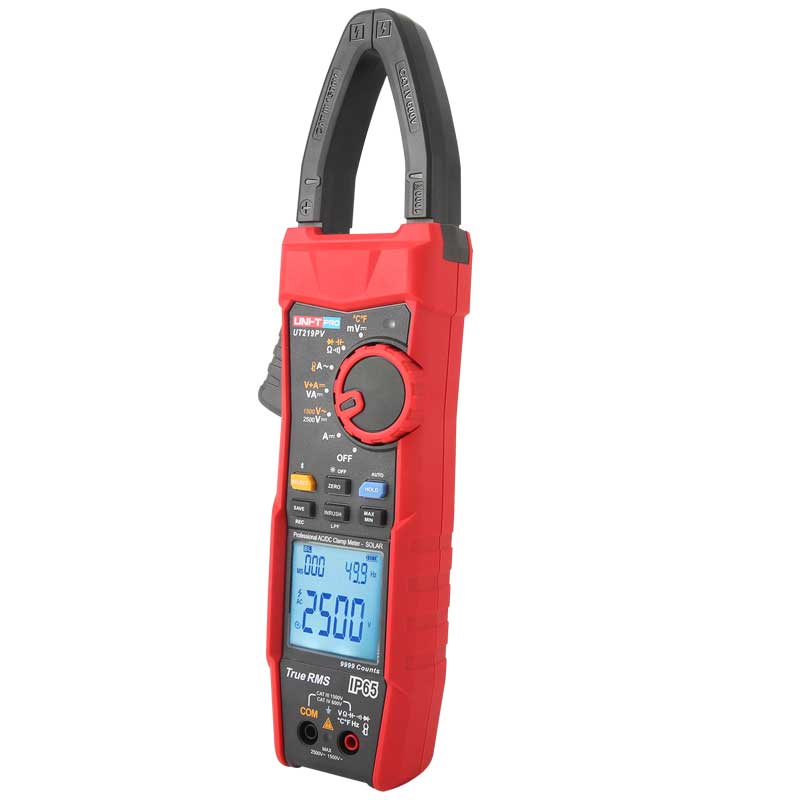

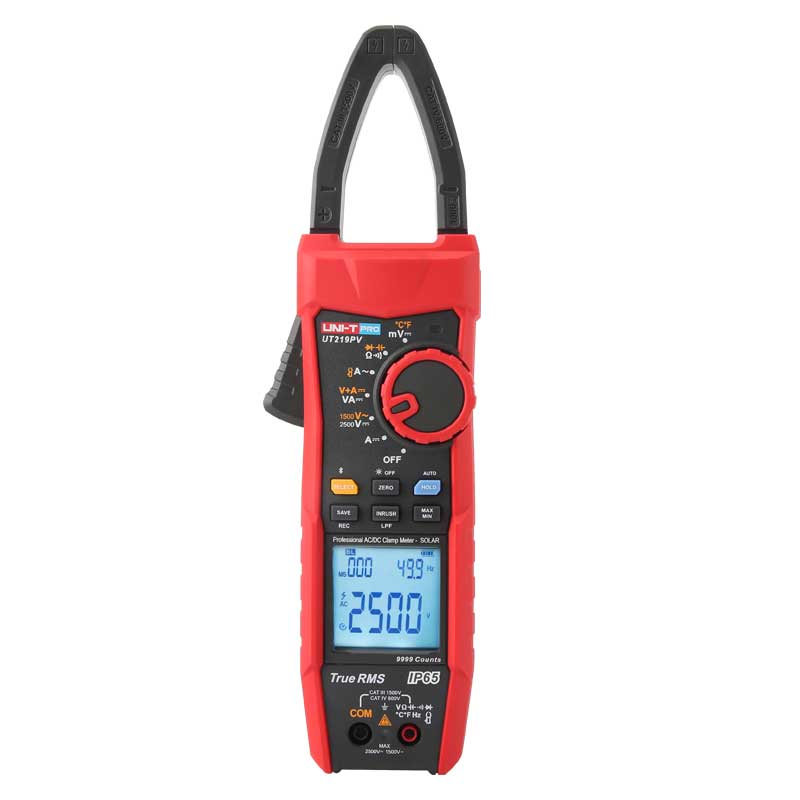

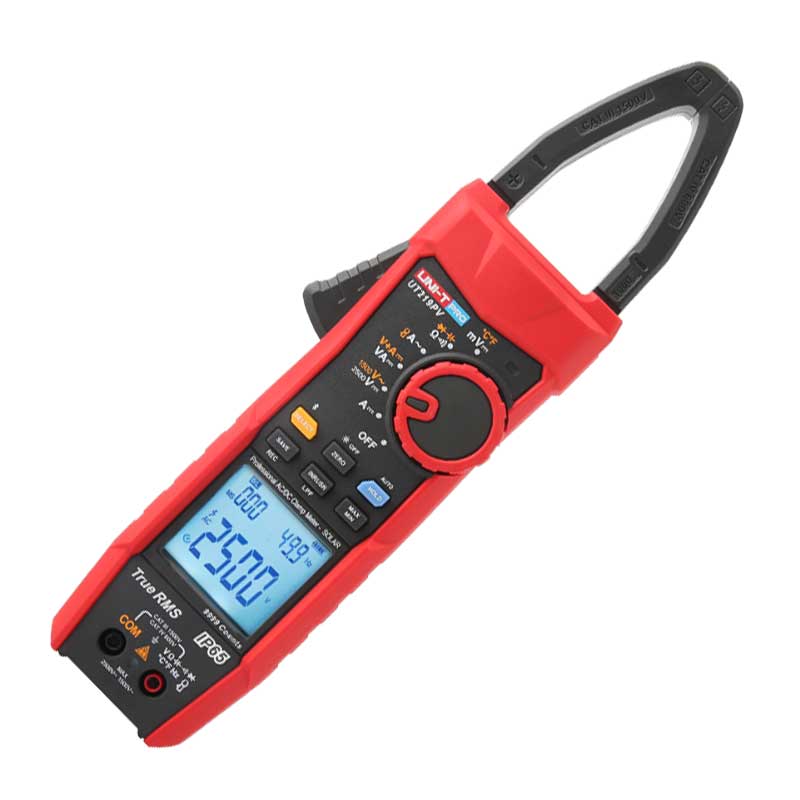

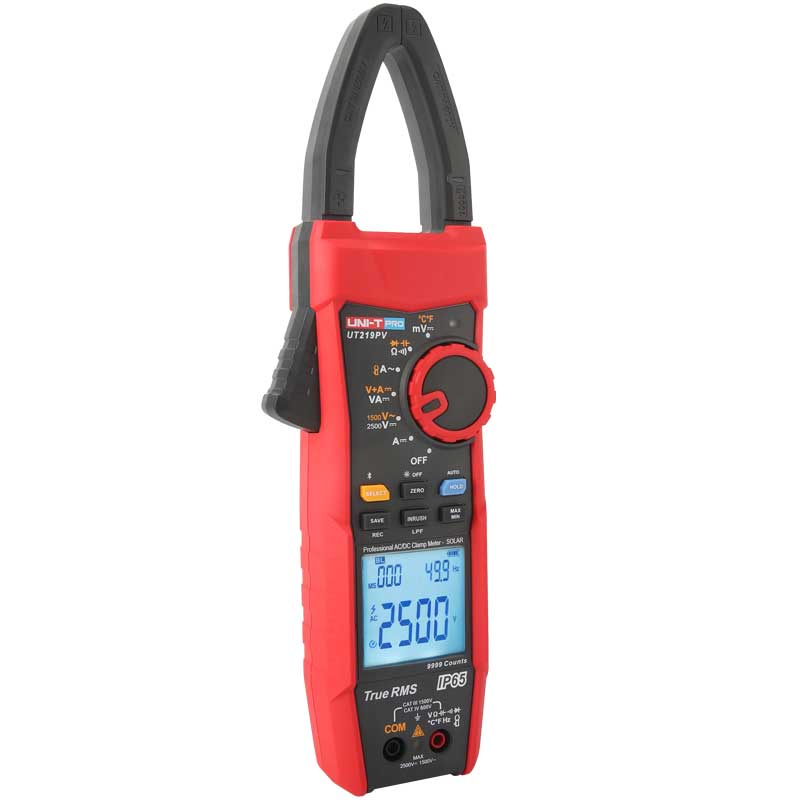

Амперклещ UT219PV Professional AC/DC Clamp Meter

үнэ: 950,000 төг

Features of UT219PV Professional AC/DC Clamp Meter

Certifications (UT219PV only): CE, RoHS, cETLus

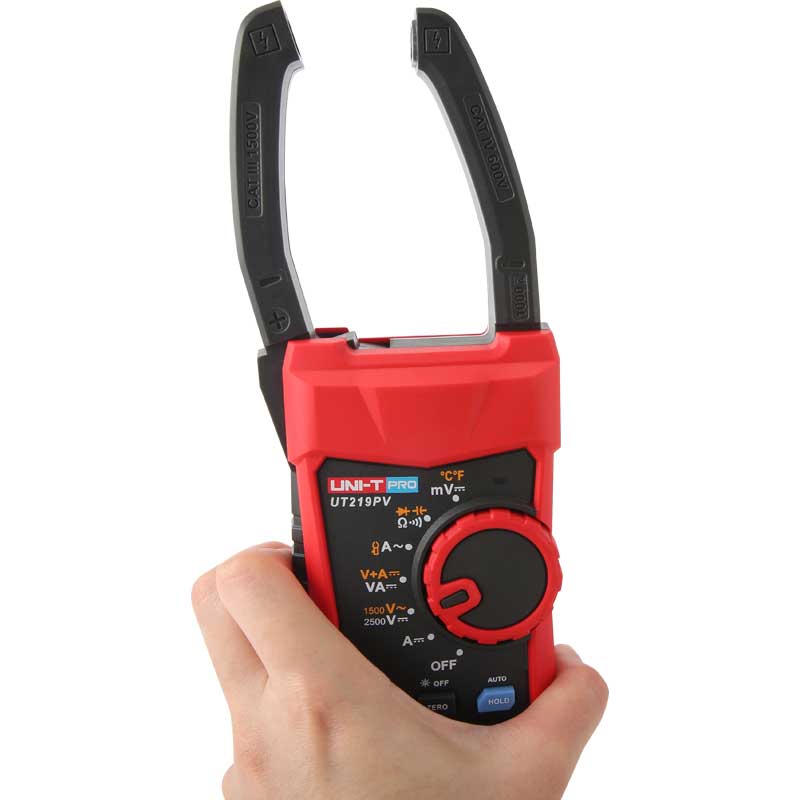

● 35mm Ultra-thin Jaw: suitable for inverter or combiner box

● Voltage measurement: AC1500V/DC2500V

● Current measurement: AC/DC 1000A

● Power DC: 2500KVA

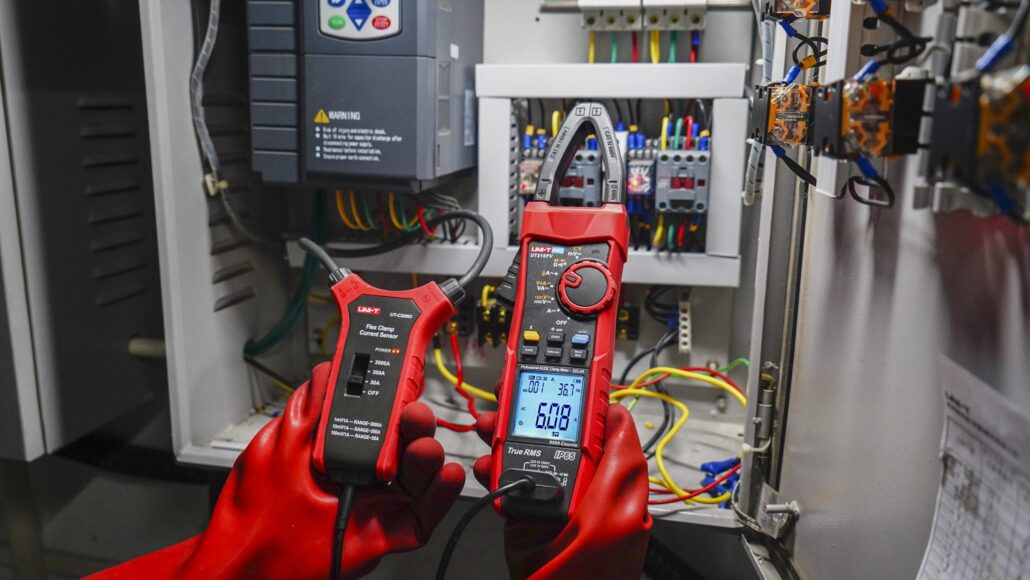

● External clamp sensor: UT-CS09D(AC 3000A)

● Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm

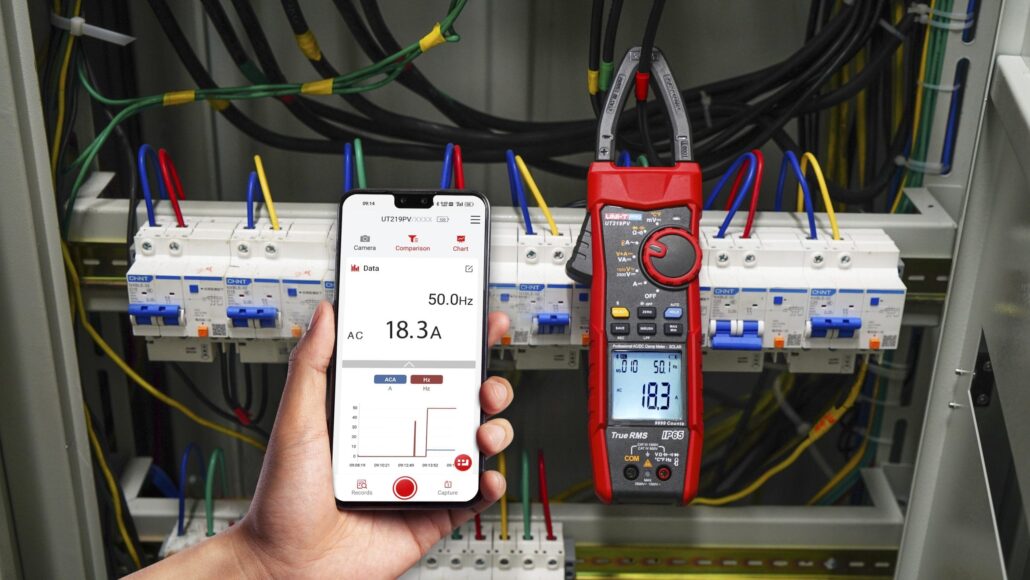

● Bluetooth APP

● Auto backlight & Auto power off

● Certificates：CE (EMC, LVD), cETLus, RoHS

● Safety rating：CAT III 1500V/ CAT IV 600V

● IP65

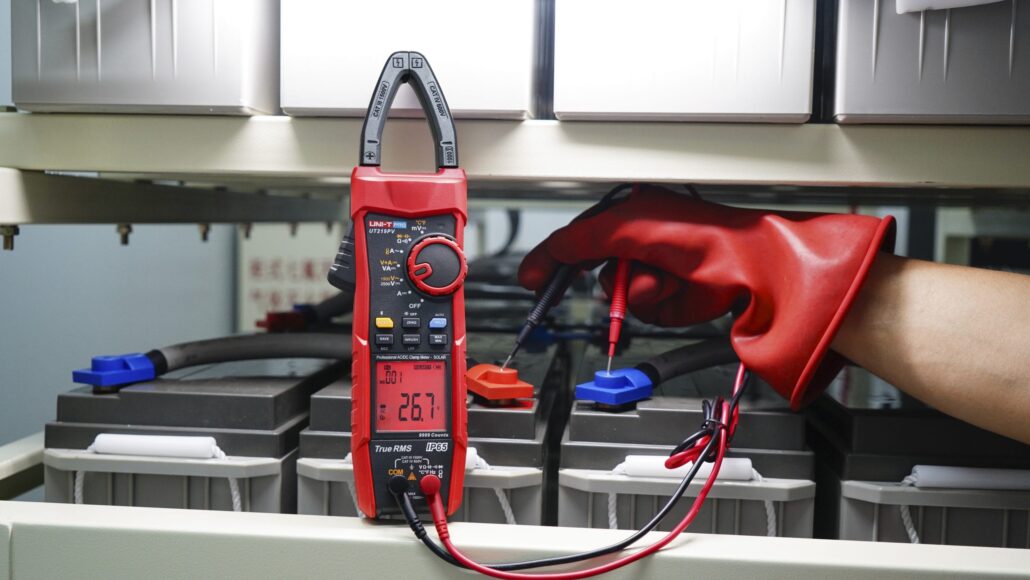

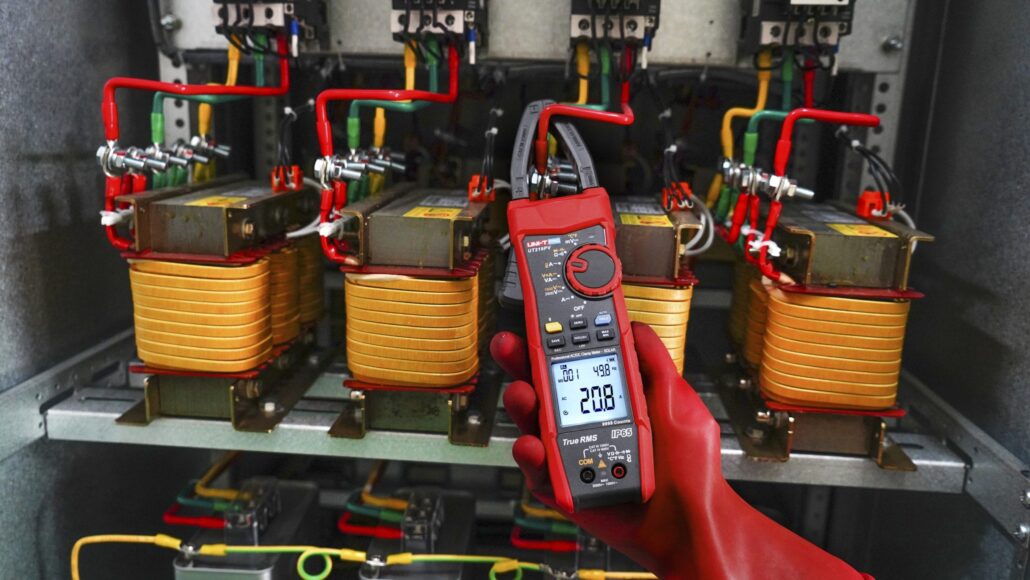

The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.

Specifications

Technical Specifications
Current (ACA)	999.9 A	40Hz~100Hz: ±(2.0%+5) 100Hz~1000Hz: ±(2.5%+5)
Current (DCA)	999.9 A	±(2.0%+5)
Voltage (ACV)	999.9V/1500V	40Hz~1000Hz: ±(1.0%+5)
Voltage (DCV)	999.9V/2500V	±(1.0%+5)
Voltage (DC mV)	999.9 mV	±(1.0%+5)
ACV(with LPF)	999.9V	±(2.0％＋9)
ACA(with LPF)	999.9A	±(2.5％＋9)
ACA(with LPF): flex clamp sensor	30.00A/300.0A/3000A	±(4.0%+9)(center area)
ACA;with flex clamp sensor	30.00A/300.0A/3000A	±(3.0%+5) (center area)
Power (DC)	999.9 kVA/2500 kVA	±(2.0%+20)
Frequency (A&V)	5.0 Hz to 999.9Hz	±(0.5%+5)
Resistance (Ω)	999.9Ω/9.999KΩ/99.99kΩ	±(1.0％+5）
Cpacitance（F）	100.0μF/1000 μF	±(1.0％+5）
Temperature	-40℃~400℃/-40℉~752℉	±(1.0%+30); ±(1.0%+60)
Features:
True RMS	√
Display count	9999
Display	LCD: Dual display (V+A)
Jaw (Max conductor dia.)	35mm
Diode	√
Solar panel polarity indication	when <-10 DCV, Audible & Visual alarm
High voltage alarm	√
Over range indication	√
AUTO HOLD	√
Inrush current	√
PEAK	√
Bluetooth app	BT 5.0
Auto backlight	√
Low battery indication	√
Flexiable clamp compatible	UT-CS09D (optional)
IP rating	IP65
Overvoltage category	CAT III 1500V; CAT IV 600V
Certificates	CE, cETLus, RoHS
General Characteristics
Power supply	2 * AA
Product dimension	295mm x 73mm x 50mm
Product color	Grey + Red
Accessories	test probe, temperature probe, batteries, manual
