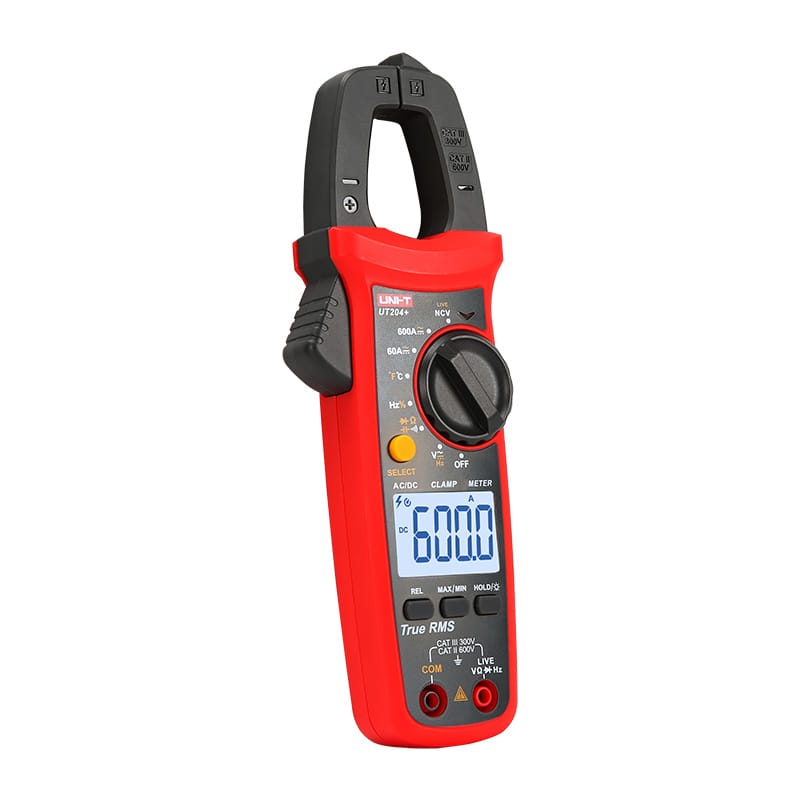

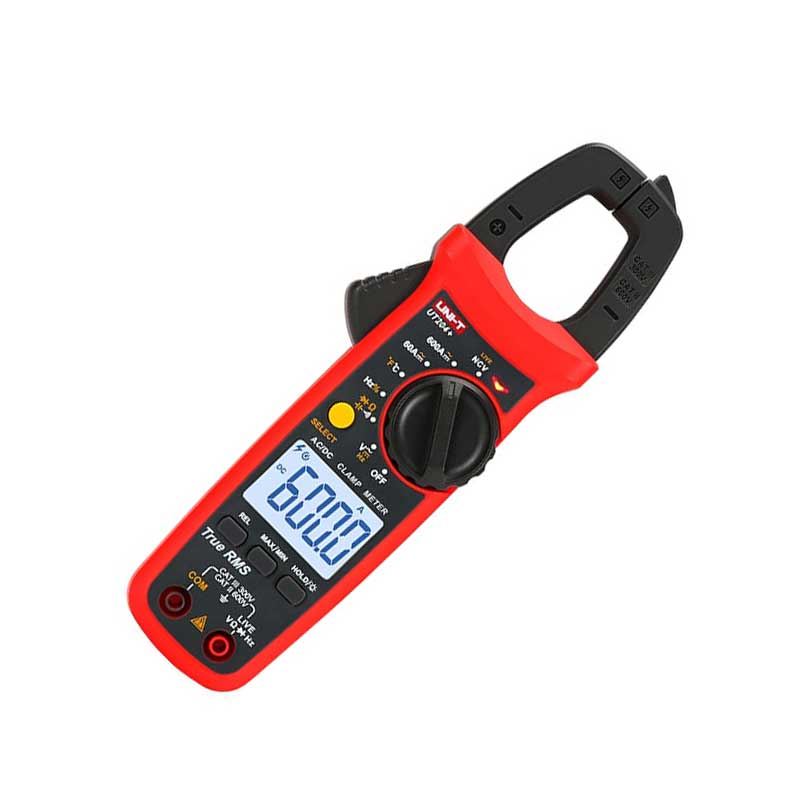

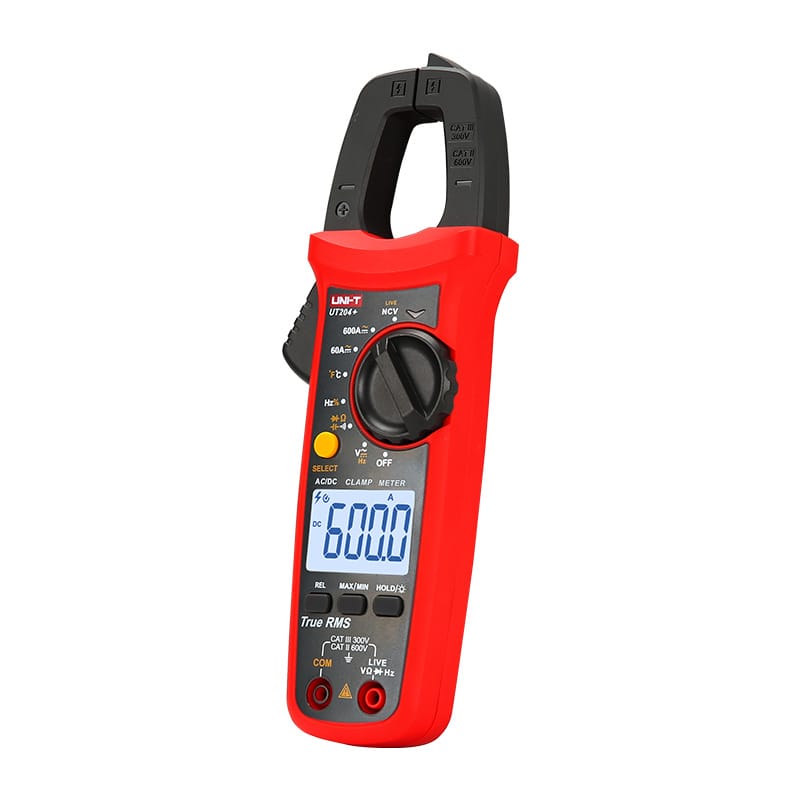

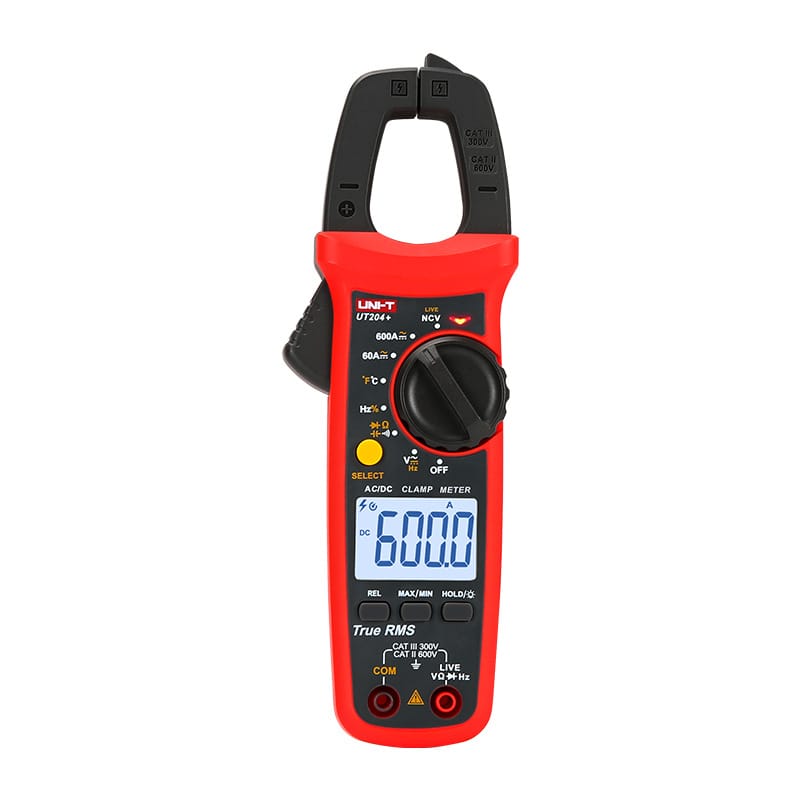

AC/DC Амперклещ UT204+

  • үнэ: 200,000 төг

Features of UT204+ 600A AC/DC Digital Clamp Meters

● True RMS

● LCD backlight

● Large screen and display digits

● 60mF large capacitance measurement

● Neutral/live wire test



Specifications of UT204+ Digital Clamp Meter

Specifications Range UT204+
AC current (A) 600A ±(2.5%+5)
DC current (A) 600A ±(2.5%+5)
AC voltage (V) 600V ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~60kHz ±(0.5%+2)
DC voltage (A) 600V ±(0.5%+2)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature (℃) -40℃~1000℃ ±(1.5%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Features
Display count 6000
Auto range √
Jaw opening 28mm
True RMS √
NCV √
Live wire test √
Continuity test √
Diode √
MAX/MIN √
Relative mode √
Zero mode √
Data hold √
Low battery indication √
Auto power off √
General Characteristics
Power 1.5V battery (R03) x 2
Display 37mm x 25mm
Product color Red and grey
Product net weight UT204+:235g
Product size 215mm x 63mm x 36mm
Standard accessories Batteries, test leads, Themocouple (UT202+/UT204+)
Standard individual packing Gift box, Carring bag, English manual
