350МГц 4 суваг осциллограф MSO3054HD

үнэ: 18,500,000 төг

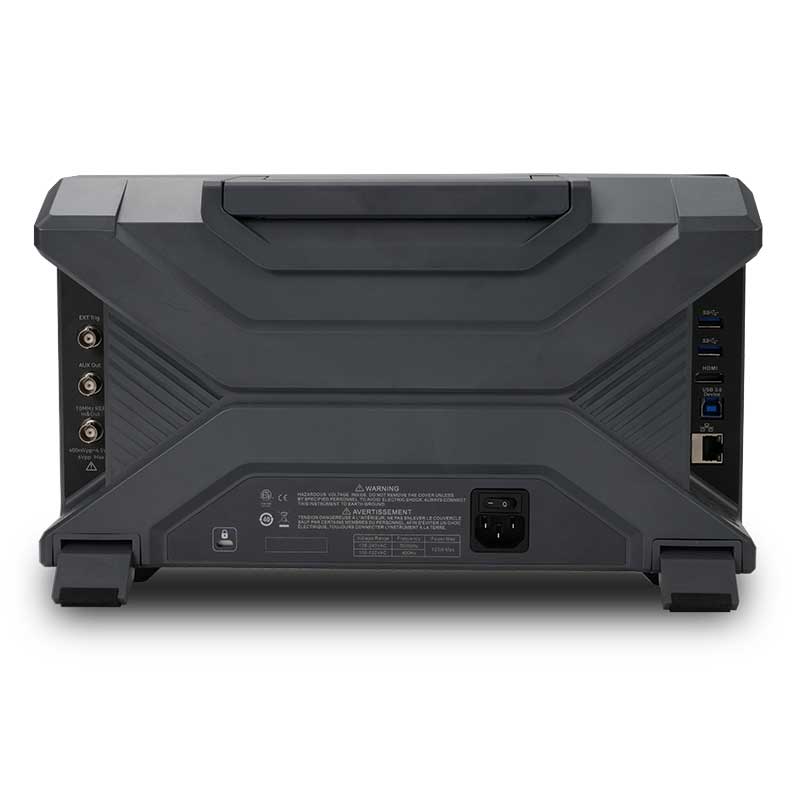

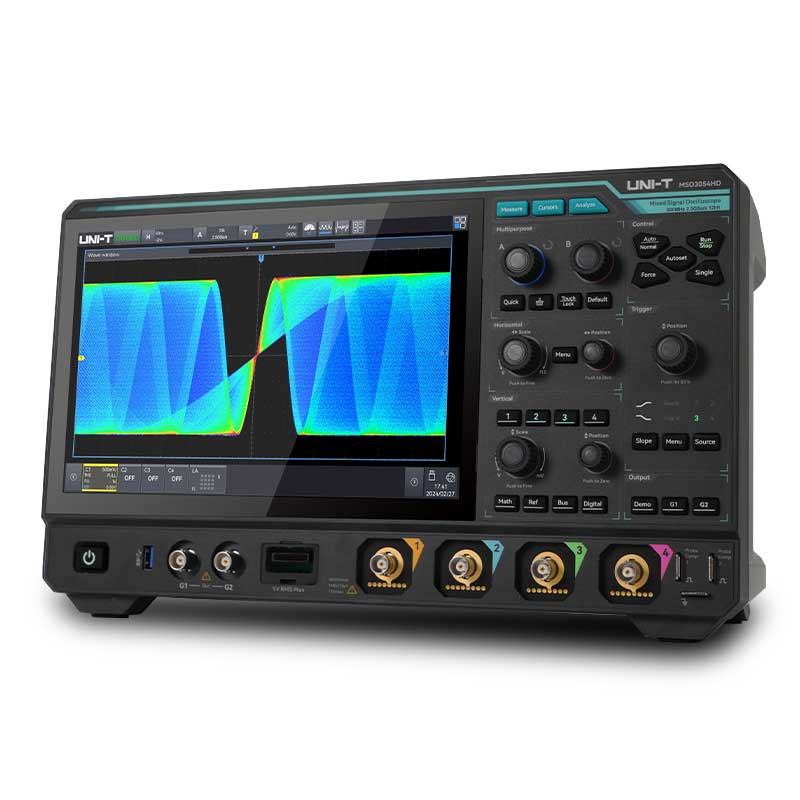

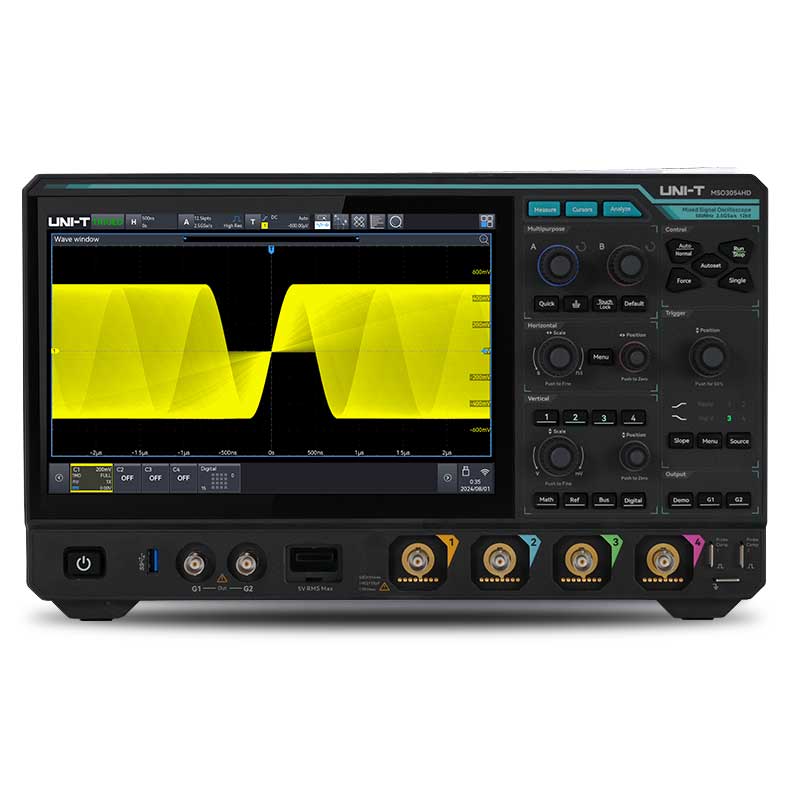

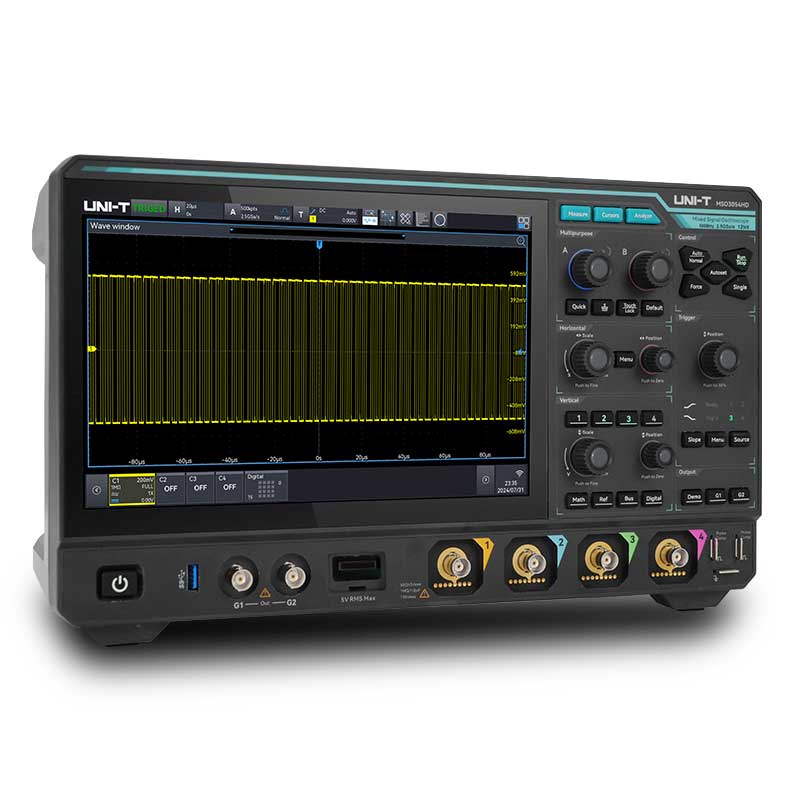

The MSO3000HD is a high-resolution oscilloscope that integrates 4 signal channels, a 16-channel logic analyzer, and a 2-channel arbitrary waveform generator. Equipped with R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution). It features a maximum sampling rate of 2.5 GSa/s, a memory depth of 500 Mpts, and a waveform capture rate of 1,500,000 wfms/s, ensuring high-quality waveform analysis. The MSO3000HD supports 12 types of trigger events and 12 types of protocol data, and it can be remotely controlled via a WebServer. It is suitable for various testing and analysis tasks in fields such as medical, low-power devices, integrated circuits, high-precision power supplies, electricity, and automotive electronics. The MSO3000HD is a versatile and powerful instrument.

Features of MSO3054HD:

* BANDWIDTH: 350MHz

* ANALOG CHANNELS: 4

* REAL-TIME SAMPLE RATE: 2.5GSa/s

* MAX. MEMORY DEPTH: 500Mpts

* WAVEFORM CAPTURE RATE: 1,500,000wfms/s

* MAX. MEMORY DEPTHDIGITAL CHANNELS: 16

Enhanced resolution of 16-bit

Higher precision, lower noise floor
In 16-bit high-resolution mode, by combining 12-bit ADC with 4-bit ERES (enhanced resolution), the measurement accuracy is significantly improved, finely displaying the intricate details of waveforms. This effectively suppresses out-of-band noise and reduces the oscilloscope’s inherent noise interference with the real signal, thereby ensuring a more precise measurement experience while increasing the sampling bits.

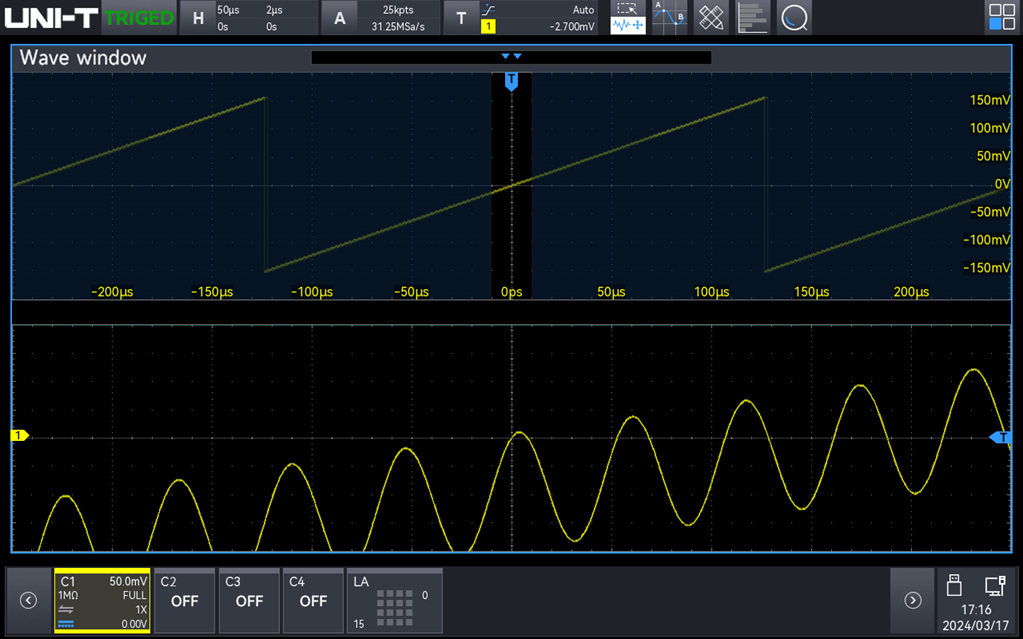

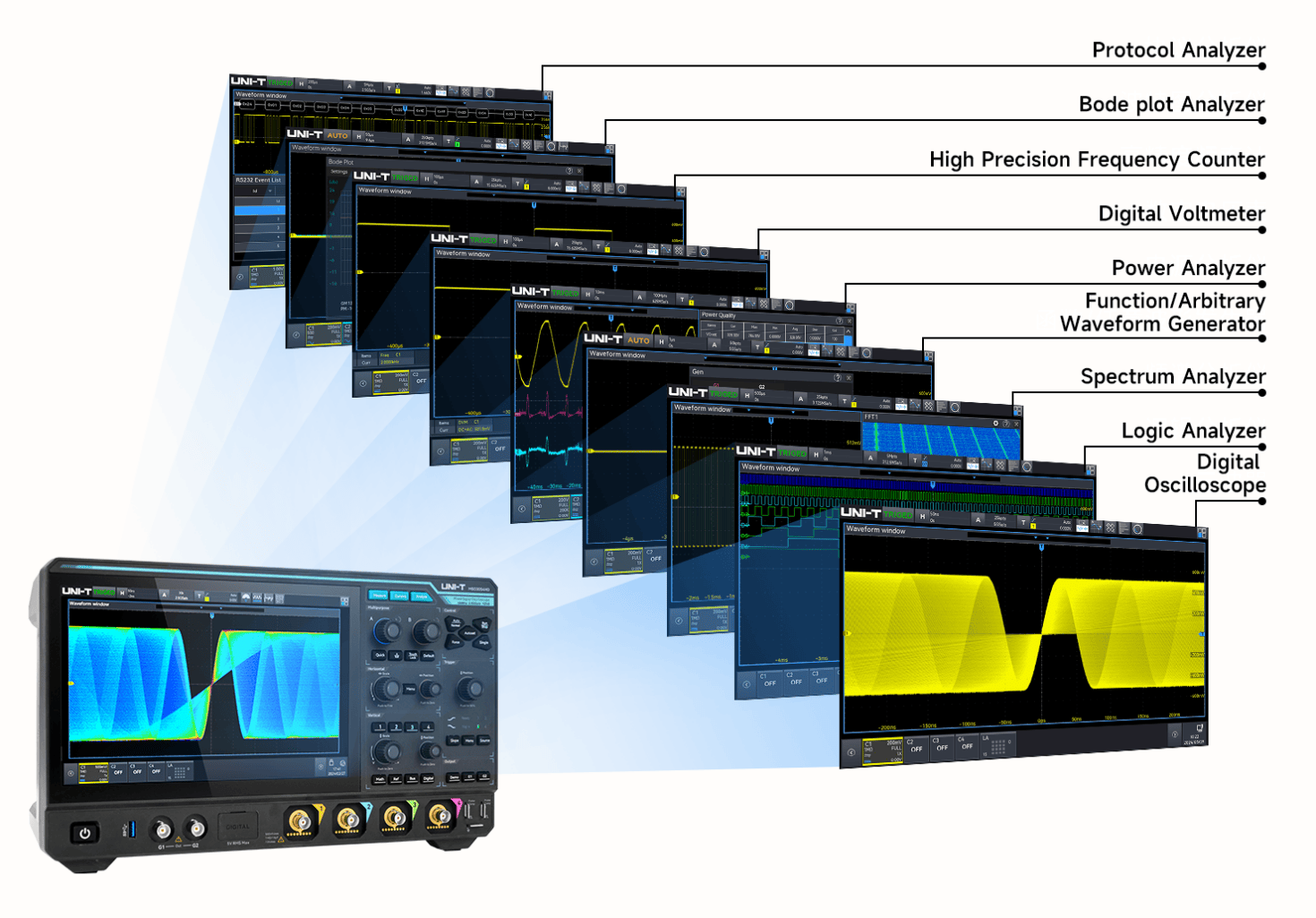

Versatile Testing Equipment

-Oscilloscopes
-Logic Analyzer
-Function/Arbitrary Waveform Generator
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-Bode plot Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

Ultra Phosphor 3.0

Ultra Phosphor 3.0, with its advanced software and hardware architecture, supports 8-channel parallel graphic mapping, achieving a processing rate of up to 20 Gbps and a waveform capture rate of up to 500,000 wfms/s, reaching 1,500,000 wfms/s in sequence mode, with a minimum dead time of less than 1 μs. This makes sporadic signals and rare anomalies detectable.

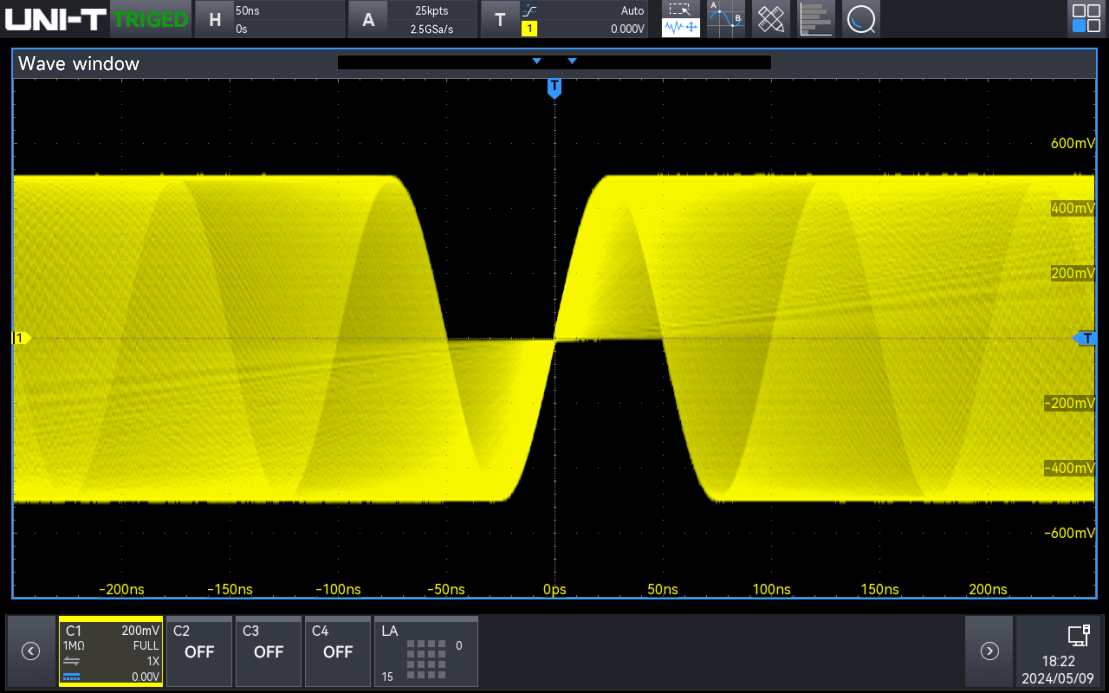

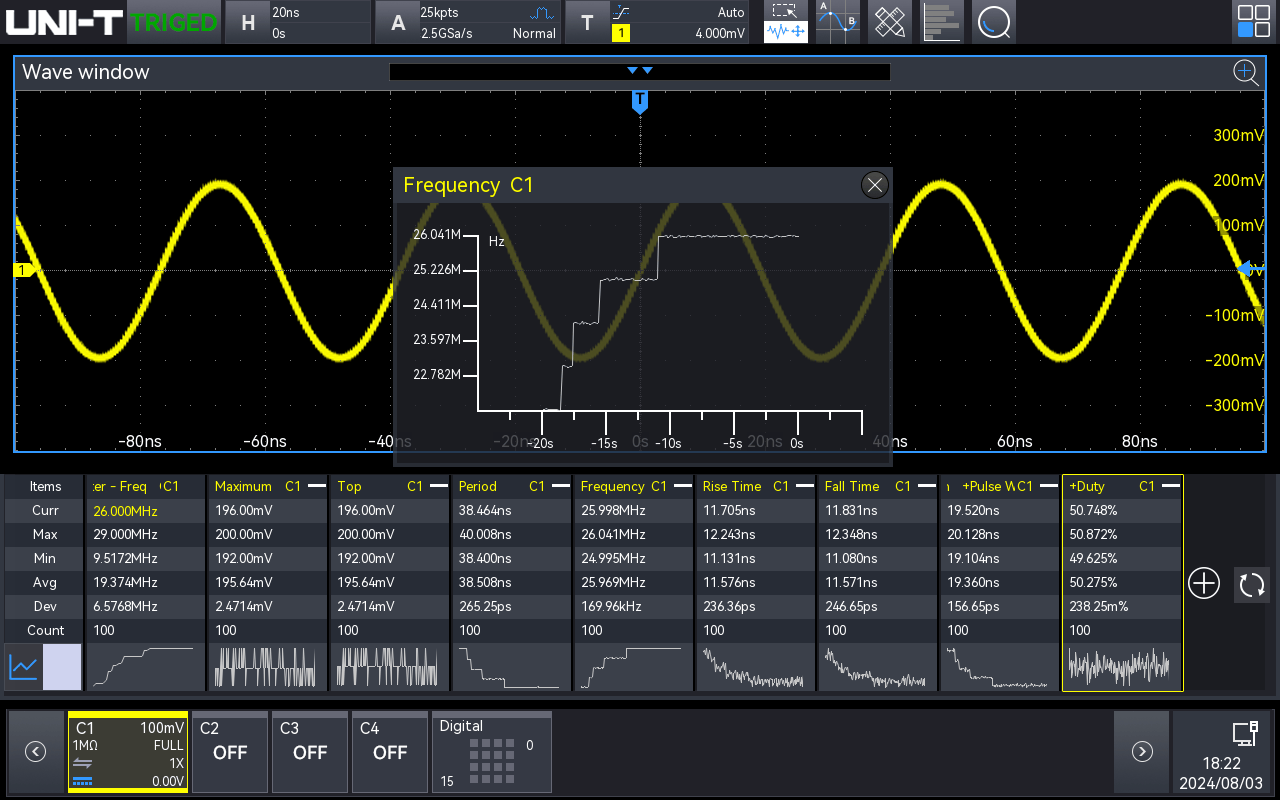

54 Types: Measurement, Statistics, Trend Graphs

54 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

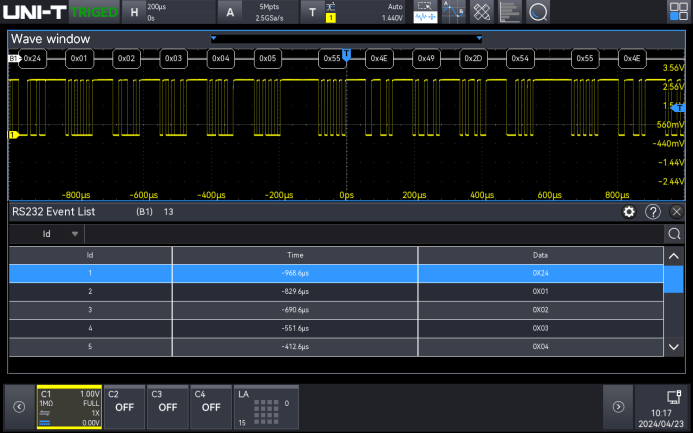

Protocol decoding and triggering

Supports 12 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN, FlexRay, SENT
-Audio: I2S (Audio-I2S, Audio-LJ, Audio-RJ)
-Aerospace：MIL STD 1553、ARINC 429
-Wireless communication：Manchester
Equipped with precise anomaly trigger capture and real-time decoding capabilities, it decodes 200M data in less than 1 second and innovatively supports four-bus simultaneous analysis, providing fast and in-depth protocol analysis solutions for complex communication systems.

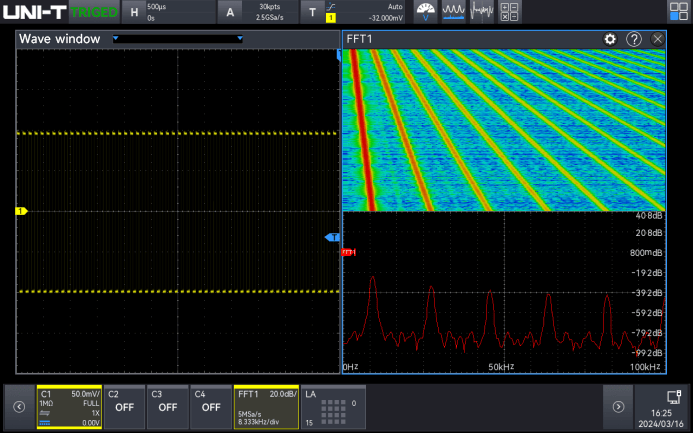

Spectrum Analyzer

-FFT maximum of 4M points
-Waterfall curve
-Automatic marker measurement
-4 traces
-Simultaneously open 4 CH FFT
Equipped with full hardware acceleration technology, this product achieves ultra-fast sampling of up to 4M points, significantly enhancing the accuracy of frequency and amplitude measurements. The innovative integration of peak search and frequency domain marker functions helps users accurately capture and deeply analyze complex signal dynamics within circuits, greatly improving circuit analysis efficiency and providing users with an exceptional testing experience.

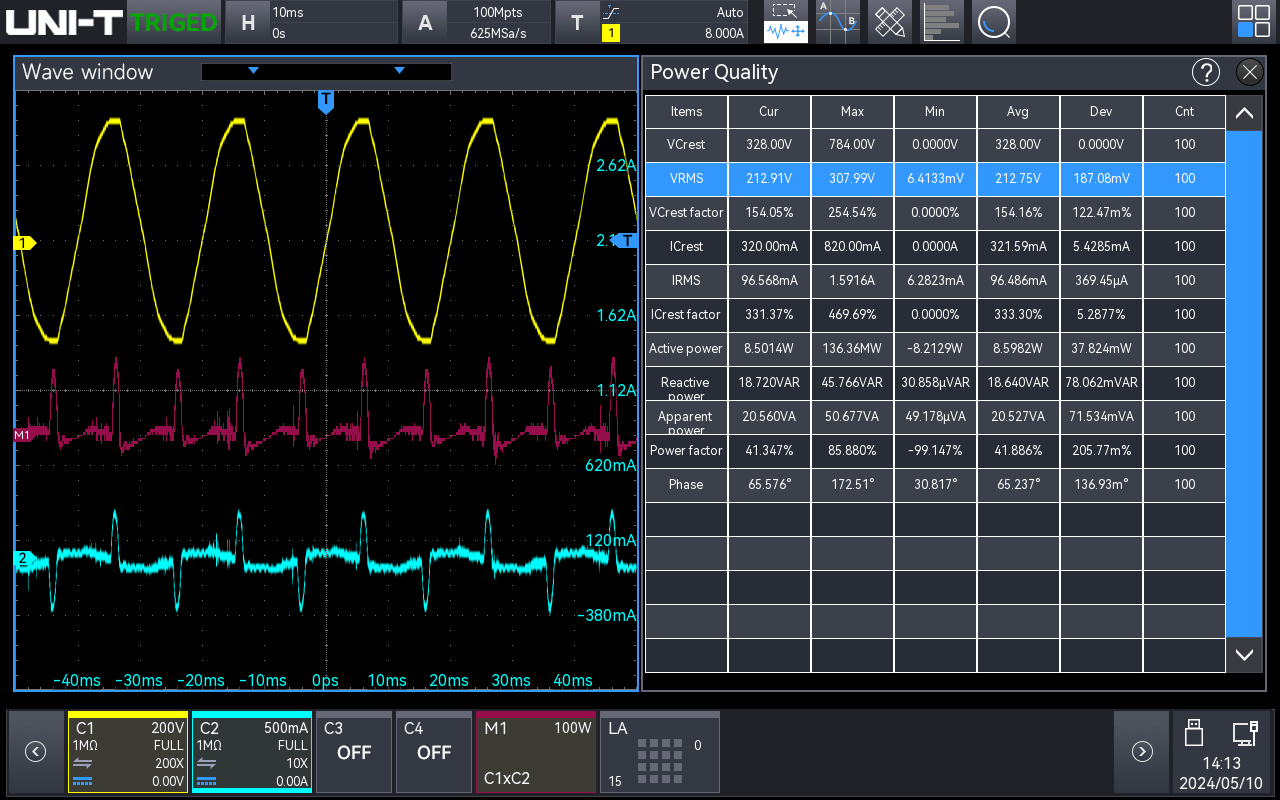

Power Analysis 6+

It integrates power supply rejection ratio (PSRR) analysis, closed-loop control response analysis, power quality assessment, current harmonic detection, and surge current analysis functions, providing comprehensive and professional solutions for power system performance qualification, stability evaluation and optimization. The aim is to enhance energy efficiency and system stability.
Supports 12 power tests in 2024 year.

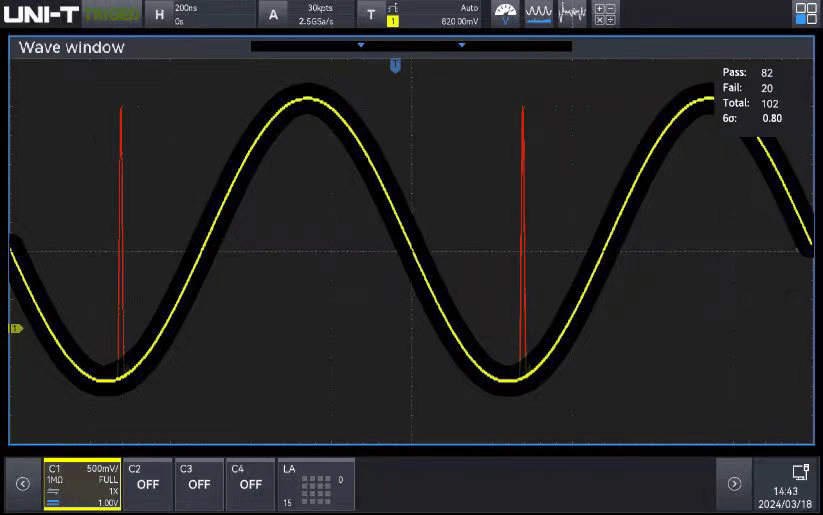

Hardware-accelerated mask testing: 6σ standard < 1s
