SVS-580AS service station

үнэ: 2,900,000 төг

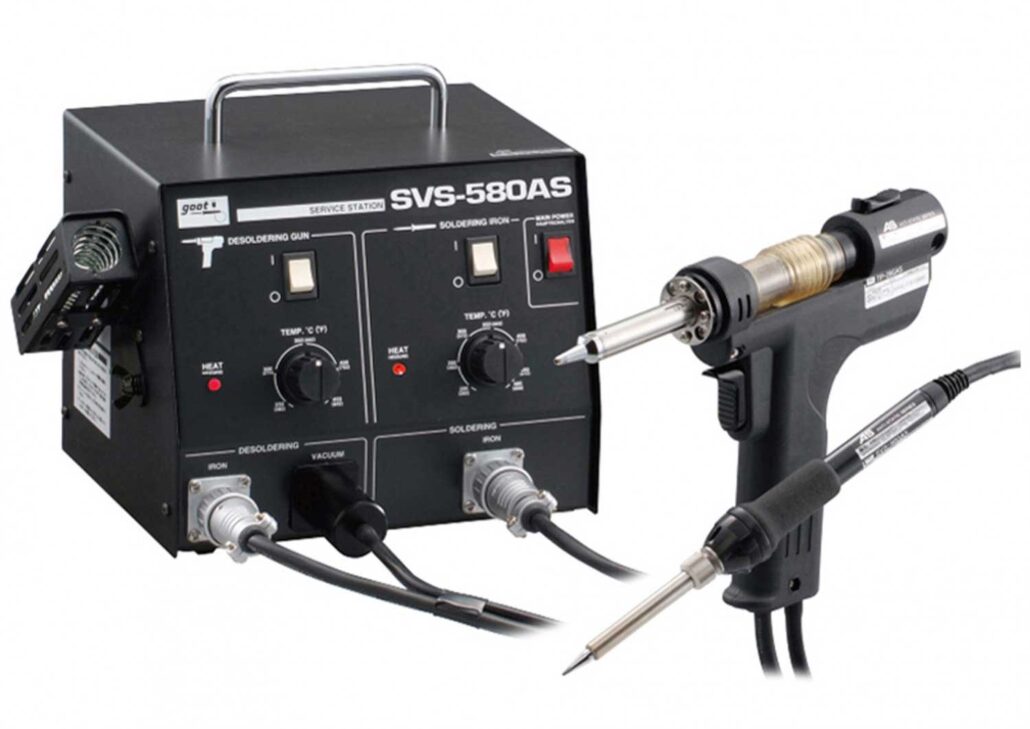

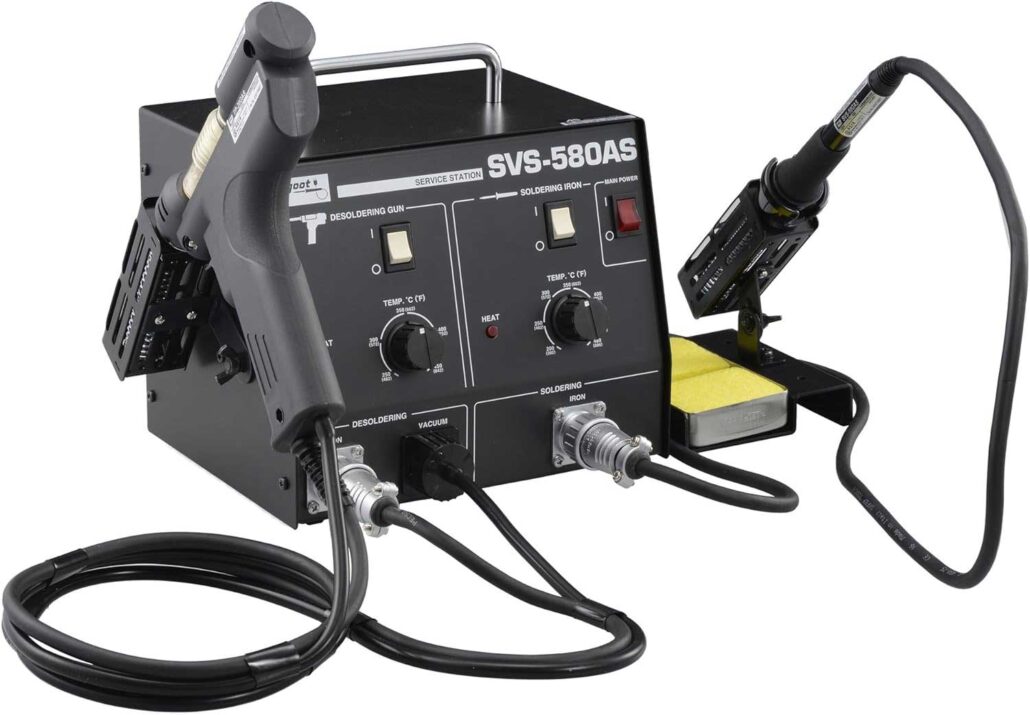

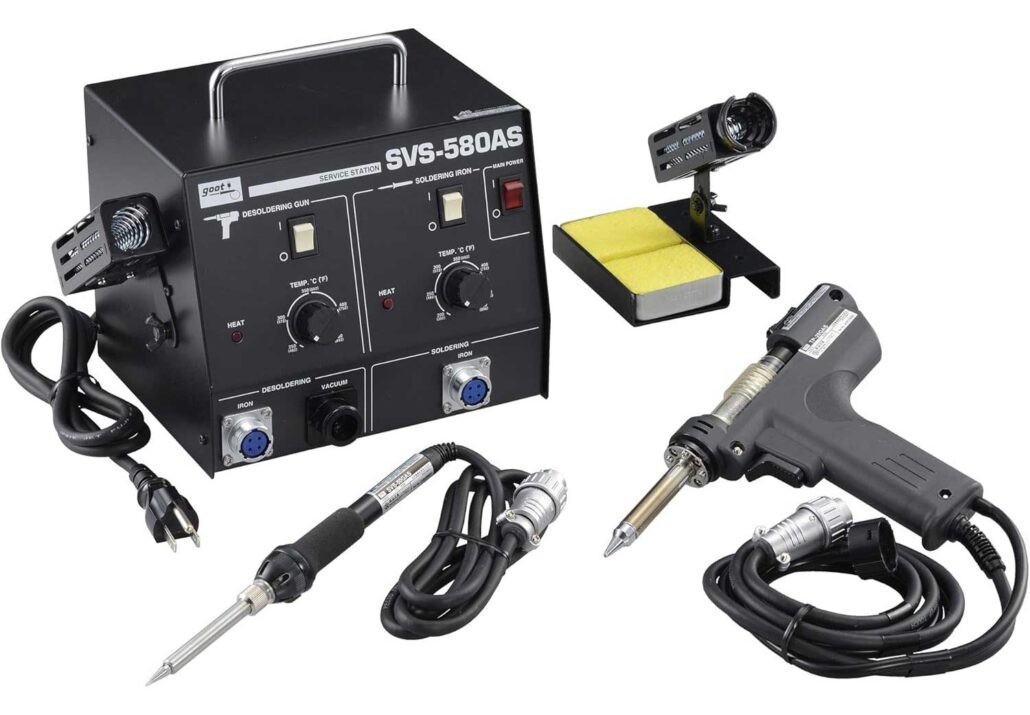

SERVICE STATION SVS-580AS

Desoldering in an instant, with reduced solder residue! Combines desoldering gun and temperature-controlled soldering iron in one unit.

Desoldering in an Instant, with Reduced Solder Residue! Combines Desoldering Gun and Temperature-controlled Soldering Iron in One Unit.

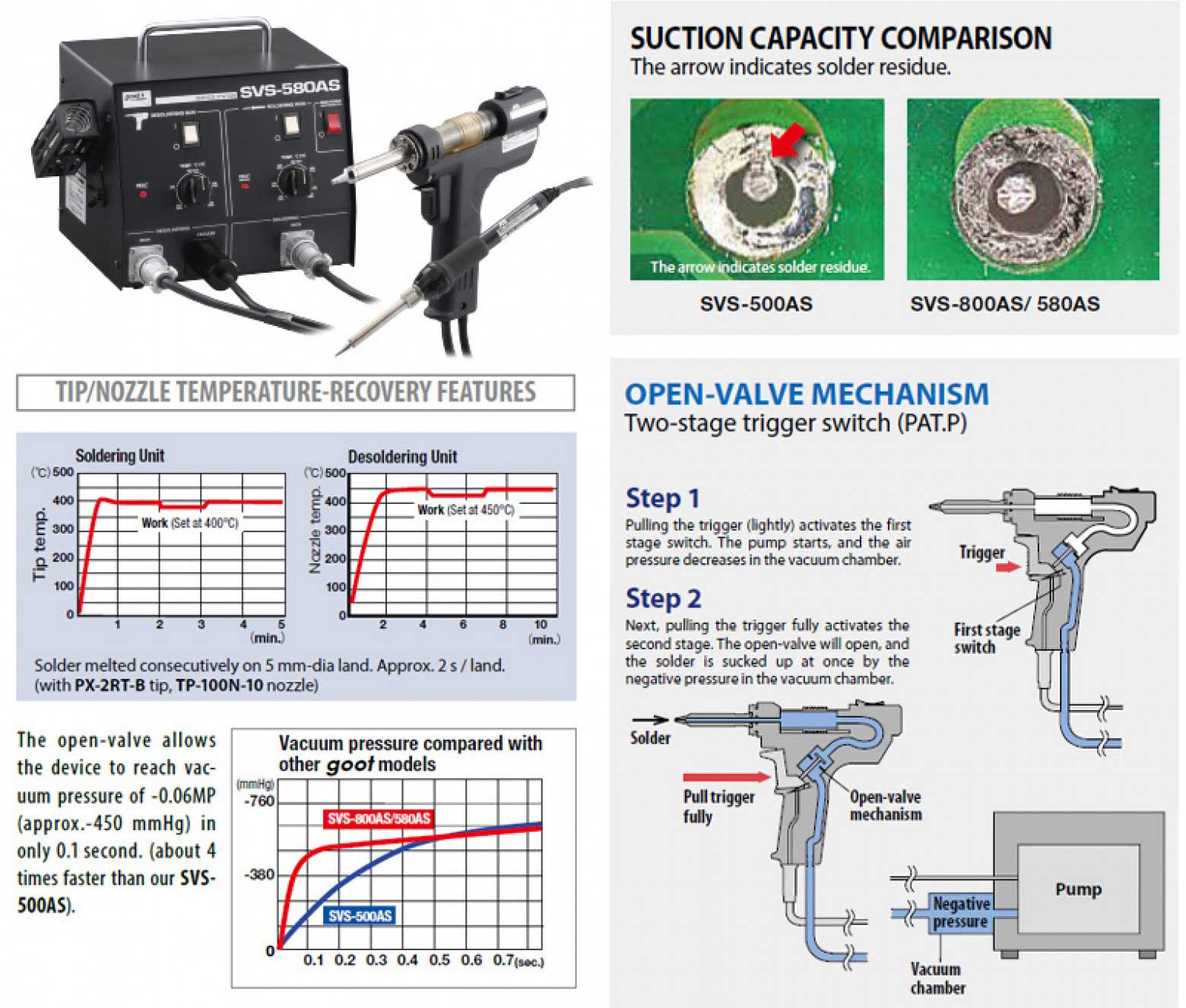

With open-valve mechanism [400% More Suction Capacity, compared with other goot model] Good for a wide range of soldering work, for terminals, connectors and flat ICs [Ceramic Heater with Internal Sensor (soldering & desoldering)] Keep the temperature constant during desoldering [Superior Temperature-Control Circuit] Reduces noise during heater ON/OFF [Zero Volt Switch Circuit] Makes changing the filter easy [Replaceable Cartridge Filter]

Commentary of Functions

Soldering Iron Unit SVS-800AS, SVS-580AS, SVS-500AS

Product Specifications

Specifications

MODEL		SVS-580AS
Voltage		220-240V AC 50/60Hz
Power Consumption
Power Consumption		220-240V (270-300W)
Power Cord Length		1.5m
Temperature Setting Range	Desoldering Unit	250−450˚C
Temperature Setting Range	Soldering Unit	200−480˚C
Insulation Resistance		Over 100MΩ(500V DC)
Vacuum Pump System		Diaphragm system
Vacuum		– 0.08MPa (-600mmHg)
Accessories		Cleaning pin TP-100CP-13 Soldering iron stand ST-76
Total Weight		4.0kg (w/o cord )

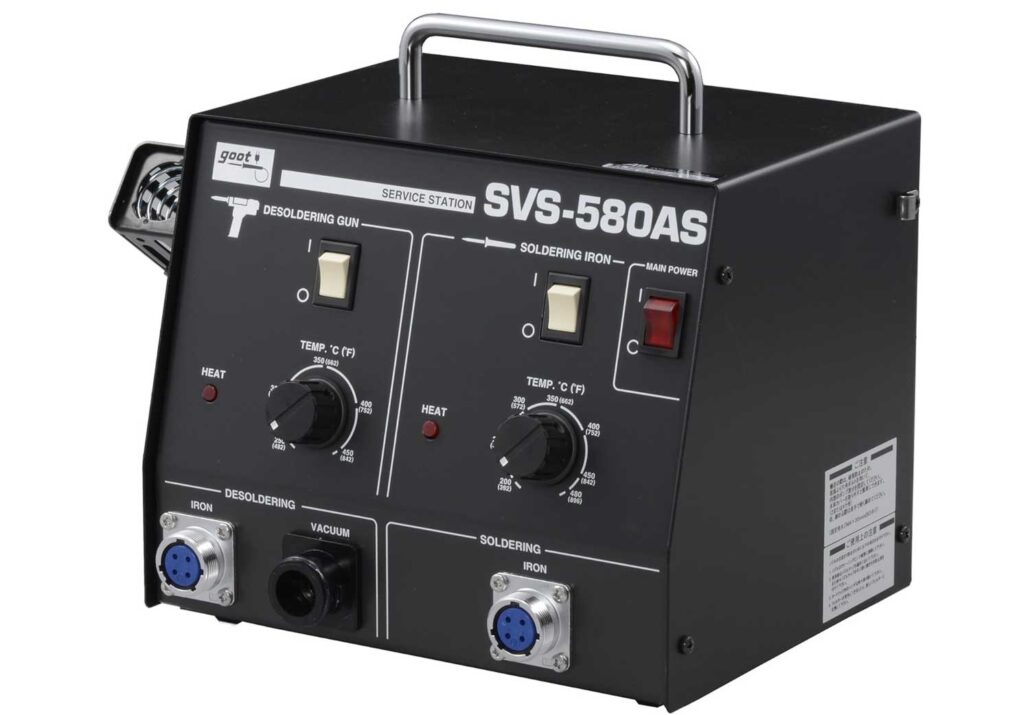

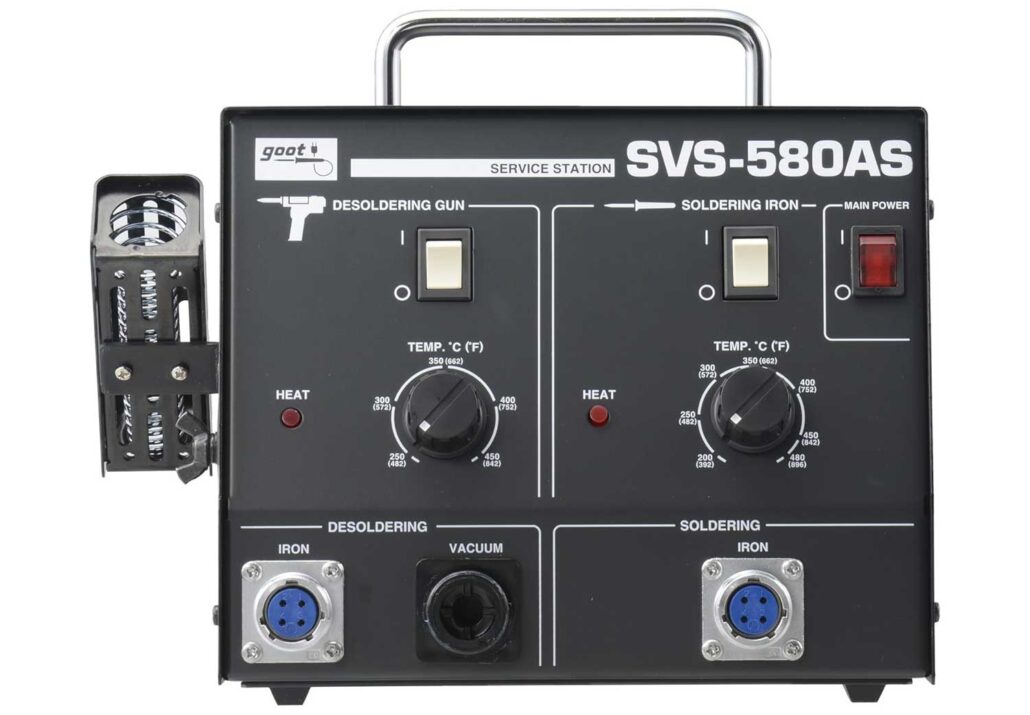

CONTROL BOX

Output Voltage	220-240V AC
Dimensions	205(W) x 170(H) x 160(D) mm
Weight	3.6kg (w/o cord, hose )

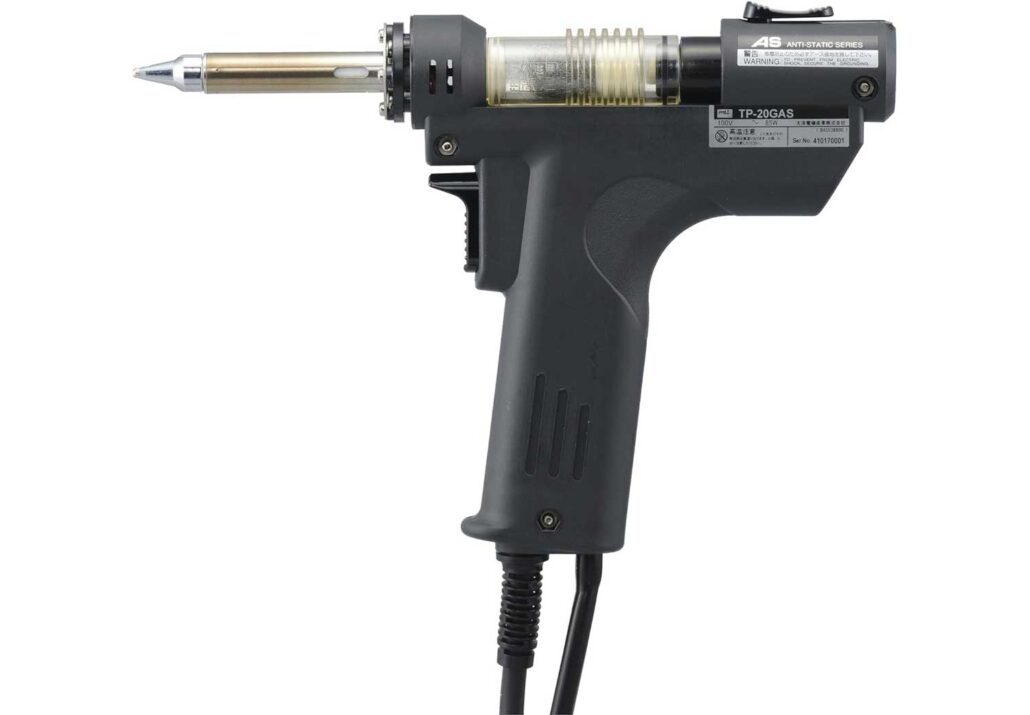

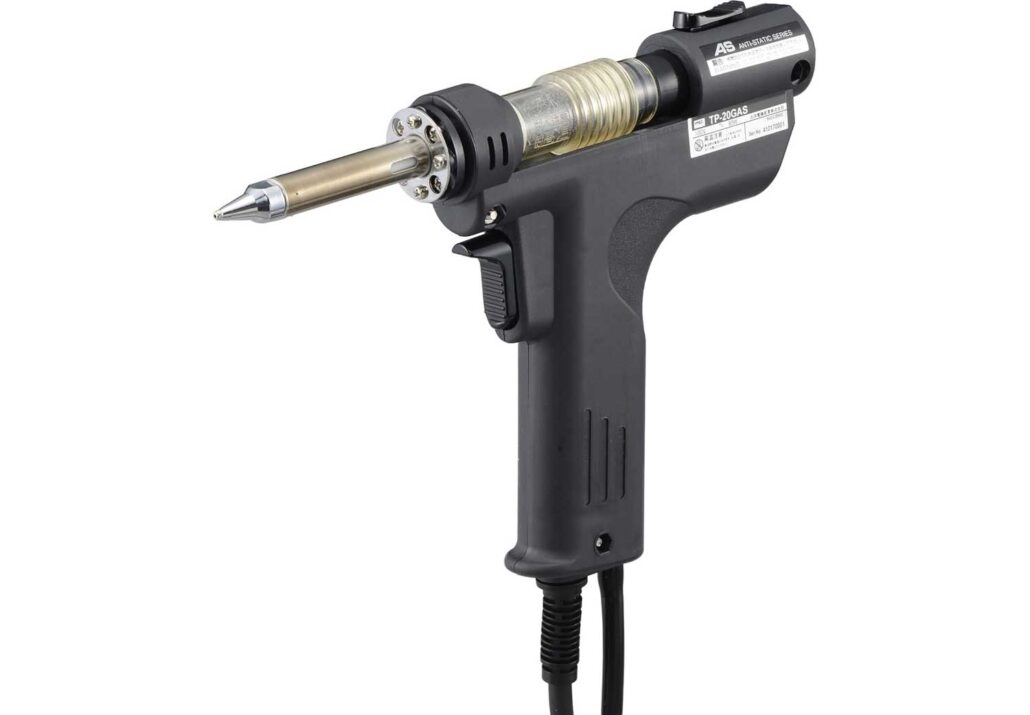

DESOLDERING UNIT

Input Voltage/Power Consumption	220-240V AC 85W
Heater	Ceramic Heater
Cord Length	1.2m
Dimensions	220 x 155mm
Weight	250g (w/o cord, hose )
Standard Nozzle	TP-100N-S5

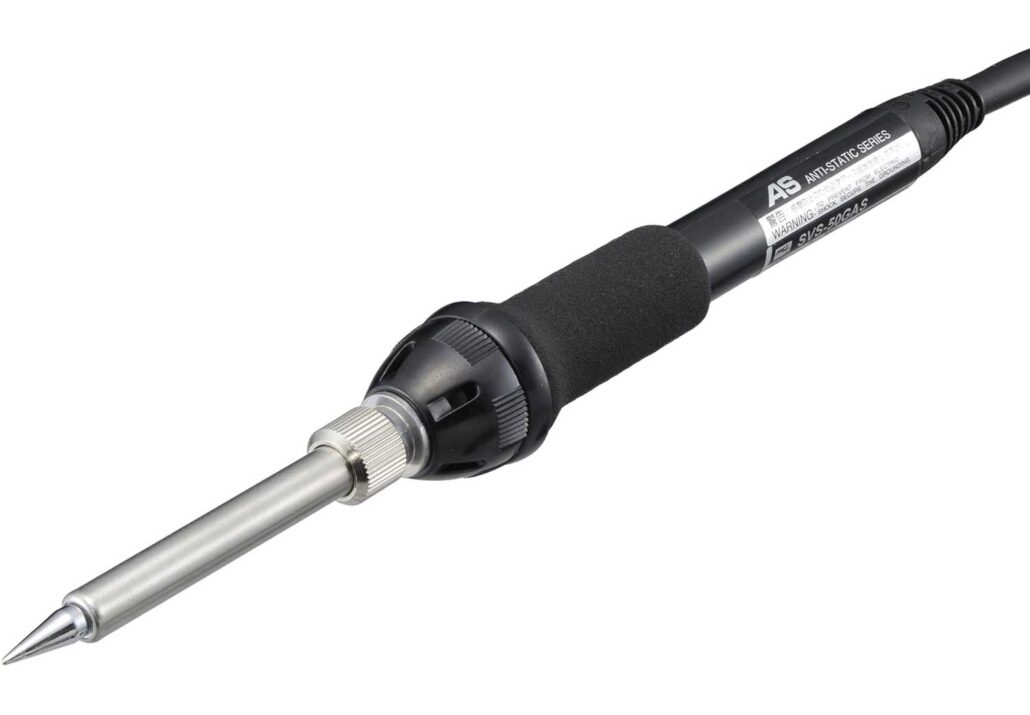

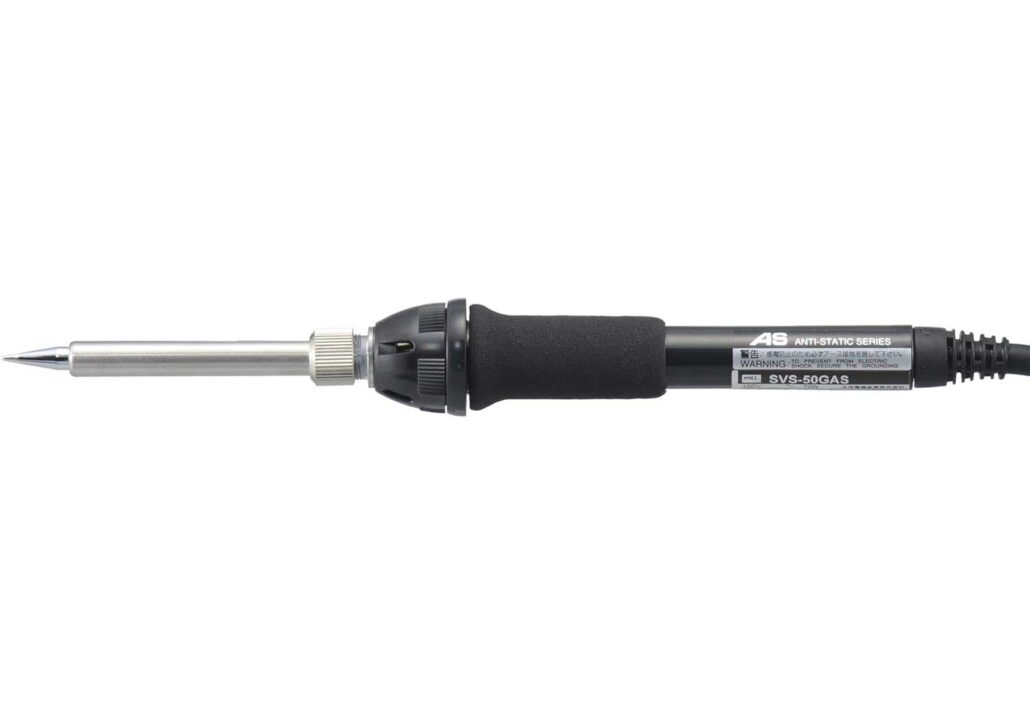

SOLDERING UNIT

Input Voltage/Power Consumption	220-240V AC 70W
Ground Resistance	Less than 2Ω
Leak Voltage	Less than 2mV
Heater	Ceramic heater
Cord Length	1.2m
Length	190mm (with PX-2RT-B w/o cord bushing )
Weight	70g (with PX-2RT-B w/o cord )
Standard Tip	PX-2RT-B
