TP-30 халдаг тугалга сорогч

үнэ: 98,000 төг

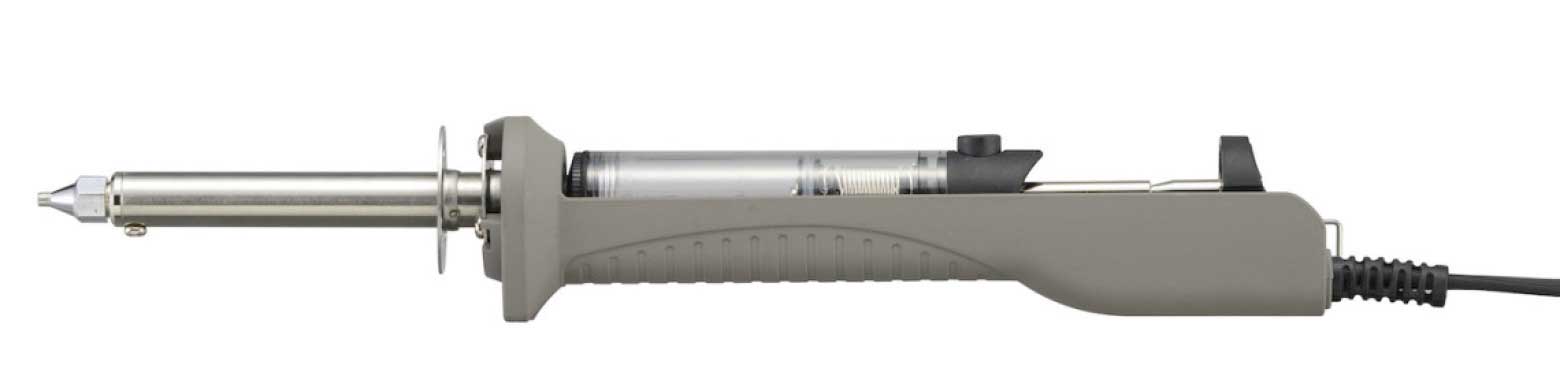

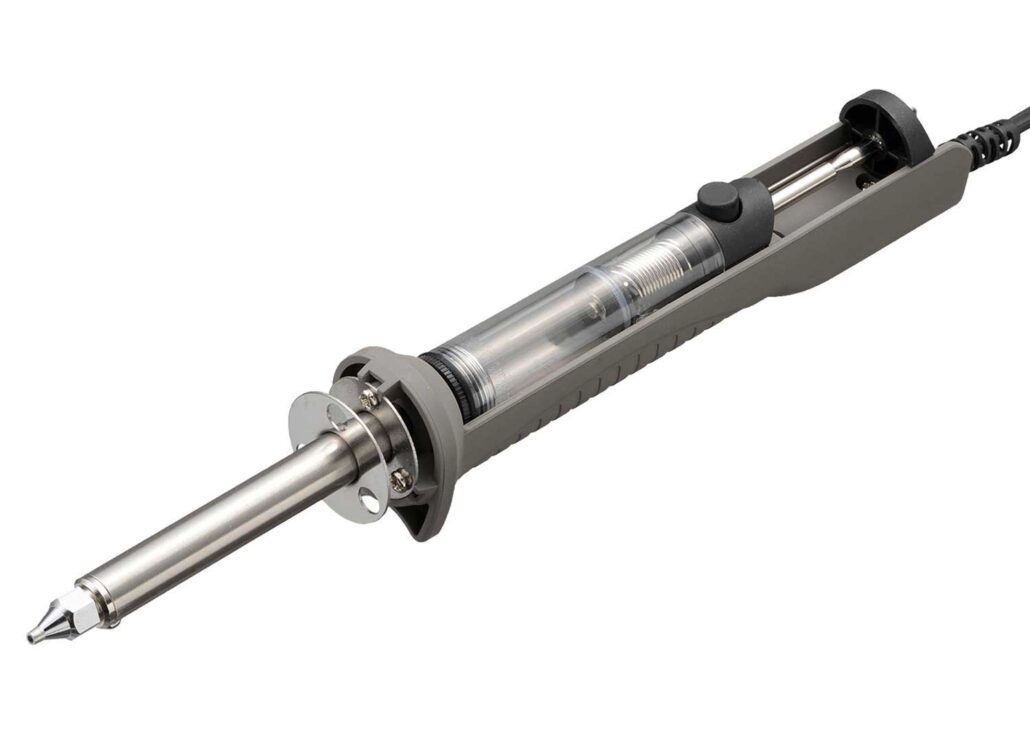

HEATED MANUAL DESOLDERING PUMP TP-30

Heat and suck solder with one hand!

Package Contents	Nozzle TP-30N-18 (Inside Dia.Φ1.8) Cleaning Pin

Package Contents

Nozzle TP-30N-18 (Inside Dia.Φ1.8)

Cleaning Pin

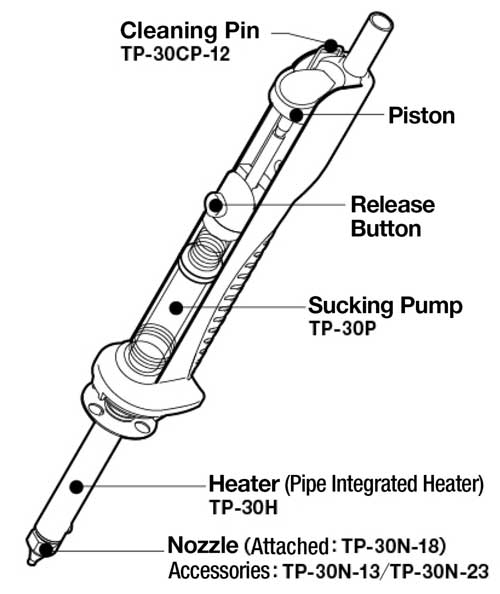

Heated Manual Desoldering Iron

2-in-1 Heat and Suck! 1-handed Operation OK!

Solder is easily removed from through-hole boards. You work more efficiently.

Tip reaches 400 °C or more in 10 minutes [approx.] after powering on, and the soldering iron is ready for use.
(This product can be used in approx. 5 minutes after turning on the power, but for smoothest desoldering, wait approx. 10 minutes for the nozzle to warm up.)

Conventional desoldering requires a desoldering wire or tool in one hand, and a soldering iron in the other.

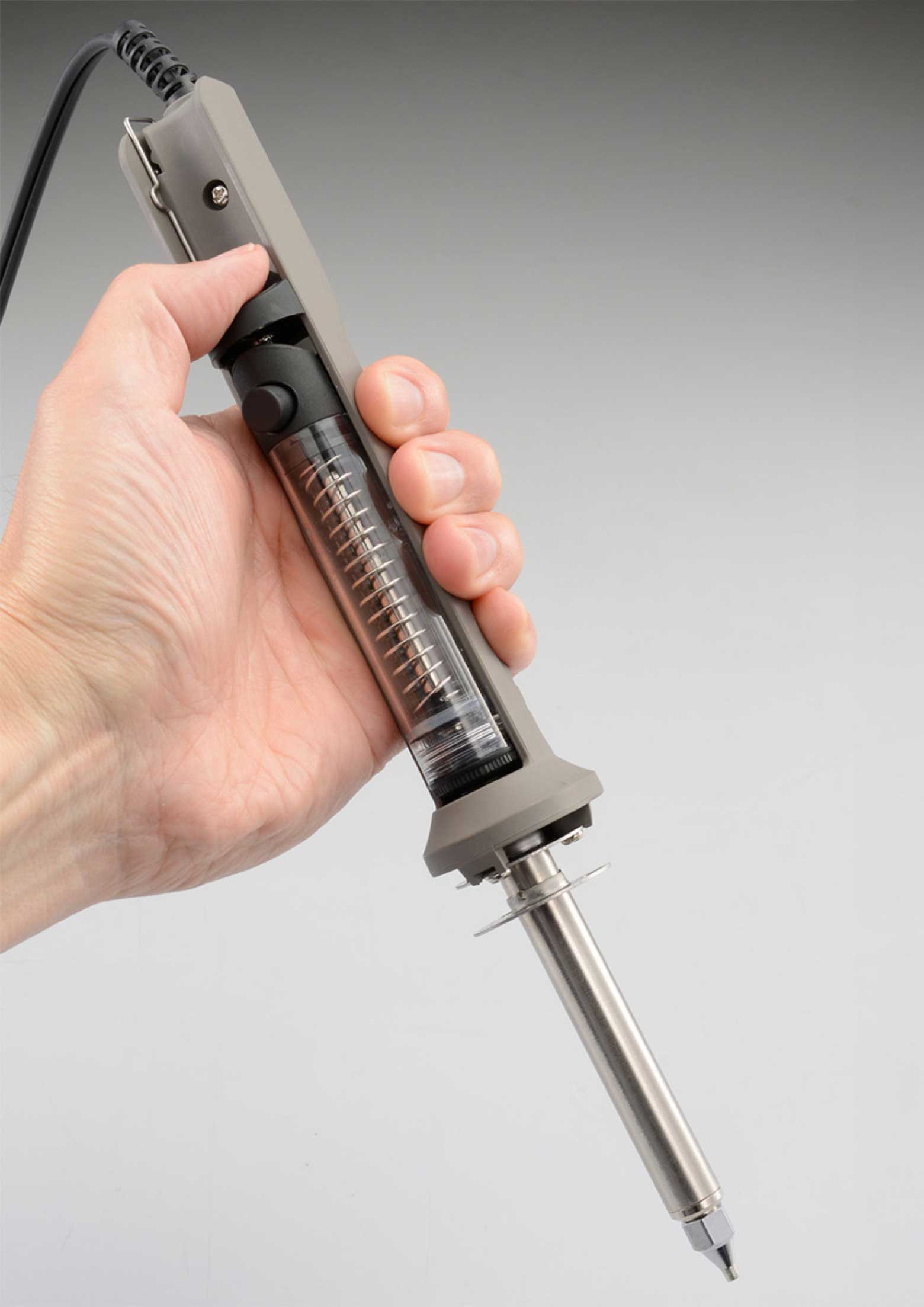

This device melts and sucks solder with just one hand.

Self-standing Grip for Safety

– Self-standing grip with feet prevents contact between desk and nozzle. Our soldering iron stand can also be used. Recommended soldering iron stand: ST-30

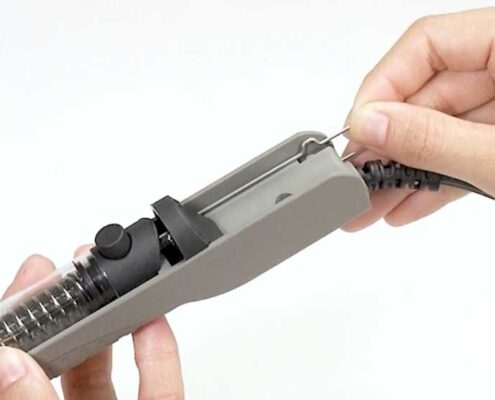

– Cleaning pin can be stored in the body.

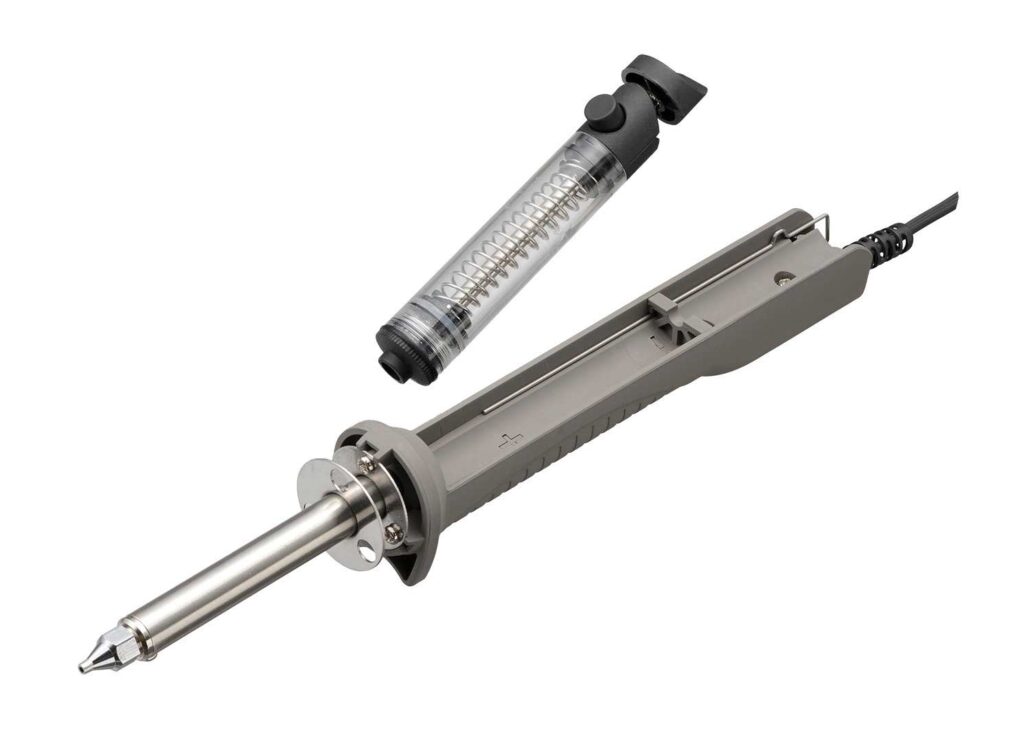

When suction is weak, insert the attached cleaning pin, clean the nozzle and suction pump, and remove the solder stuck in the tube.

*When using the cleaning pin, be careful not to burn yourself while the power cord is unplugged.

How to Use

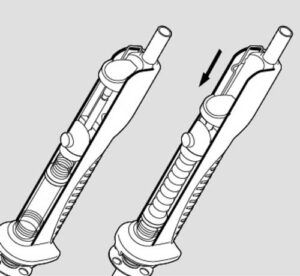

1. When the nozzle is hot enough, push the piston down until it locks.

*When pushing the piston, point the nozzle to a scrap receiver, etc. Hot solder or gas may eject.

2. Touch the nozzle to the solder you want to remove. Be gentle. Move it in a circular motion to melt the solder evenly.

3. When solder is melted, press the release button. Melted solder is sucked in.

Usage Precautions

– Smoke and smell appear on first use, but stop after a while. It won’t happen next time.
– Submersion in water and rapid cooling can cause damage, so cool naturally.
– Do not tighten the nozzle while it is hot as this may cause damage.

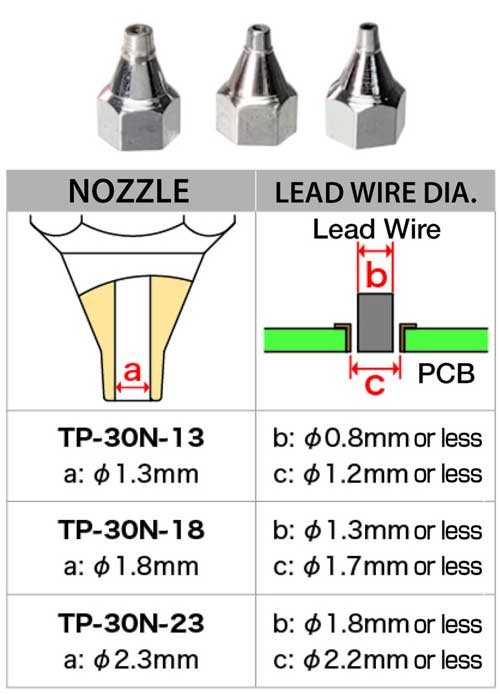

3 Nozzles with Different Diameters (TP-30N-18 only included)

Three nozzles with different inner diameters for efficient work. Choose the nozzle according to the component. TP-30N-18 is initially installed.
