UT515B тусгаарлагчийн эсэргүүцэл хэмжигч 10000В

үнэ: 5,000,000 төг

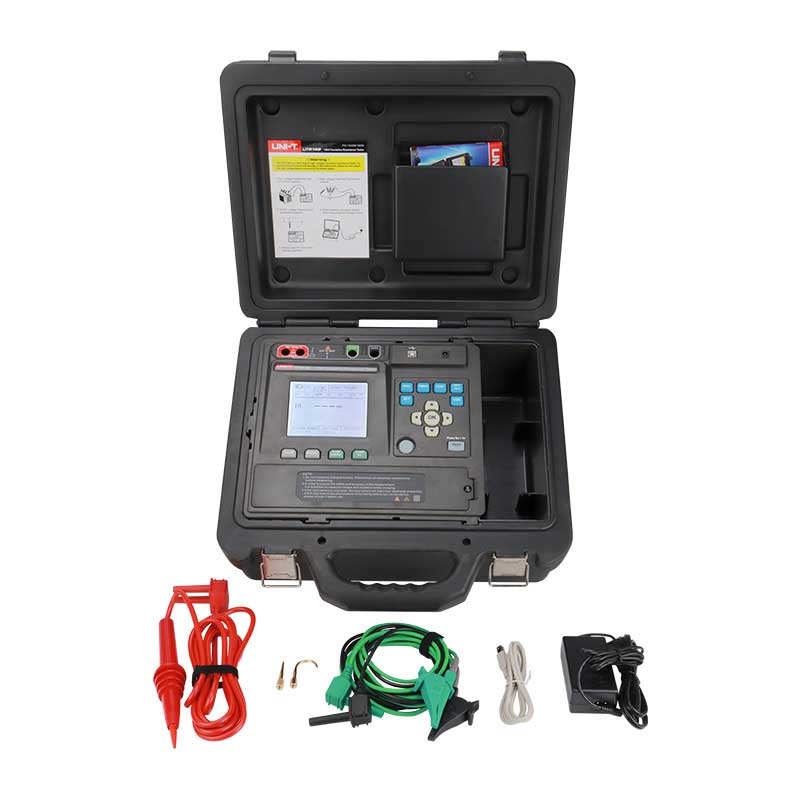

UT515B 10KV Insulation resistance tester

This is a digital high-voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, and 10000V. It allows fine-tuning voltage with a 10% step. Test data can be saved in the instrument’s memory and transferred to a PC via a USB cable. It is widely used to measure insulation resistance in transformers, cables, and electrical equipment, as well as in high-voltage power, telecommunications, meteorology, and oil fields.

Certifications: row

1. Insulation resistance(10KV): 10TΩ

2. DAR & PI function

3. Stepping voltage: 10% for each range

4. Data storage: 999 sets

5. PC software analysis

6. Recharge lithium battery: 14.8V/5200mAh

7. Dual display: IR + A

8. Auto discharge

9. Backlight

Specifications

Function	Range	resolution	Accuracy	input protection
Insulation resistance	500V (0.50MΩ~500GΩ)	0.01MΩ	0.50MΩ~4.99G: 5%+5 5.00G-49.9GΩ: 10%+10 50.0GΩ- 500GΩ: FYI	Stepping voltage: 400V~600V; 10% of the range
		0.1MΩ
		1MΩ
		0.01GΩ
		0.1GΩ
		1GΩ
	1000V (1.00MΩ~1000GΩ)	0.01MΩ	1.00MΩ~9.99G: 5%+5 10.0G-99.9GΩ: 10%+10 100GΩ- 1000GΩ: FYI	Stepping voltage: 500V~1200V; 10% of the range
		0.1MΩ
		1MΩ
		0.01GΩ
		0.1GΩ
		1GΩ
	2500V (2.50MΩ~2.5TΩ)	0.01MΩ	2.50MΩ~24.9G: 5%+5 25.0G-249GΩ: 15%+10 250GΩ- 2.5TΩ: FYI	Stepping voltage: 1000V~3000V; 10% of the range
		0.1MΩ
		1MΩ
		0.01GΩ
		0.1GΩ
		1GΩ
	5000V (5.00MΩ~5.0TΩ)	0.01MΩ	5.00MΩ~49.9G: 5%+5 50.0G-499GΩ: 15%+20 500GΩ- 5.0TΩ: FYI	Stepping voltage: 2500V~6000V; 10% of the range
		0.1MΩ
		1MΩ
		0.01GΩ
		0.1GΩ
		1GΩ
	10000V (10.0MΩ~10TΩ)	0.01MΩ	10.0MΩ~99.9G: 10%+10 100G-999GΩ: 10%+10 1000GΩ- 10TΩ: FYI	Stepping voltage: 5000V~10000V; 10% of the range
		0.1MΩ
		1MΩ
		0.01GΩ
		0.1GΩ
		1GΩ
output voltage	500V	1V	0%—+20%	30v
	1000V	1V
	2500V	1V
	5000V	1V
	10000V	1V
Rated current	1mA		0%—+20%
	1mA
	1mA
	1mA
	0.15~1.2mA
Voltage measurement	DC: ±30V~±1000V	1V	±(3%+5)	1100V DC 800V AC
	AC: 30V~750V (50~60Hz)	1V	±(3%+5)
Features
Display count	9999
Short-circuit current	Output voltage at 500V/1000V: ≥3.7mA; Output voltage at: 2500V/5000V/10000V: ≥5mA
IR stepping voltage	√ (10% of the range)
Leakage current	0.01nA ~ 5.00mA，±(10%+5)
DAR	0.00～999: ±2dgt
PI	0.00～999: ±2dgt
Compare function	√
Timing measurement	√
Auto discharge	√ (with discharge process)
Output protection	√ (the energied target voltage >30V; indicating the “energized” icon)
Data storage	999 set
Data transmission	√ (all data; via USB cable)
Powr on/off	√ (Manual/Auto )
OL & low battery indication	√
Testing indication	Long press to turn on; short press again to turn off
Backlight	Auto backlight
Rechargeable battery	14.8V/5200mAh lithium battery pack
Power adaptor	Input: (AC)85V~250V/50~60Hz; Output: 2A/16.8V
Operation temp.	-10°C~50°C
Storage temp.	-20°C~60°C
Working humidity	≤85% RH
Storage humidity	≤75% RH
Working altitude	≤2000m
Over voltage category	CAT IV 600V
Standard	EN 61010-1
General characteristics
Product color	Grey
Product weight	Around 7.4kg

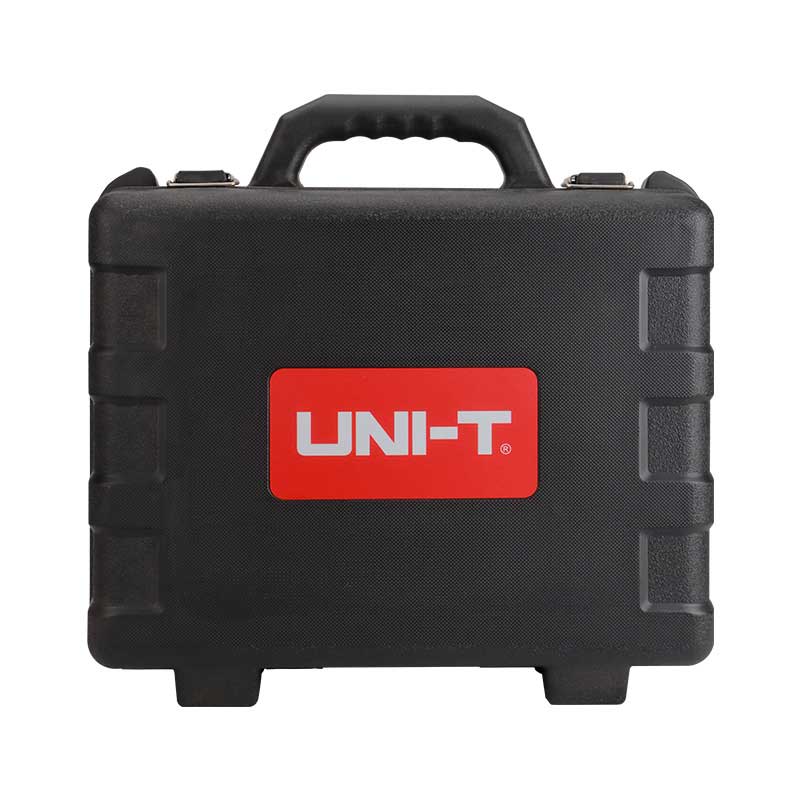

Product dimension	Tool box: 432427202mm
Standard accessories	power adaptor 1pcs; Test lead 3pcs (red/black/green); USB cable 1pcs; Manual 1pcs
SPQ	1pcs/carton
Dimension (SP)	505X275X505mm
Gross weight (SP)	Around 9.8kg
