Багаж хэрэгсэл > Хэмжих хэрэгсэл > Сүлжээний тестер > UT691-10 шилэн кабелын гэмтэл хайгч лазер 10мВт 8-10км

UT691-10 шилэн кабелын гэмтэл хайгч лазер 10мВт 8-10км

үнэ: 105,000 төг

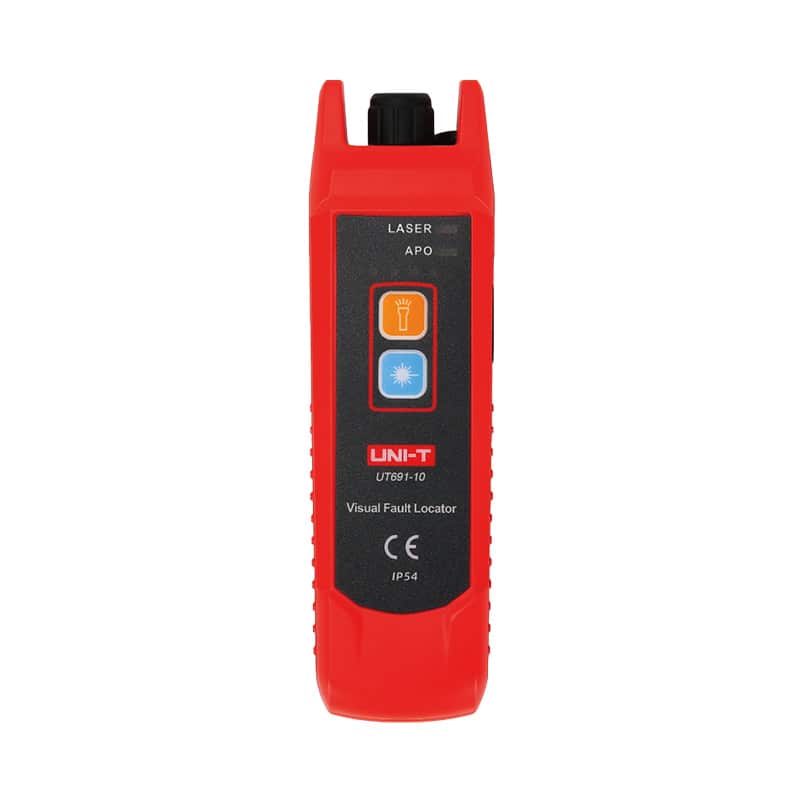

UT691-10 Visual Fault Locators

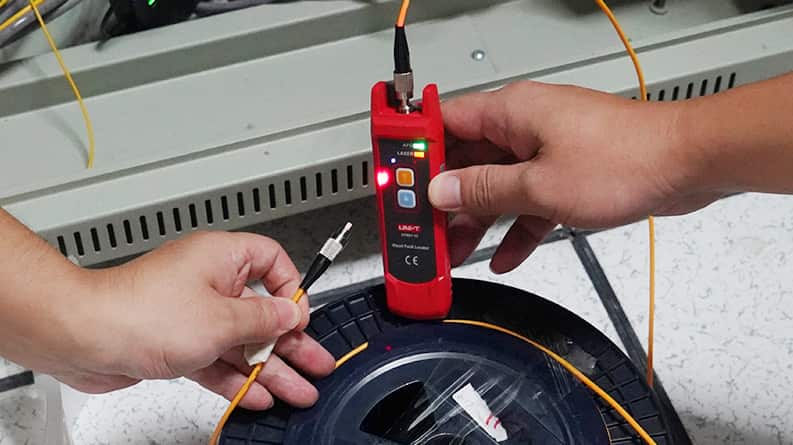

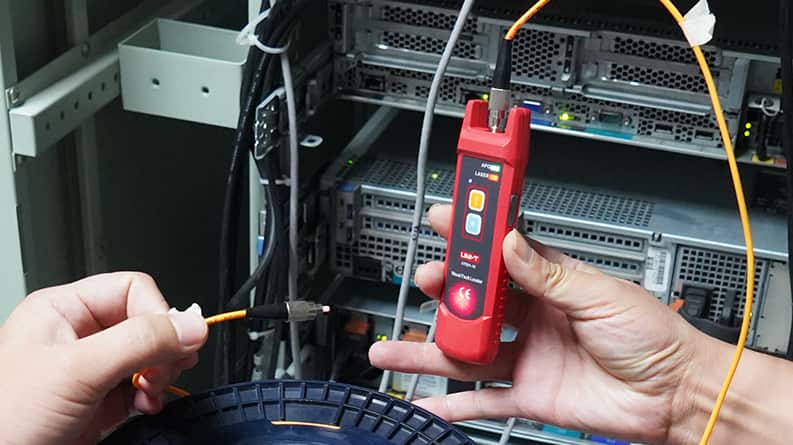

UT691 series visual fault locator is designed for optical ﬁber fault detection and locating, end to end optical ﬁber identiﬁcation and more. It is IP54 rated, uses 650nm visible redlight with 2 emitting modes. With the functions of APO, battery statusindicator and ﬂashlight, it can be widely used in the ﬁelds of optical cable construction and maintenance, optical ﬁber communication or sensing, and optical CATV.

Certifications: CE, UKCA

● Non-slip humanized design

● Equipped with LED flashlight

● 3.7V 1050mAh rechargeable lithium battery

● Battery level indicator shows, laser indicator shows

● Red light wavelength 650+/-20nm

● 2.5mm universal connector

● Automatic shut-down

● IP54 protection level

Specifications	UT691-10
Laser output power	≥10mW
Optical ﬁber length range	8~10km
Wavelength of redight	650±10nm

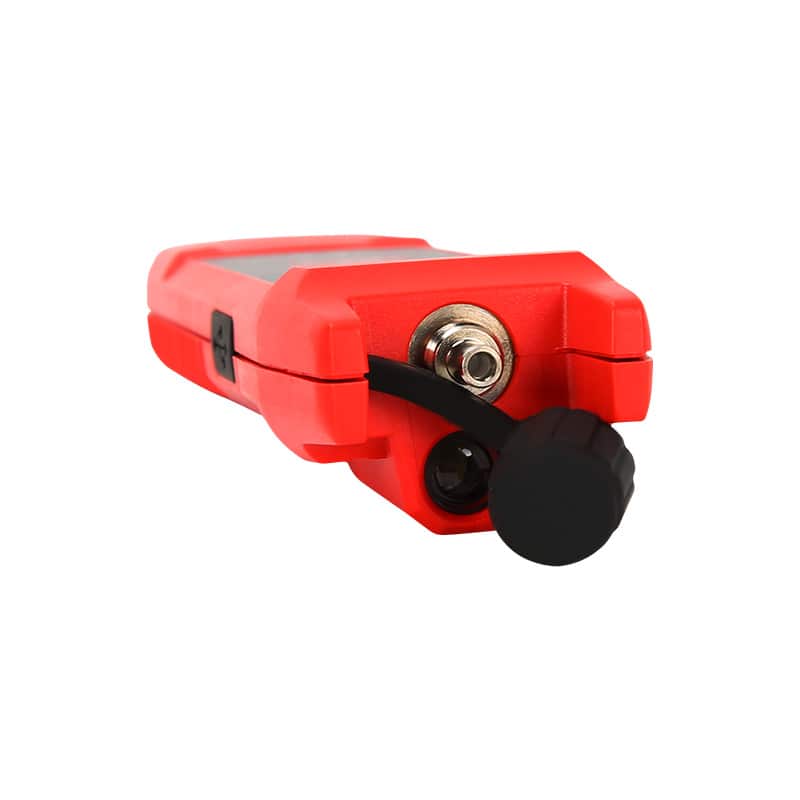

Optical ﬁber adapter	2.5mm FC general connector
Battery type	3.7V 1050mAh polymer lithium battery
Battery life	＞7h
Battery status display	The battery status will be shown by 4 blue LED (not in ﬂashlight)
Green indicator	Indicates auto power oﬀ state which LED will ﬂash white light for 3 times
Laser mode	Continuous mode/Pulse mode
Charge voltage and current	DC 5V, < 1A
APO	15min auto power oﬀ (manual adjustable)
Warning symbol	√
Warning	√
Key press test	＞5000 times
Drop test	1m
General Characteristics
Power	1050mAh rechargeable battery
Product color	Red and grey
Product net weight	62g
Product size	130mm x 38mm x 27mm
Standard individual packing	Gift box, English manual
