UT661D хоолойн бөглөрөл илрүүлэгч

үнэ: 270,000 төг

UT661 Series Pipeline Blockage Detectors

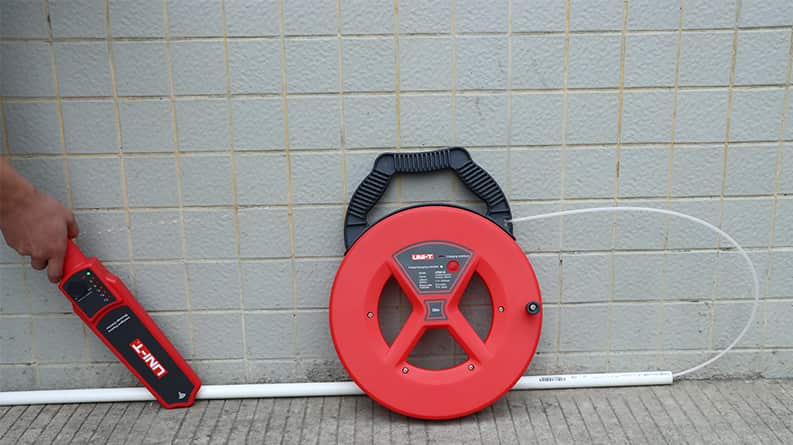

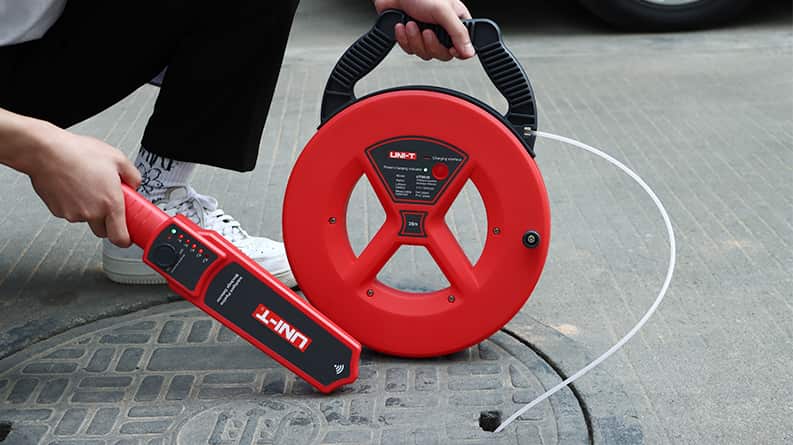

The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.

Certificates: CE, RoHS

● The location of the blockage in the pipe can be detected
● Measurable pipe material: plastic pipes, metal pipes

● Maximum detection distance(depth): 50cm
● Buzzing prompt and Flash prompt

Specifications of UT661 Series Pipeline Blockage Detectors

Specifications	UT661D
Transmitter	Yes
Signal wire	35m
Receiver	Yes
Maximum detection distance（depth）	50cm
Transmitter current	Shutdown current: <2uA, working current: 230~310mA
Receiver current	Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm)
Charging current	450~550mA
Test the output sound at a distance of 1cm	>93dB
Test the output sound at a distance of 0.5m	>75dB
Battery duration	10 hours
Operting temperature and humidity	-20°C~60°C, 10~80%RH
Measurable pipe material	Plastic pipes, metal pipes
Buzzing prompt	Yes
Flash prompt	Yes
Low battery indication	Yes
Waterproof grade	Probe waterproof IP67
General Characteristics
Transmitter battery	Built-in lithium battery (3.7V 1800mAh)
Receiver battery	Built-in lithium battery (3.7V 1800mAh)
Color	Red and grey
Weight	Transmitter: 1.42KG Receiver: 0.26KG
External dimension	Transmitter: 38x30x42mm Receiver: 40x38x80mm
Standard accessories	Charging cable, Probe kit
Standard individual packing	Gift box, English manual, Warranty card
