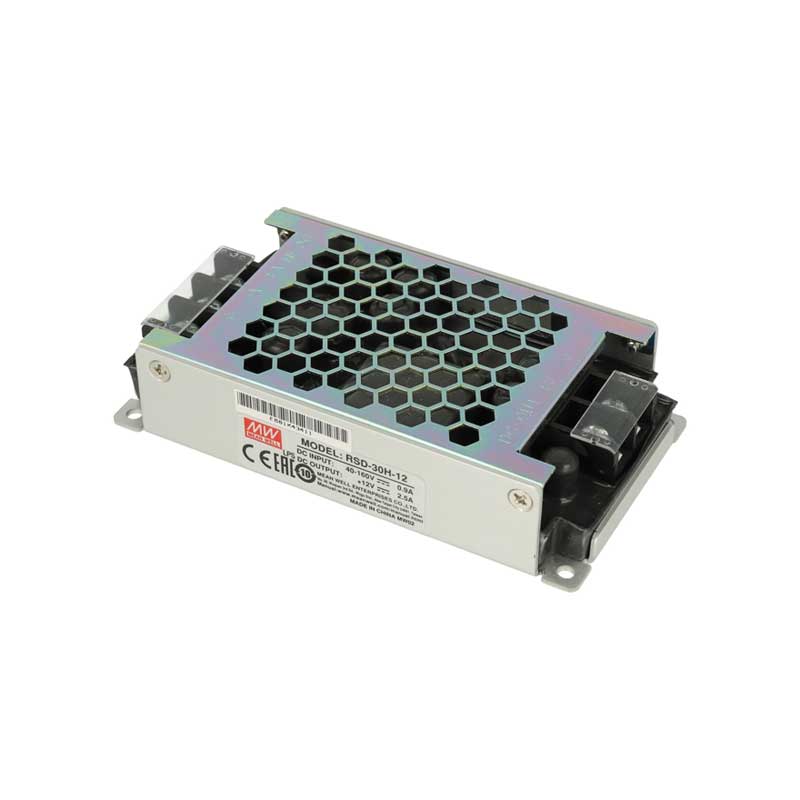

RSD-30H-12 тэжээлийн блок 12V 2.5A DC/DC
- үнэ: 160,000 төг
12V 2.5A 30W Reliable Railway Enclosed DC-DC Converter 40-160 Vin
Features
- - Compliance to EN50155 and EN45545-2 railway standard
- - Ultra compact and 1U low profile (25mm)
- - 4:1 wide input range
- - No minimum load required
- - Protections: Short circuit, overload, over voltage, input reverse polarity
- - 4000 VDC I/O isolation
- - Half encapsulated, cooling by free air convection
- - -40 to +70°C wide working temperature
- - Built-in constant current limiting circuit
- - LED indicator for power on
- - Screw terminals
Specifications
- – Output voltage: 12 VDC
- – Output current: 2.5 Amps
- – Rated power: 30 Watts
- – Input voltage range: 40 to 160 VDC
- – Efficiency: 89%
- – Line regulation: 0.3%
- – Load regulation: 0.3%
- – Ripple & noise: 60 mVp-p
- – Size: 4.45″L x 2.36″W x 0.98″H
- – Agency approvals: CE
Applications
- – Bus, tram, metro or railway systems
- – Highly vibrating, highly dusty, extremely low or high temperature harsh environment
- – Wireless network
- – Telecom or Datacom system
- – Industry control system
| Specification | Value |
|---|---|
| Number of Outputs | 1 |
| Output Voltage | 12 VDC |
| Additional Output Voltages (VDC) | N/A |
| Output Current | 2.50 A |
| Input Voltage Range | 40 VDC to 160 VDC |
| Maximum Input Current | 0.35 A |
| Output Connector Type | Screw Terminal Block |
| Package | Railway Enclosed |
| Agency Approvals | UL, CUL, CB, CE, EN, EAC |
| Power Rating | 30 W |
| Manufacturer Series | RSD-30 |
| Product Type | Isolated Railway DC to DC Converter SMPS |
| Efficiency | 89% |
| Input Voltage | 110 VDC |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 55°C |
| Pins | 4 |
| Length | 113mm |
| Width | 60mm |
| Height | 25mm |
| Color | Silver |
CERTIFICATE:
- – Railway Certificate (2024.01.10)
- – CB/UL Certificate (2020.05.25)
- – EAC Certificate (2024.07.05)
- – EMC Certificate (2022.02.18)
- – CE Declaration (2022.02.18)
- – UK Declaration (2022.02.18)
