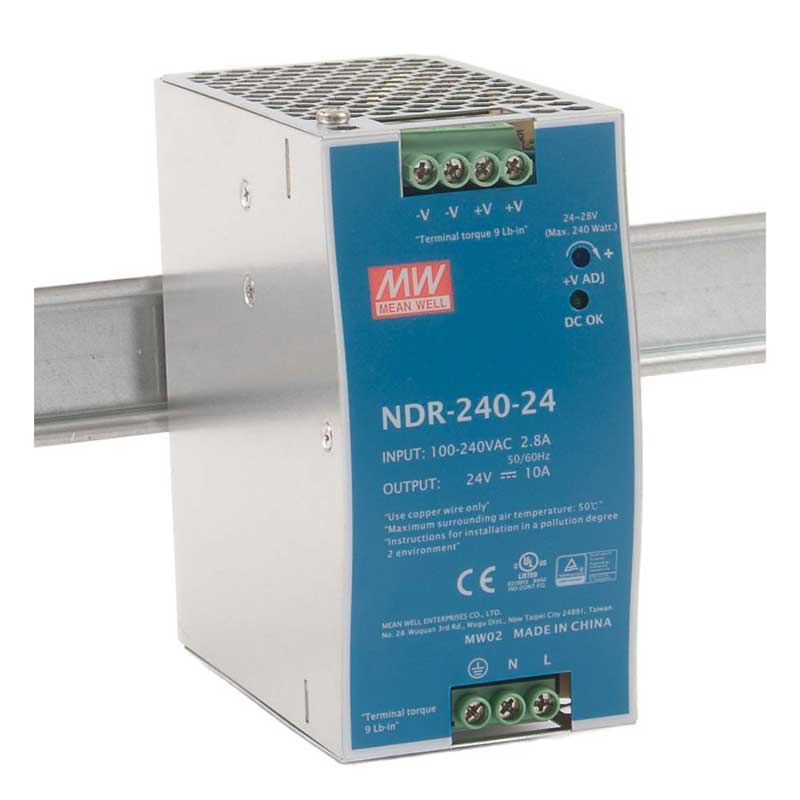

NDR-240-24 DIN Rail тэжээл блок 24В 10А

үнэ: 320,000 төг

24 Volt 10 Amp 240 Watt Industrial DIN Rail Power Supply

The NDR-240 is an economical slim 240 watt DIN rail power supply series that can be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make NDR-240 a very competitive power supply solution for industrial applications.

Features

– Universal AC input / Full range (90-264 VAC)
– Built-in active PFC function
– Protections: Short circuit / Overload / Over voltage / Over temperature
– Cooling by free air convection
– Can be installed on DIN rail TS-35/7.5 or 15
– UL 508 (industrial control equipment) approved
– EN61000-6-2 (EN50082-2) industrial immunity level
– 100% full load burn-in test

Specification	Value
Output Voltage	24 VDC
Output Current	10 A
Power Rating	240 W
Input Voltage	90 VAC to 264 VAC
Input Frequency	47 Hz to 63 Hz
Output Connector Type	Screw Terminal Block
Agency Approvals	UL, CUL, TUV, CB, CE, EN, EAC
Low Power Source (LPS)	No
PFC Function	Yes
Additional Output Voltages (VDC)	N/A
Maximum Input Current	2.5 A
Manufacturer Series	NDR-240
Efficiency	88.5%
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	70°C
Color	Silver
Width	63mm
Height	125.2mm
Depth	113.5mm
Number of Outputs	1
