SkyRC iMax B6AC v2 Professional Balance Charger/ Discharger

  • үнэ: 240,000 төг

Part number: SK-100008-11
Specifications:
- AC Input Voltage: 100-240V
- DC Input Voltage: DC11-18V
- Circuit Power: Max Charge: 50W
- Max Dischage: 5W
- Charge Current Range: 0.1-6.0A
- Discharge Current Range: 0.1-2.0A

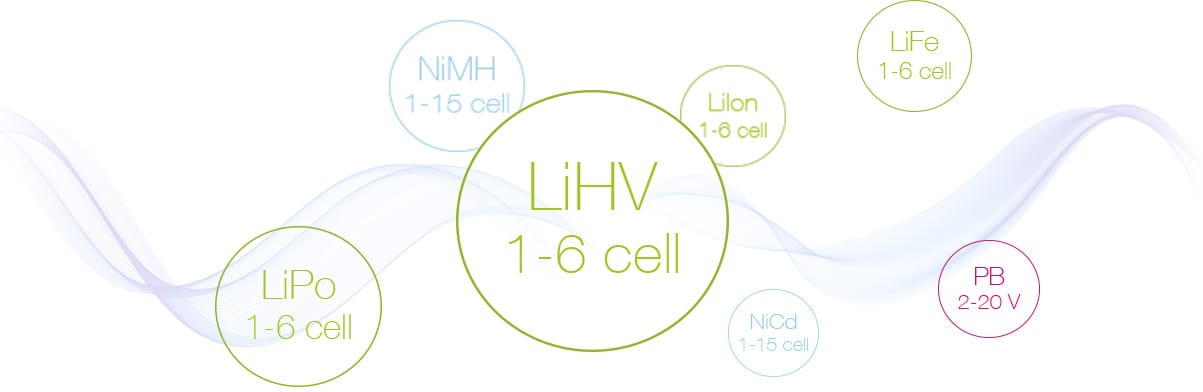

- LiPo/LiFe/LiIon Cells: 1-6S
- NiMH/NiCd Cells: 1-15S
- Pb battery Voltage: 2-20V
- Net Weight: 632g

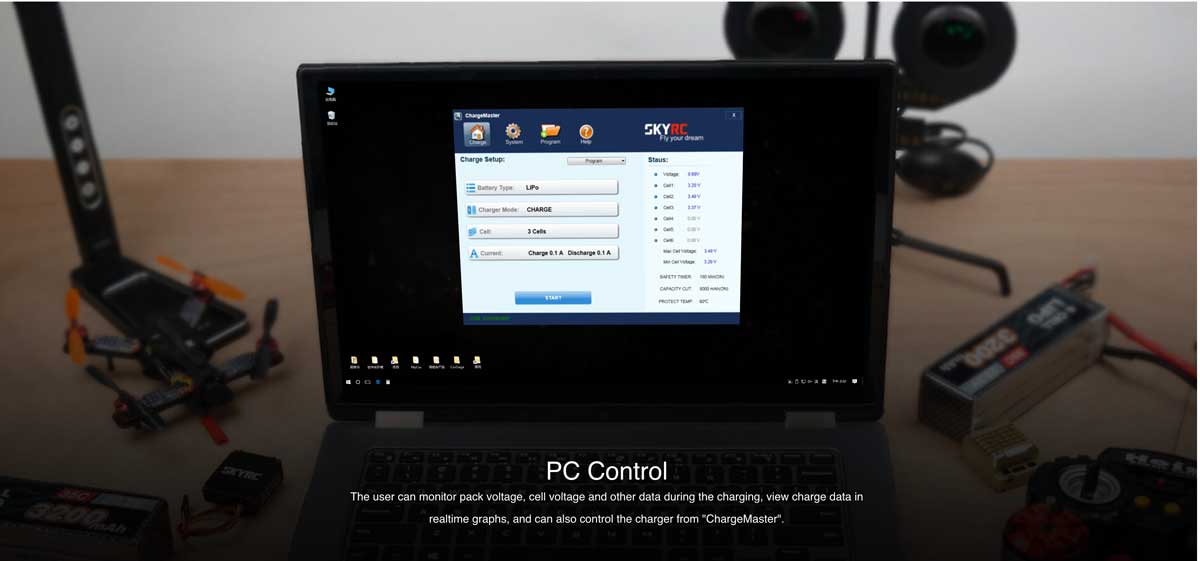

SKYRC B6AC V2 is the upgraded version for well-known iMAX B6AC. Compared with iMAX B6AC, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What’s more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than V1.
SKYRC B6AC V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium High Voltage,Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.

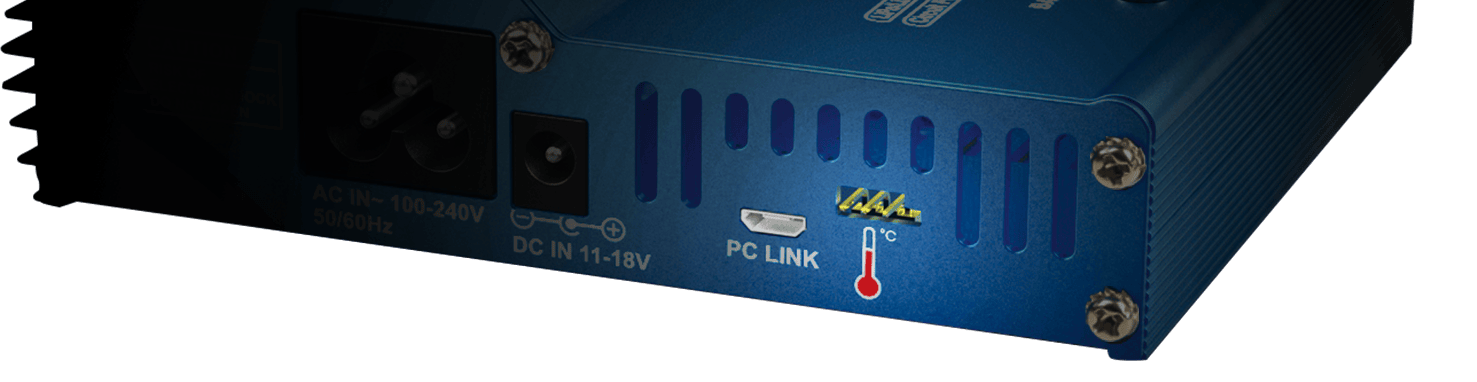

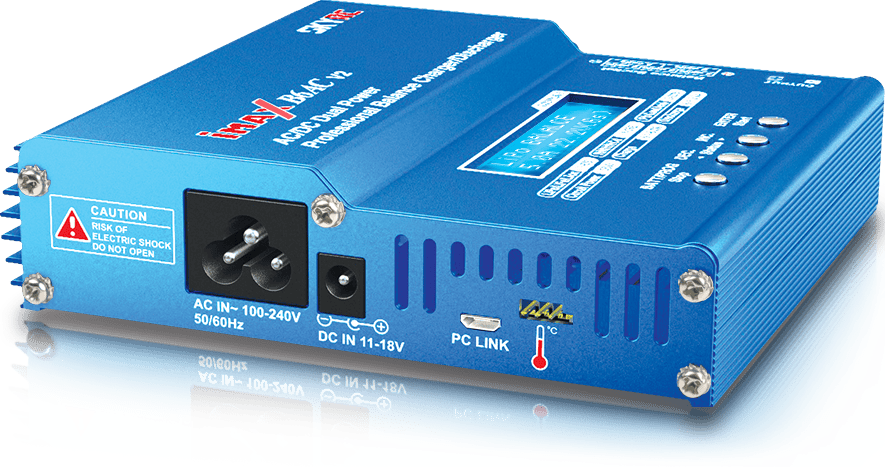

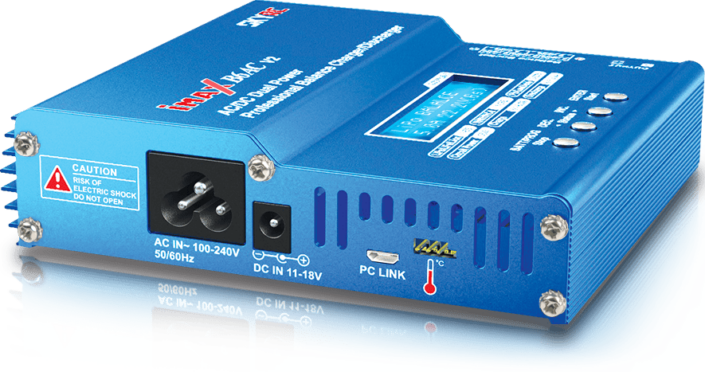

Dual Power AC/DC Input

Temperature Probe Socket
If the temperature limit is reached, the process will be terminated.
*This function is available by connecting optional temperature probe, which is not included in the package.
*Temperature Probe SK-600040

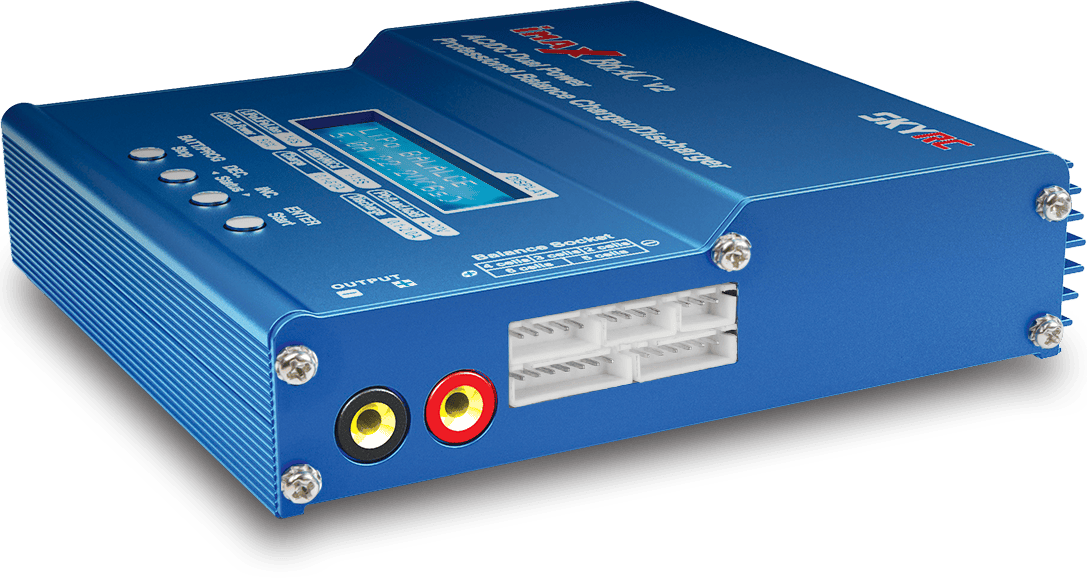

2-6S XH Plug-in Balance Sockets

LiHV Mode Available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.

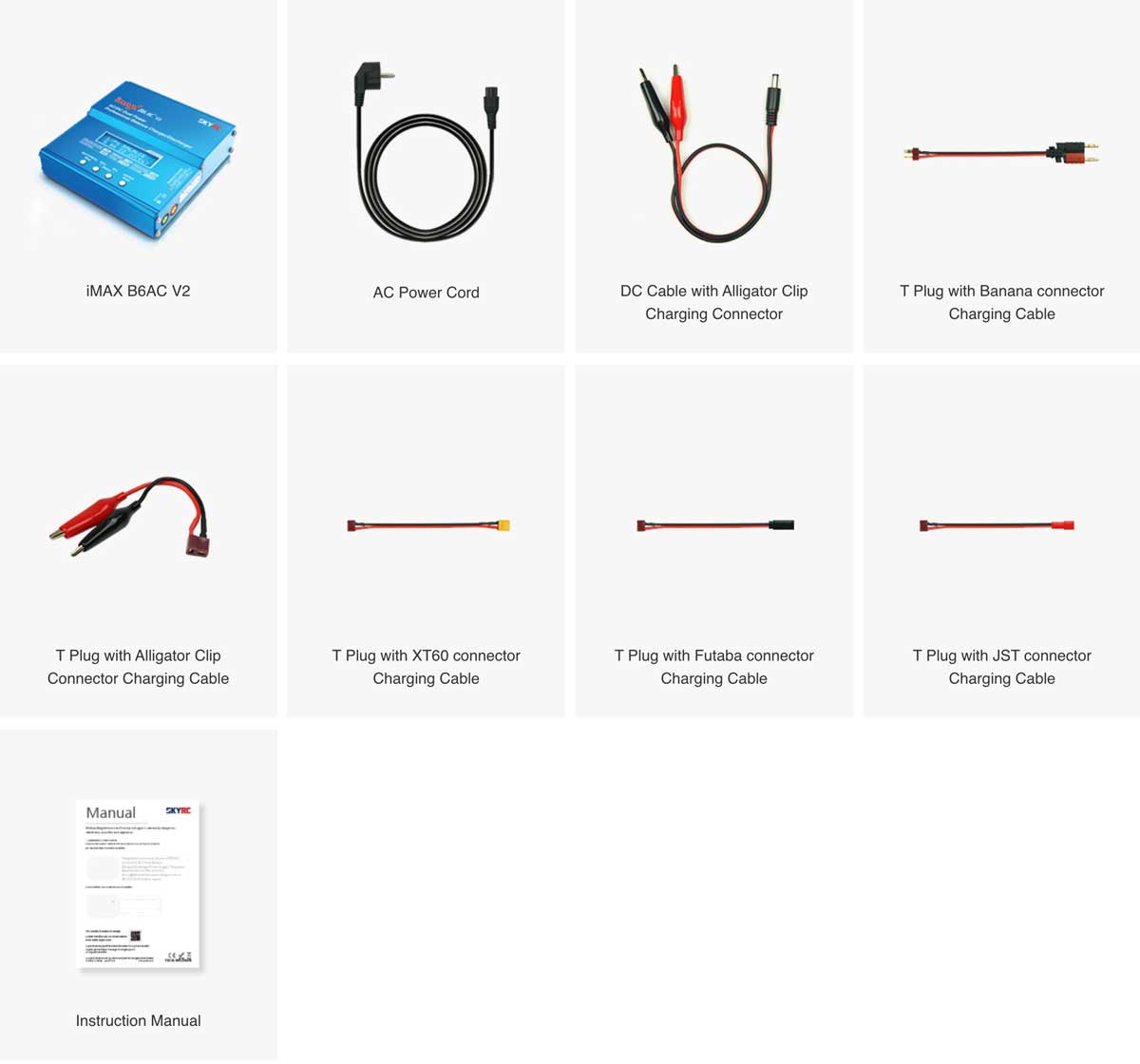

What’s in the Box:

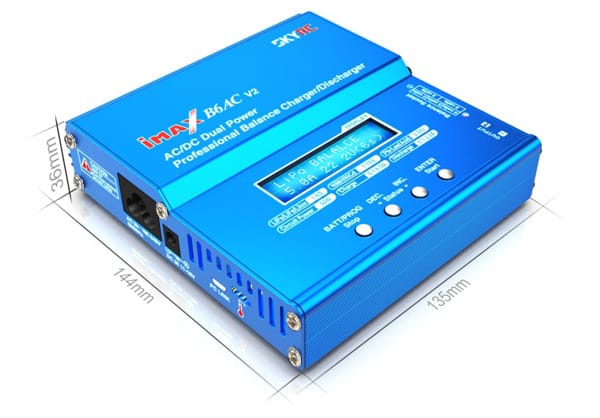

Size
Length : 144mm
Width  : 135mm
Height : 36mm
