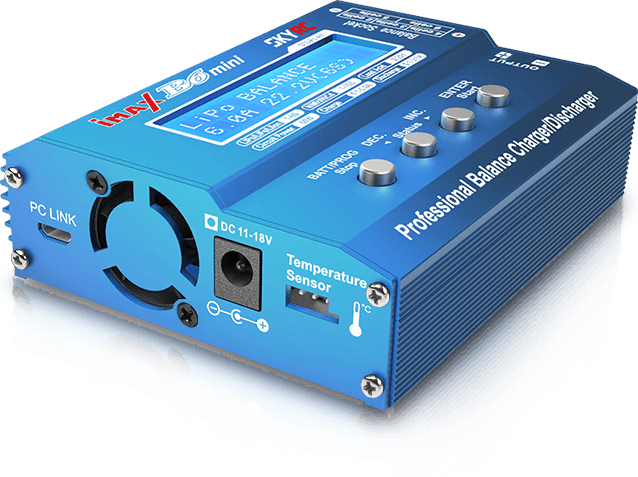

SkyRC iMax B6mini Charger
- үнэ: 160,000 төг
Part number: SK-100084-04
Specifications:
- Input Voltage: DC11-18V
- Circuit Power: Max Charge: 60W
- Max Dischage: 5W
- Charge Current Range: 0.1-6.0A
- Discharge Current Range: 0.1-2.0A
- LiPo/LiFe/LiIon Cells: 1-6S
- NiMH/NiCd Cells: 1-15S
- Pb battery Voltage: 2-20V
- Net Weight: 233g
As an upgraded version of well-known IMAX B6 charger, SkyRC IMAX B6 mini is smaller but with bigger power, and new features and functions are integrated. What’s more, users could connect it to PC for PC control and firmware upgrade, and use it as Lithium Battery Meter and Battery Internal Resistance Meter.
SkyRC B6 mini charger is a high-performance, micro-processor controlled charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium High Volage(LiHV),Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and 60W charge power.

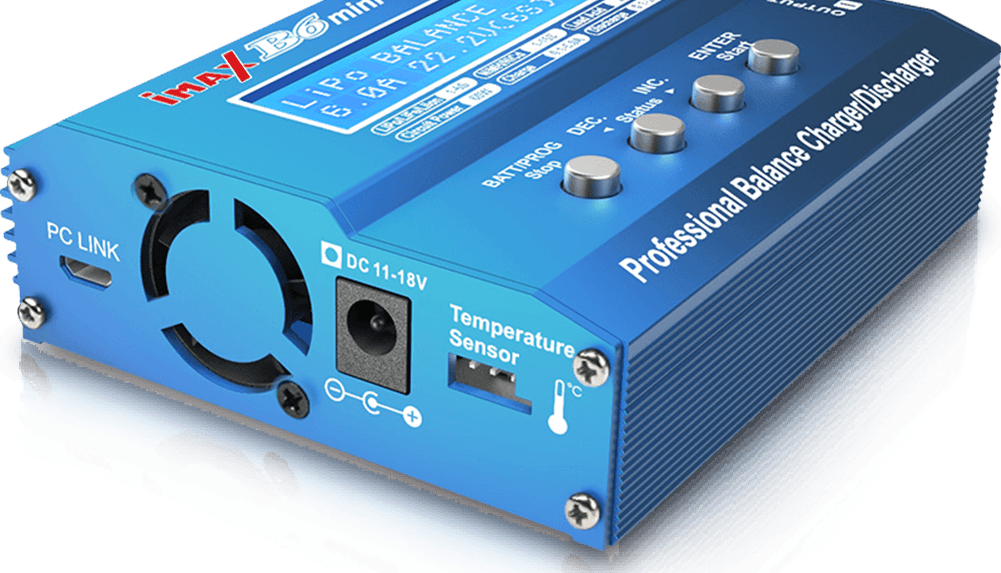

Built-in Cooling Fan
With Built-in cooling fan, its heat emission efficiency is higher.

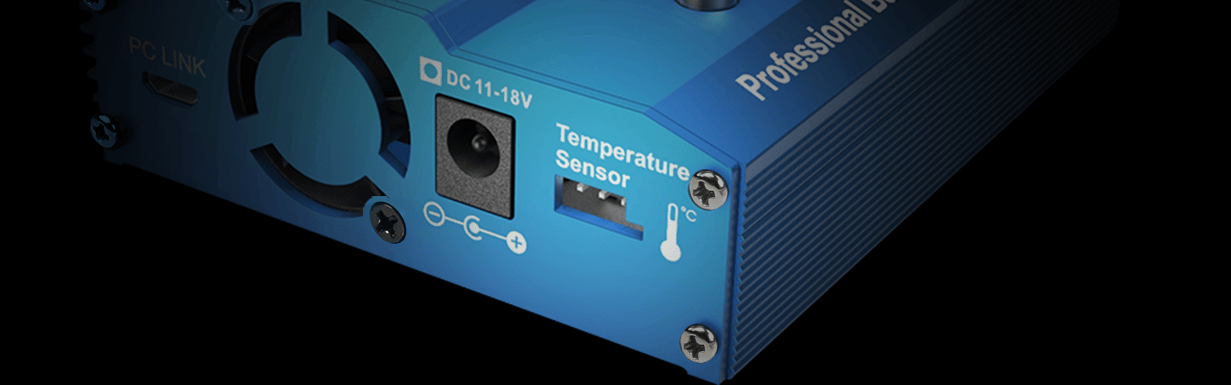

Temperature Probe Socket
If the temperature limit is reached, the process will be terminated.
*This function is available by connecting optional temperature probe, which is not included in the package.
*Temperature Probe SK-600040

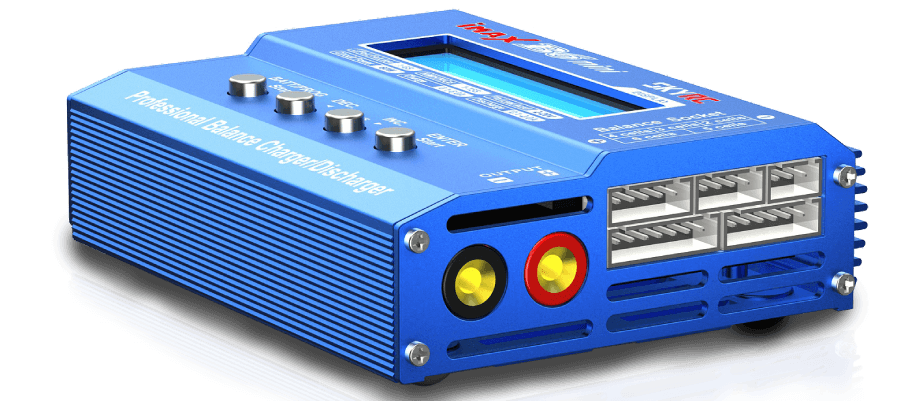

2-6S XH Plug-in Balance Sockets
LiHV Mode Available
With LiHV mode available, B6 mini is able to charge the 4.35V high voltage LiPo battery.

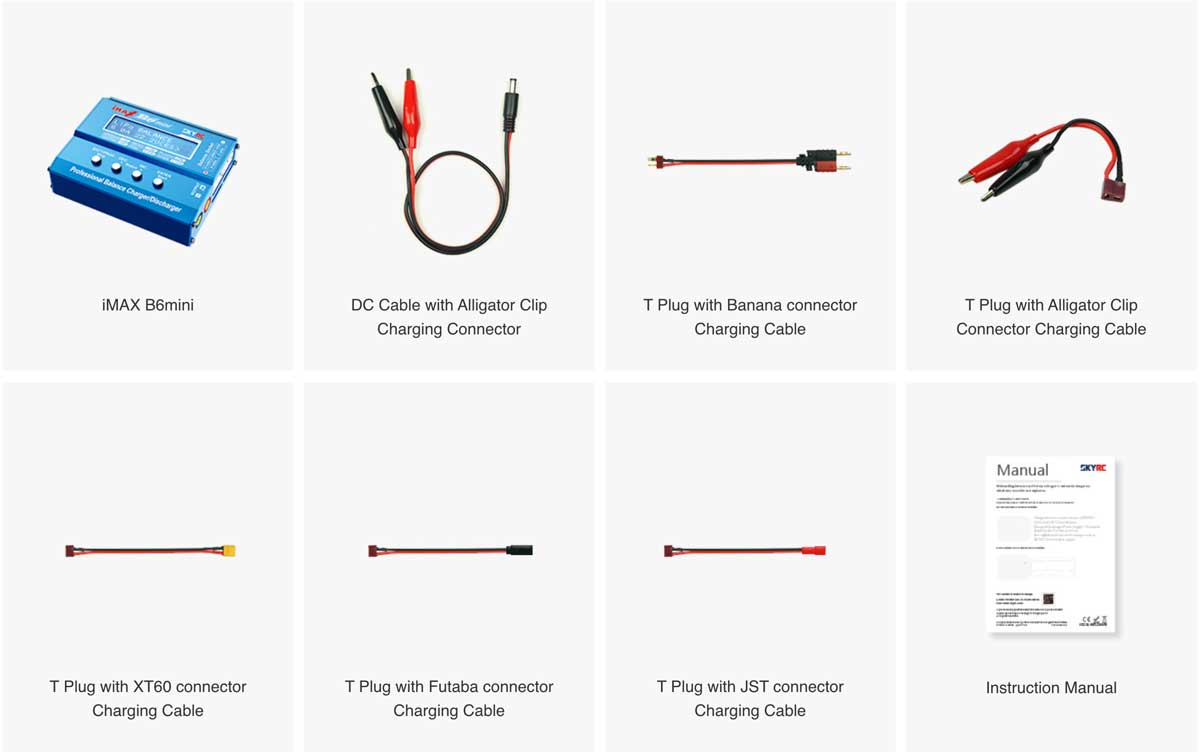

What’s in the Box

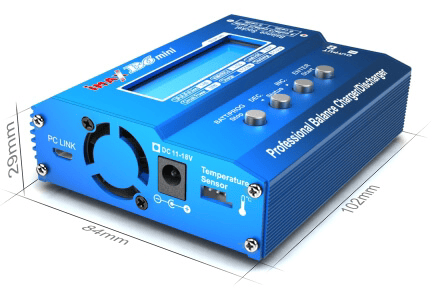

Size
Length : 84mm
Width : 102mm
Height : 29mm
Width : 102mm
Height : 29mm
