SkyRC PSU30A Charger

  • үнэ: 540,000 төг

Part number: SK-200013-08

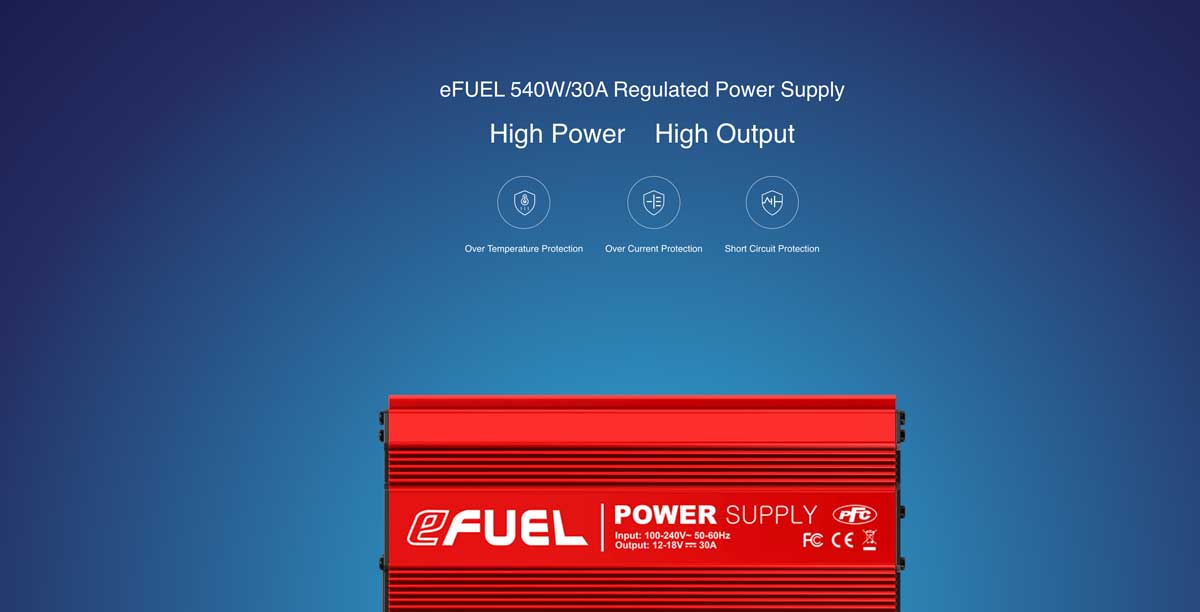

SkyRC eFUEL 540W/30A DC power supply is designed to power your DC power equipments. It’s capable of converting standard household 100-240V AC to 12-18V DC. Continuous current can be up to 30 amperes.

Active PFC
PFC( power factor correction)consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/30A regulated power supply, can provide higher power utilization.
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.

Specifications:
Input AC Frequency: 50-60Hz
LCD Display:
– Voltage Precision ±0.3V
– Current Precision ±0.5A
Cooling Method: Cooling Fan
Power Factor: >0.98
Operating Temperature: 0-40℃
Power Efficiency: 89%
Input Fuse: 10A Fuse
Voltage: 100-240V AC
Output Voltage: 12-18V DC±0.5V
Output Voltage Ripple: <900mV
Output Current: 30A±1A
Over Temperature Protection: < 65℃
Weight: 1.62kg
size: 218x139x59.5mm
